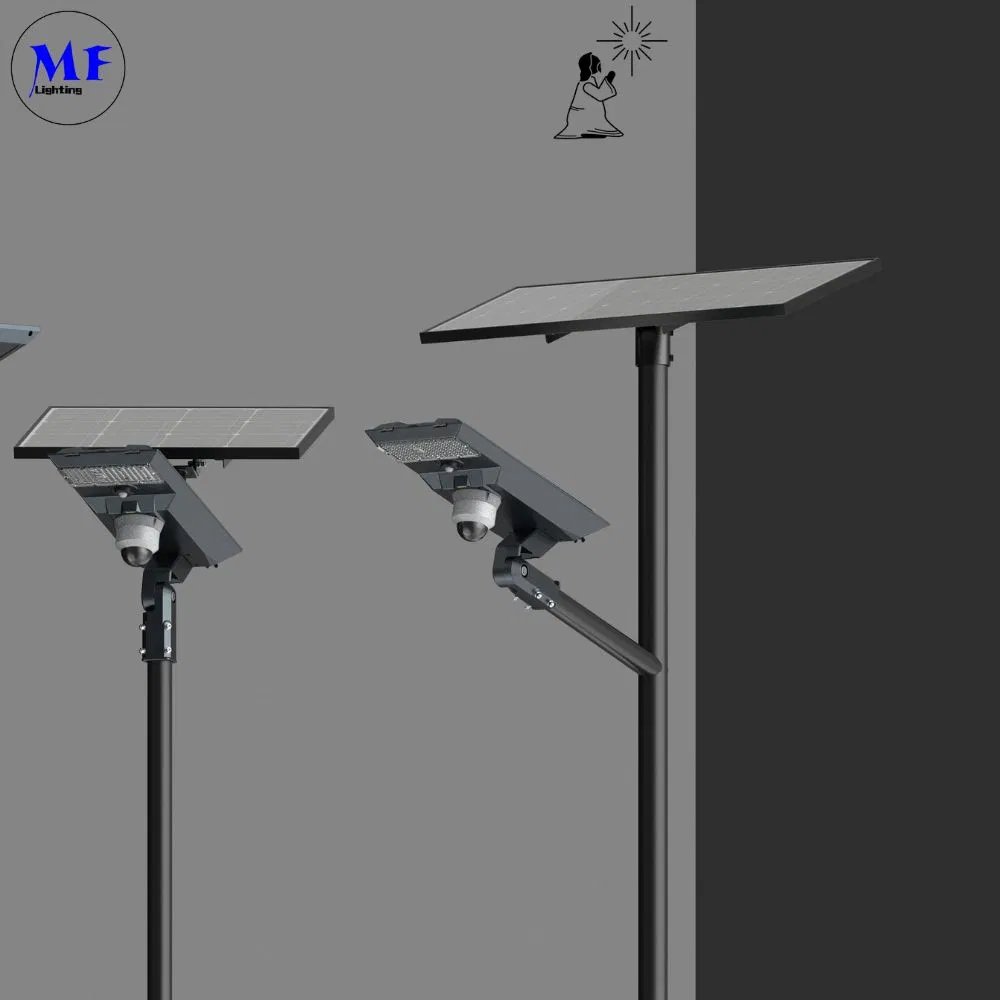

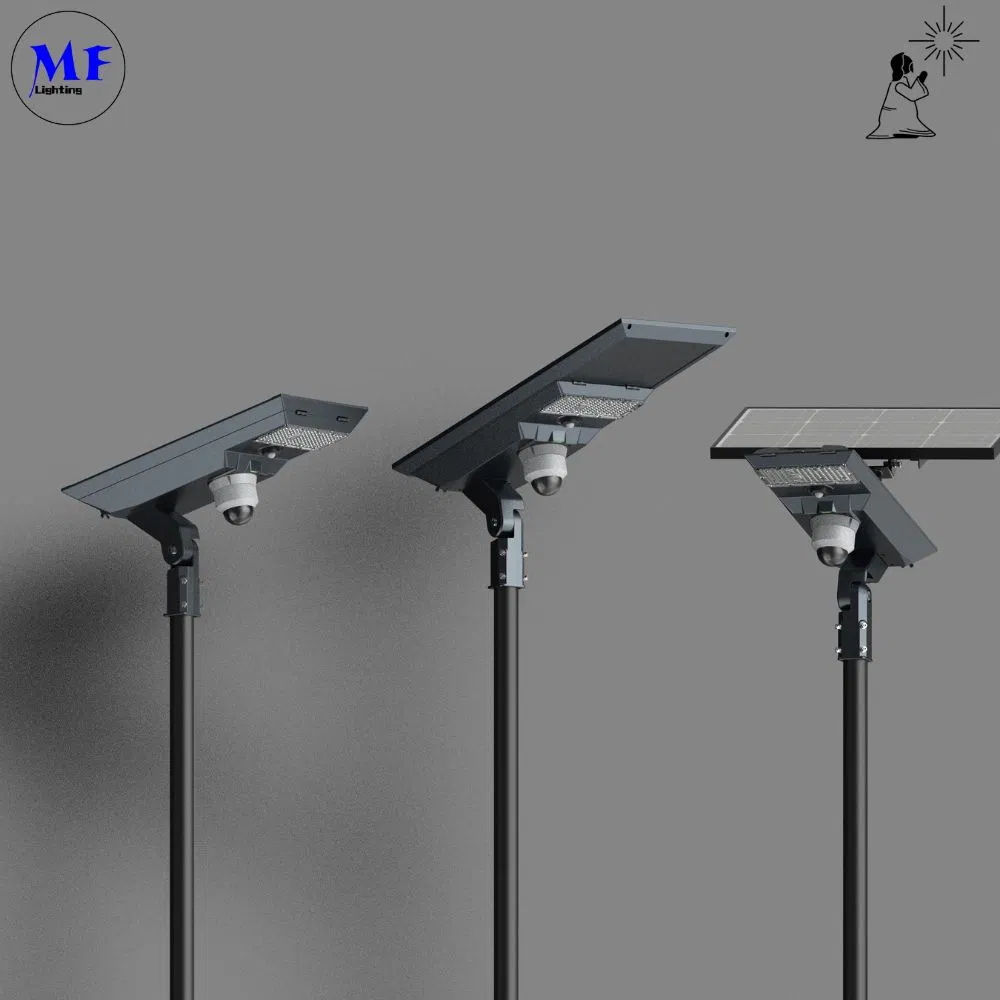

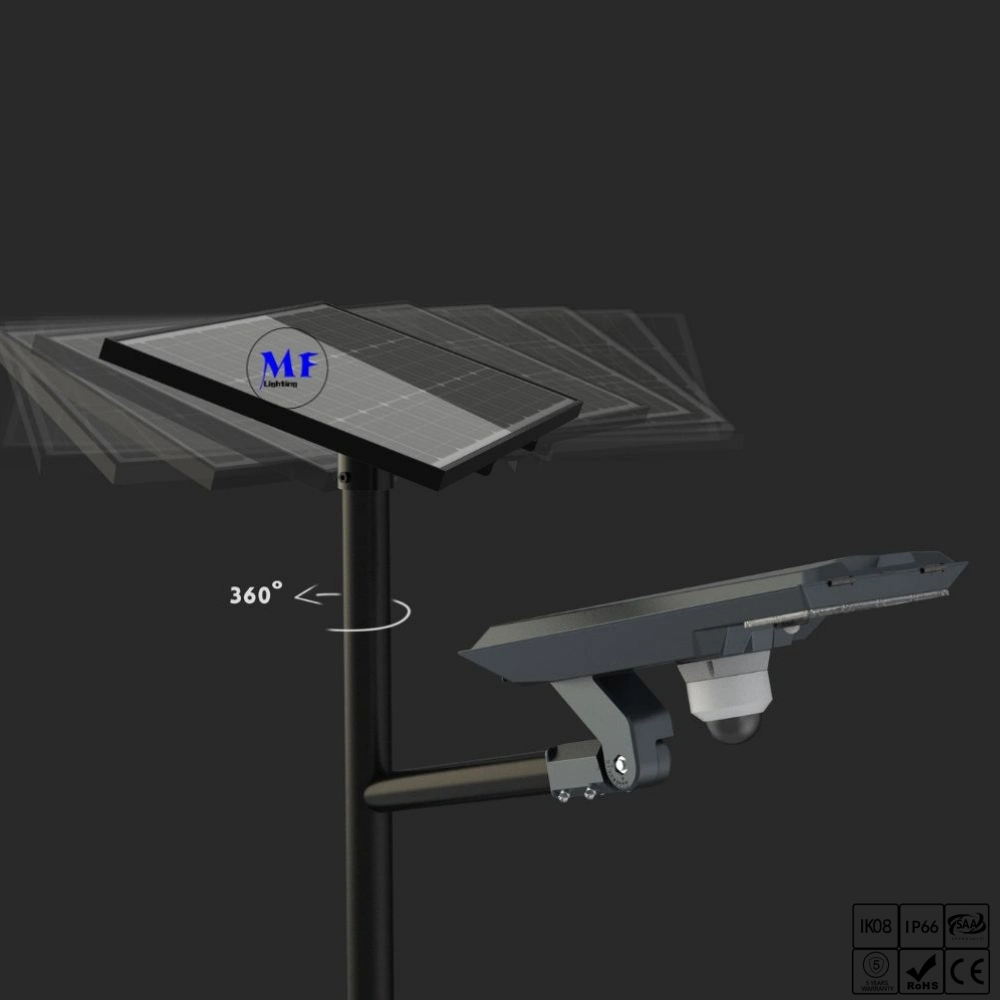

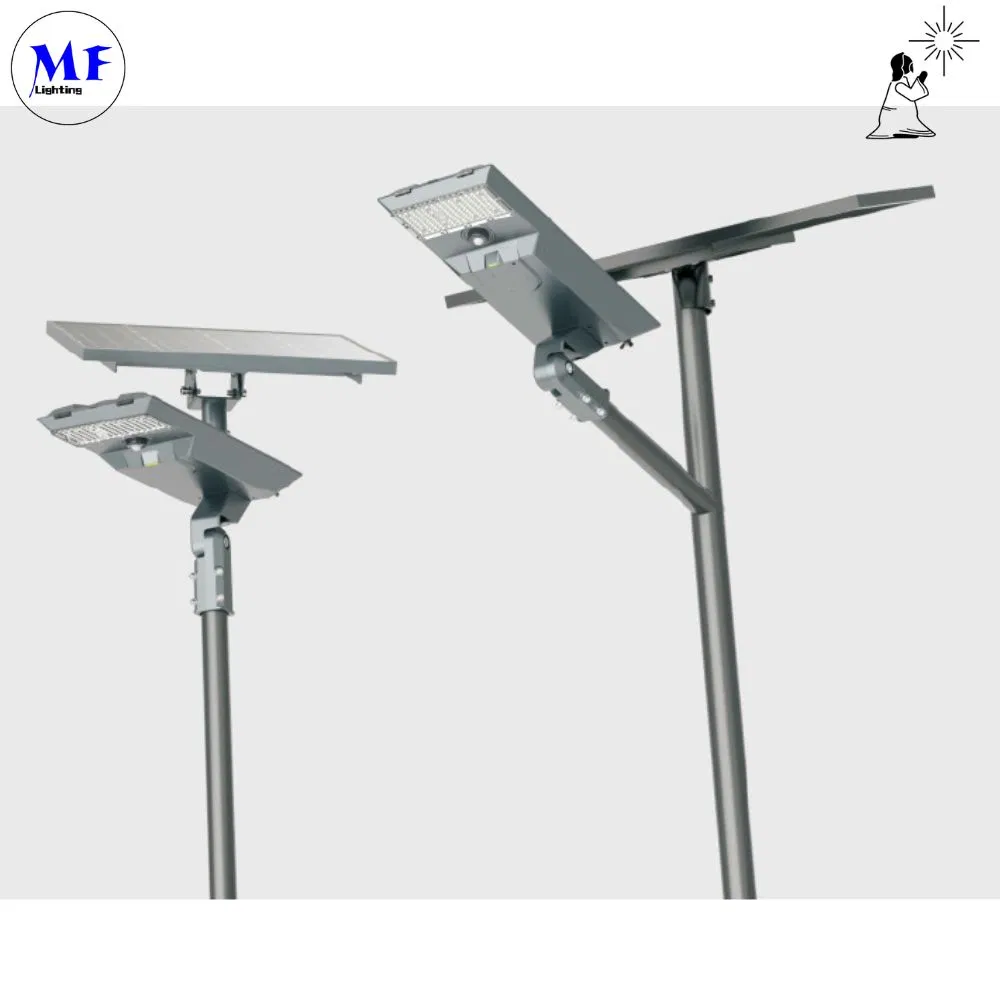

3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
1 / 5
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts
3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts

3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera Efficiency Panel for Airport Parking Lot Suburb Outskirts

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

3 Years Warranty Smart Control Dustproof IP66 Waterproof LED Solar Street Light with Camera efficiency panel for Airport parking lot suburb outskirts

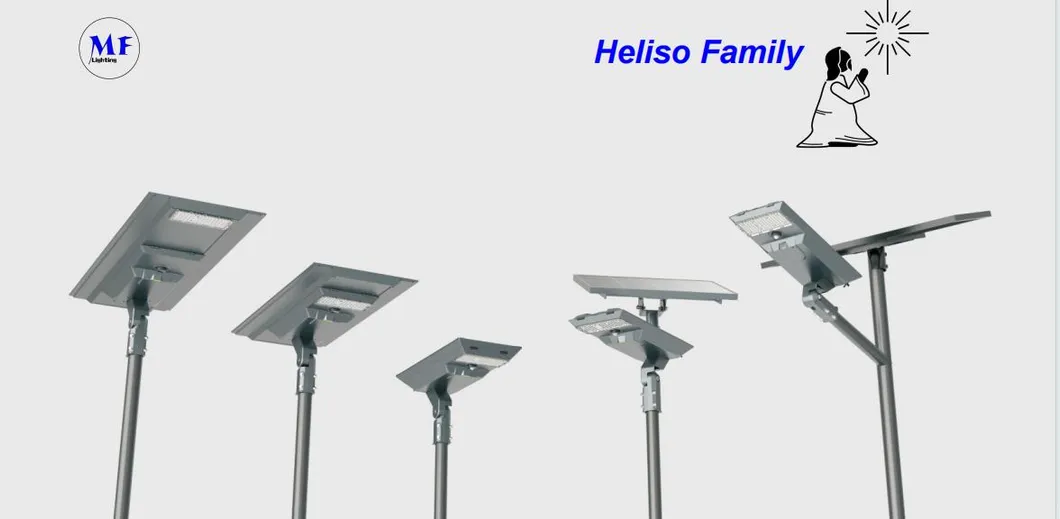

Solar Street Light Overview

Basic Information

Model NO.Solar Street light S5A
Light SourceLED Lamp
MaterialADC12 Aluminum+Al6063+PC
Color Temperature4000K-5700K
Power Range20W to 120W
Illumination Time12h
Battery TypeLiFePO4 Battery
IP RatingIP66
Luminous Efficiency100 Lm/W (Bespoke ≥175lm/W)
Installing Height4~8m

Key Features

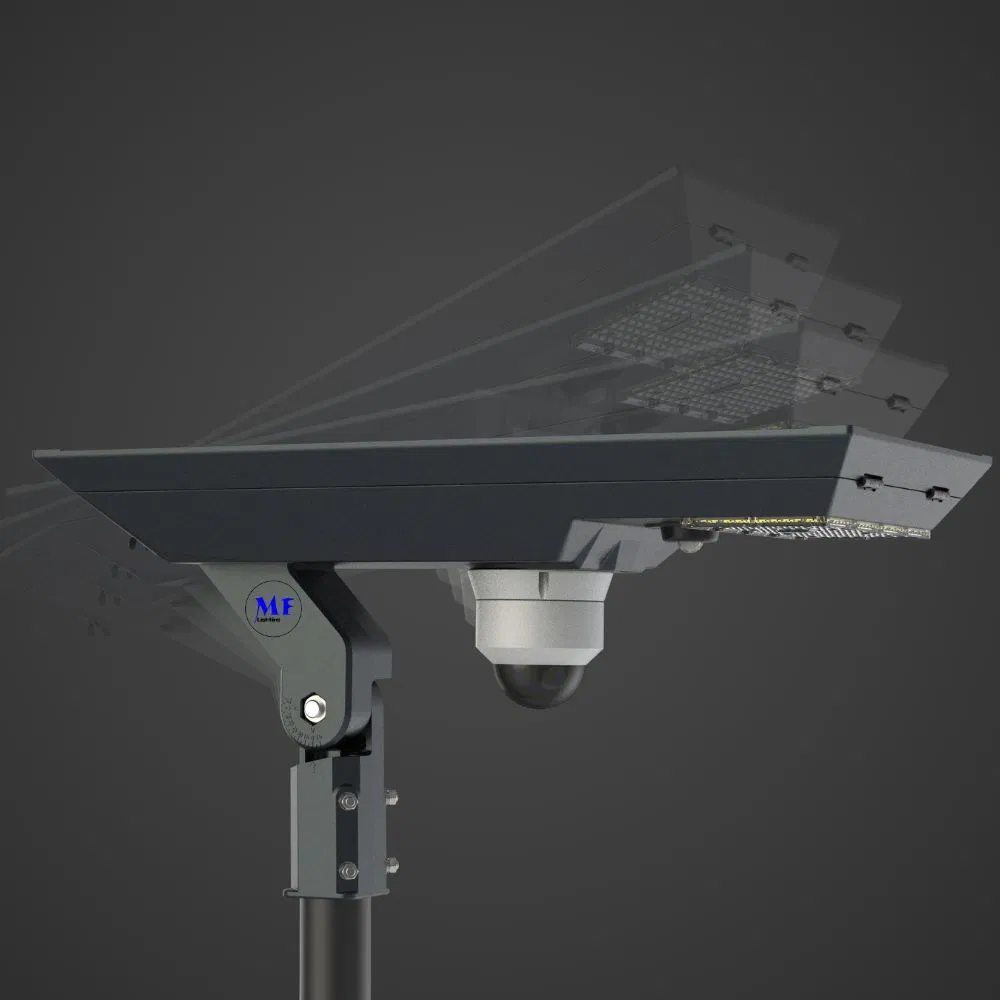

  • Integrated Die-casting cavityIntegrated molding structure with tool-free access for easier installation and maintenance. Adjustable angles for vertical or horizontal mounting.
  • New Generation LEDsHigh bright SMD combined with integrated lens increases lumen flux by 10% and reduces attenuation.
  • Secondary Optical DesignSpecially designed for solar street lighting to balance uniformity and illumination while reducing dispersion.
  • MPPT Charging TechnologyOptional MPPT controller improves energy utilization by 15% ~ 20% compared to ordinary controllers.
  • Advanced Battery SystemHigh energy density A-level batteries with temperature protection plates for longer cycling life.
  • High-Efficiency Solar PanelTop quality monocrystalline silicon with upgraded light transmittance and anti-aging performance.
  • IP66 WaterproofOverall waterproof design ensures durability in harsh weather conditions.

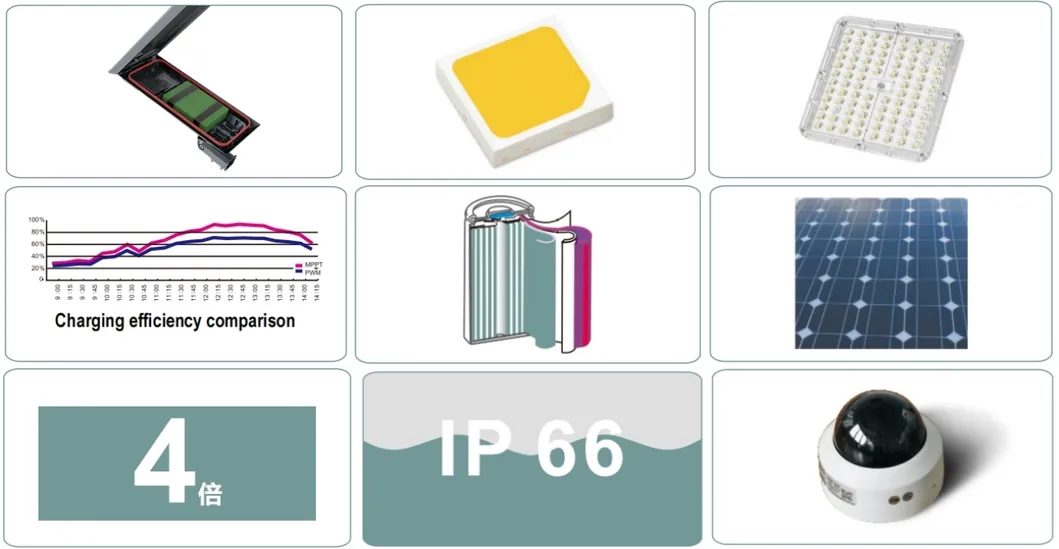

Features Illustration

Technical Specifications

Parameter Details
Color Temperature4000±300K / 5000±300K / 5700±300K
CRI≥70
Beam Angle155°/70° (TM3), 155°/75° (TM2)
MaterialADC12, AL6063, PC
Discharge Time12 hours/day, 3 days + 4 days low brightness
Control SystemPWM / MPPT / AC input
Working Temp-10°C ~ +50°C
Luminous Flux2000 ~ 12000 lm

LED Parameters

LED BrandCREE / Lu-mileds Power0.3 W
LED Size3.0x3.0x0.52 mm CRI≥70
Beam Angle120° LED Efficiency180-190 lm/W

Dimensions & Photometry

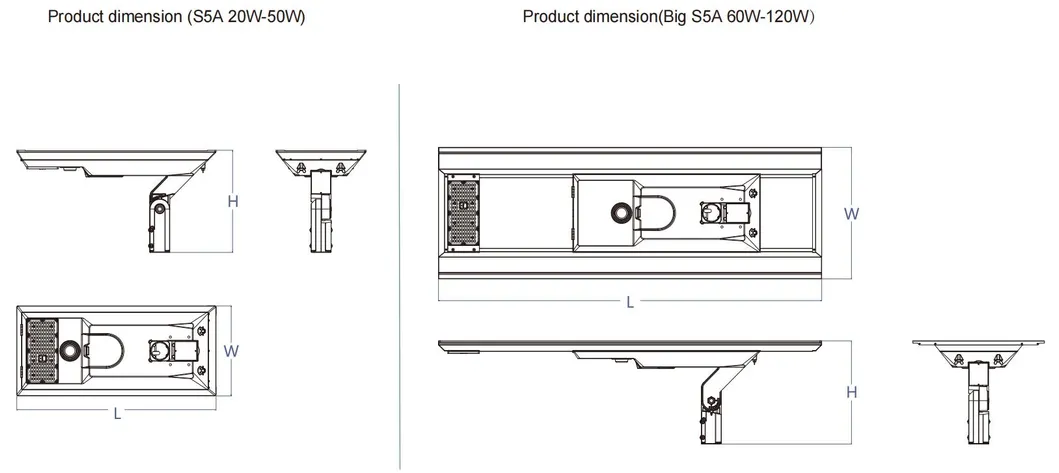

Dimensions

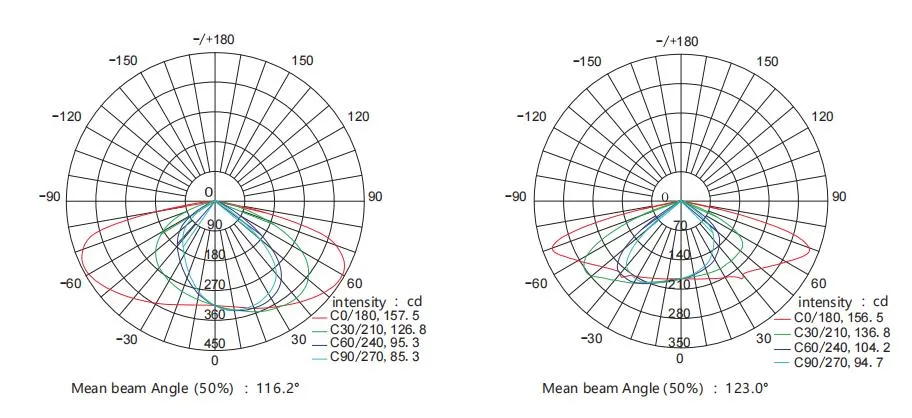

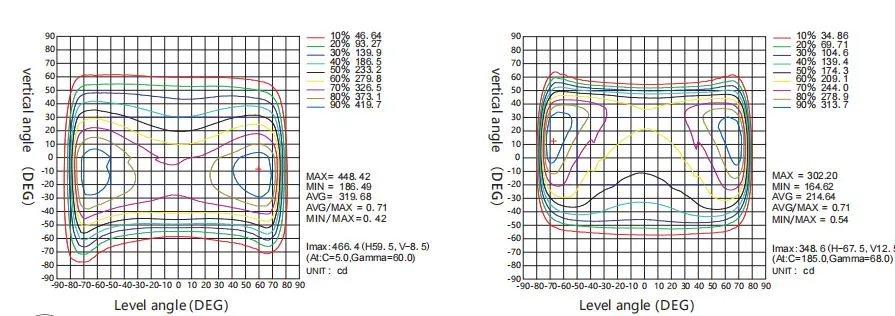

Photometry 1 Photometry 2

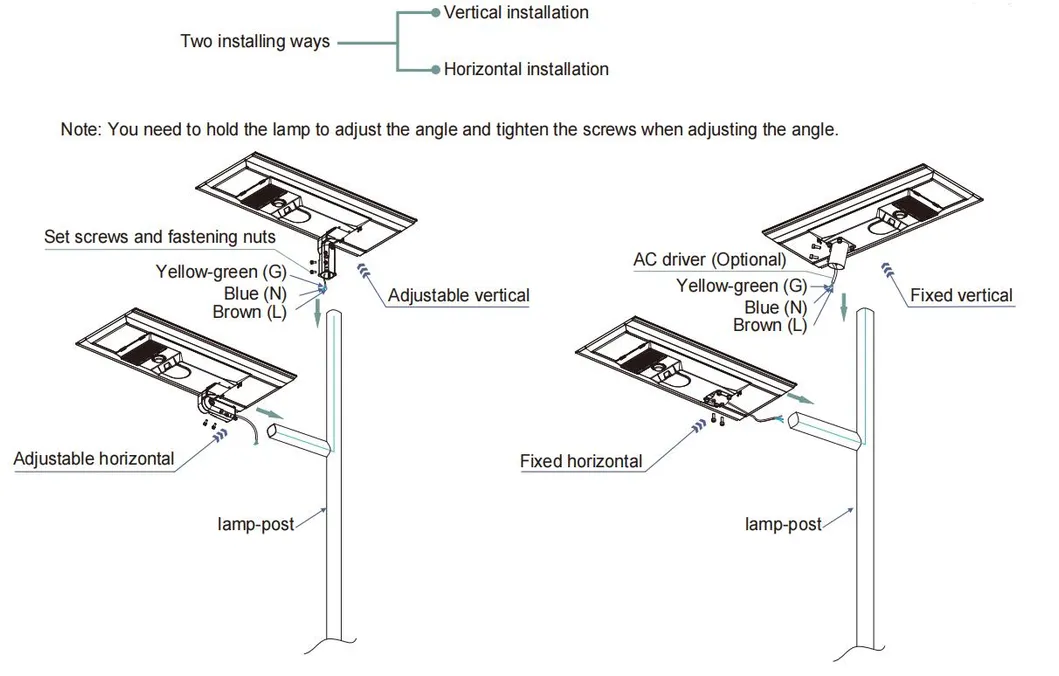

Installation Guide

Installation Method

Applications

💡 Ideal for: Parking lots, Urban/Village streets, Highways, Gardens, Schools, Squares, and Industrial zones.

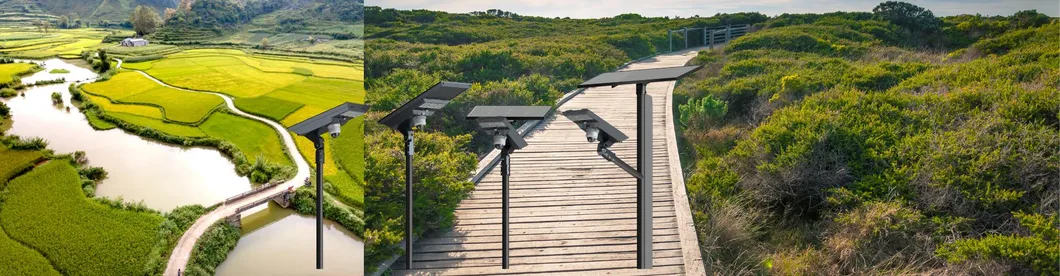

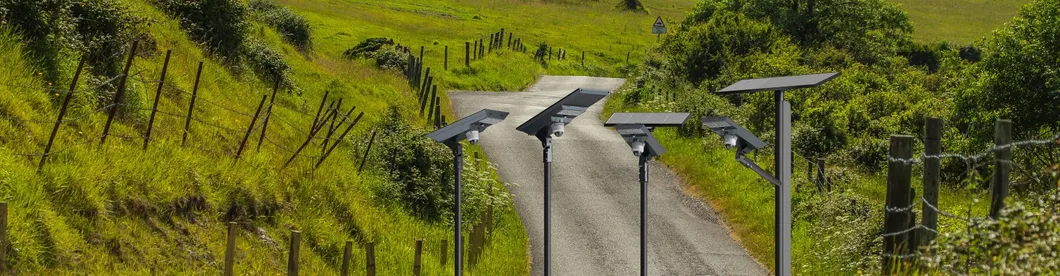

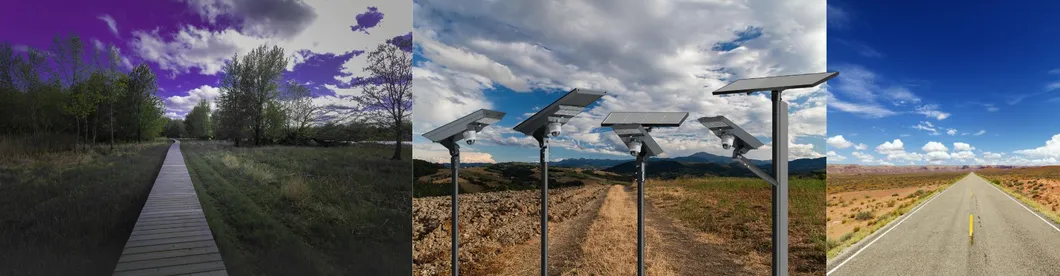

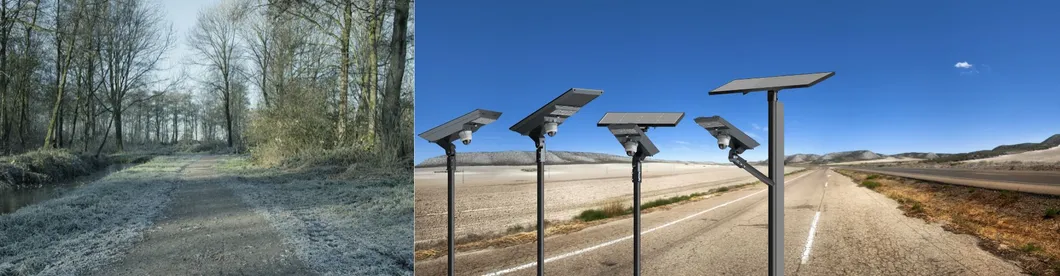

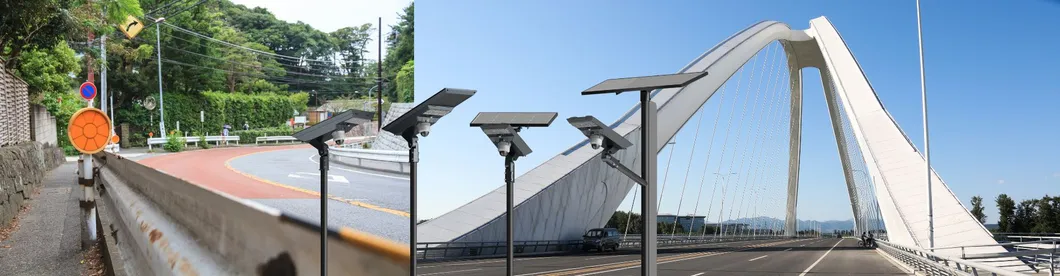

App 1 App 2 App 3

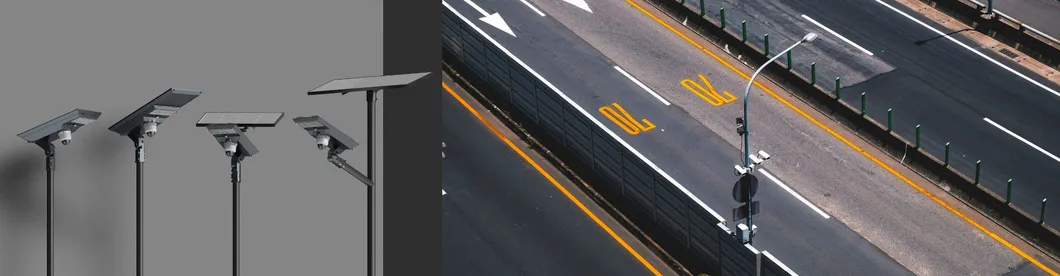

App 4 App 5 App 6

Packaging & Shipping

Type Power Packaging Dimension (mm) Weight
All-In-One20W-50W1040x415x14513.5 - 14.5 KG
Big All-In-One60W1040x150x55521.0 KG
Big All-In-One70W-80W1165x150x55522.0 - 23.0 KG
Big All-In-One90W-100W1405x150x55524.0 KG
Big All-In-One110W-120W1710x150x55531.0 - 32.0 KG

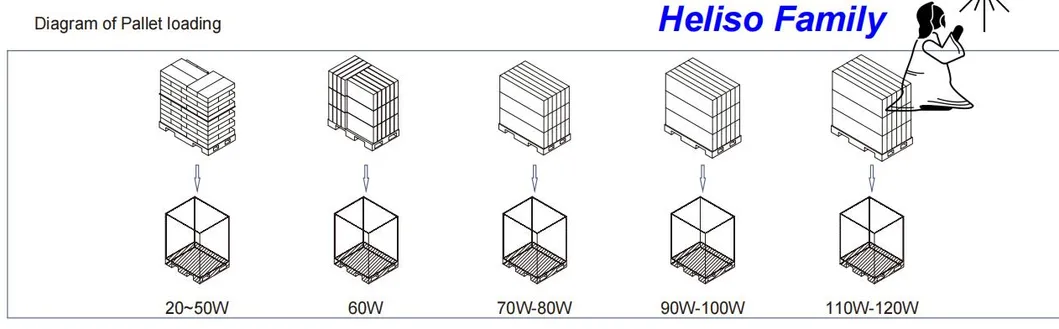

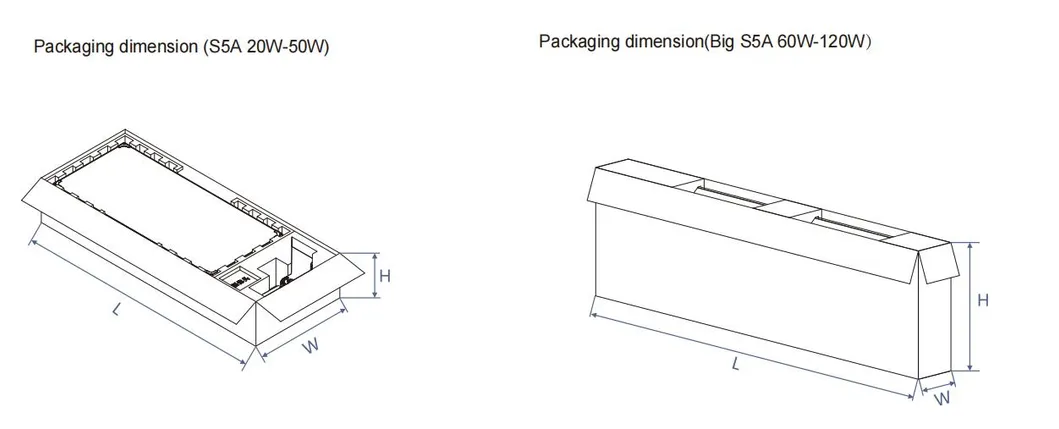

Package 1 Package 2

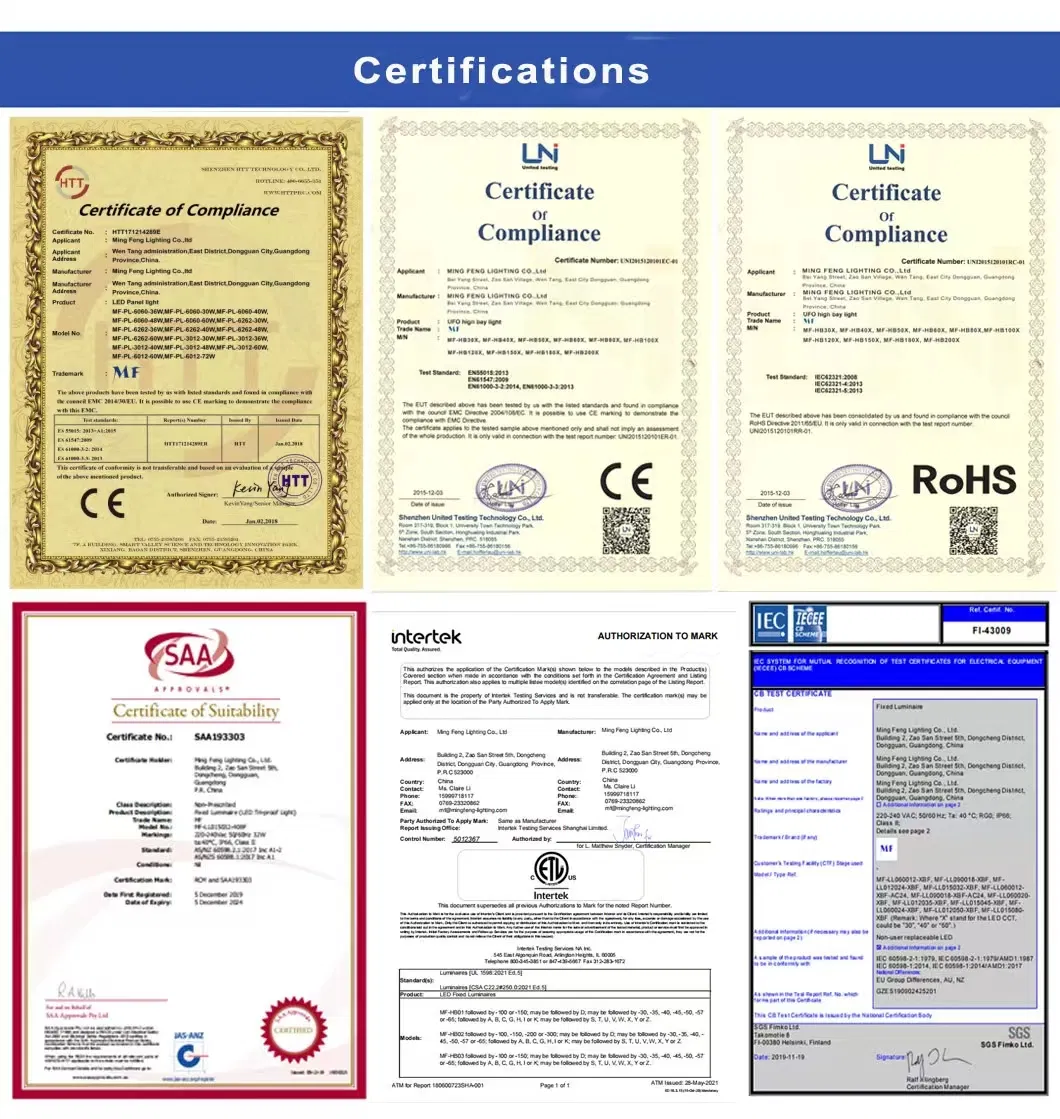

Packaging Detail Shipping

Frequently Asked Questions

Q1: What is the warranty for the solar street light? A1: This product comes with a 3-year warranty covering manufacturing defects and performance.
Q2: Can it withstand heavy rain and dust? A2: Yes, the light is rated IP66, making it completely dustproof and protected against powerful water jets.
Q3: How long does the battery last on a full charge? A3: It provides 12 hours of illumination per day and can sustain up to 3 days of full brightness plus 4 days of low brightness during rainy periods.
Q4: What smart control options are available? A4: It supports PIR motion sensors, microwave induction, time-based control, and remote management.
Q5: Is it suitable for highway installation? A5: Absolutely. With luminous flux up to 12,000 lm and secondary optical design, it is ideal for highways, urban streets, and large parking lots.
Q6: What is the recommended installation height? A6: Depending on the wattage chosen, the recommended height is between 4 to 8 meters.
