iBasic Specifications
Material
ABS / AL6063+Teijin PC
Power
≥30W (Options up to 1200W)
Battery Type
LiFePO4 Lithium Iron Phosphate

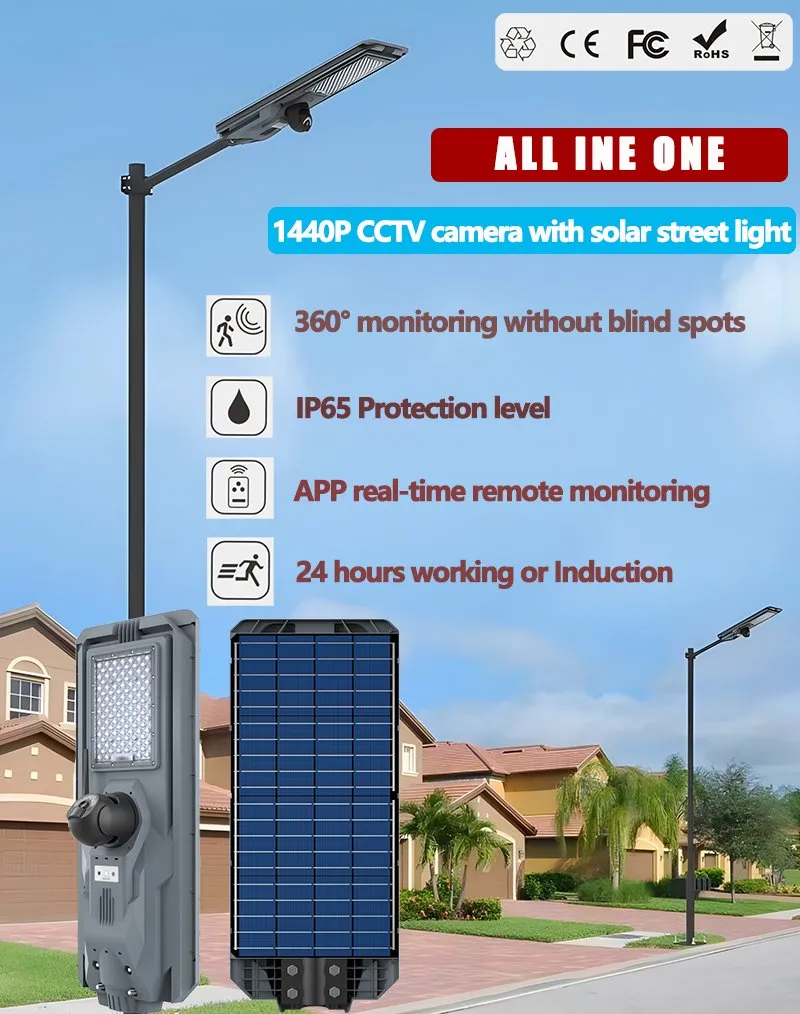

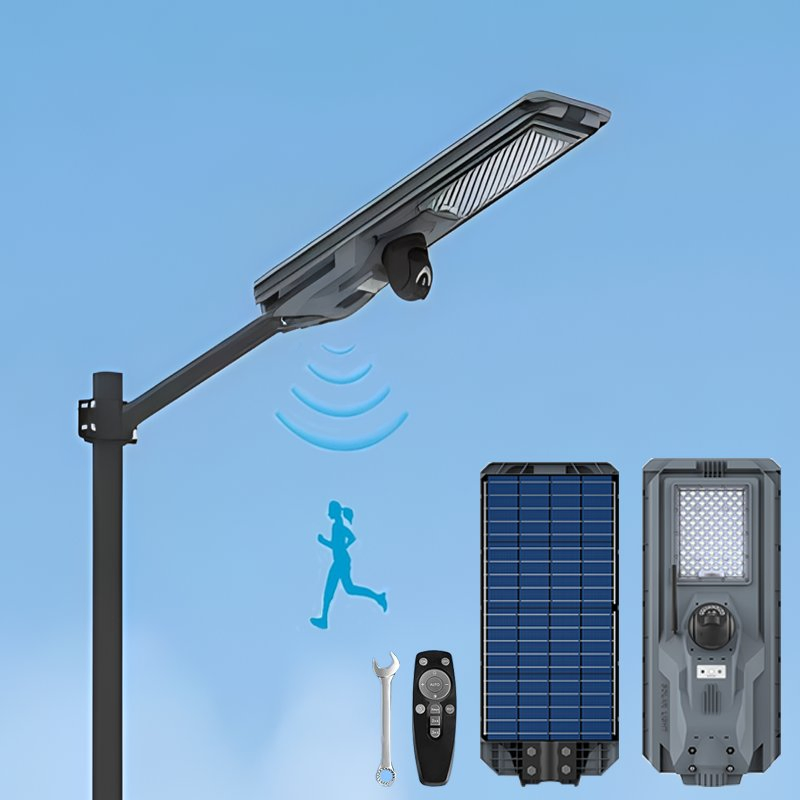

★Solar Street Light with Camera
4G Remote Monitoring | All Weather IP65 | Lithium Iron Phosphate Battery
This integrated solution combines high-efficiency monocrystalline solar panels with 1080P night vision 4G PTZ cameras for superior outdoor security.
A-level monocrystalline silicon 4V/28W panel
LiFePO4 Battery 36Ah for long lifecycle
104 pcs SMD3030 LEDs (Up to 4500lm)

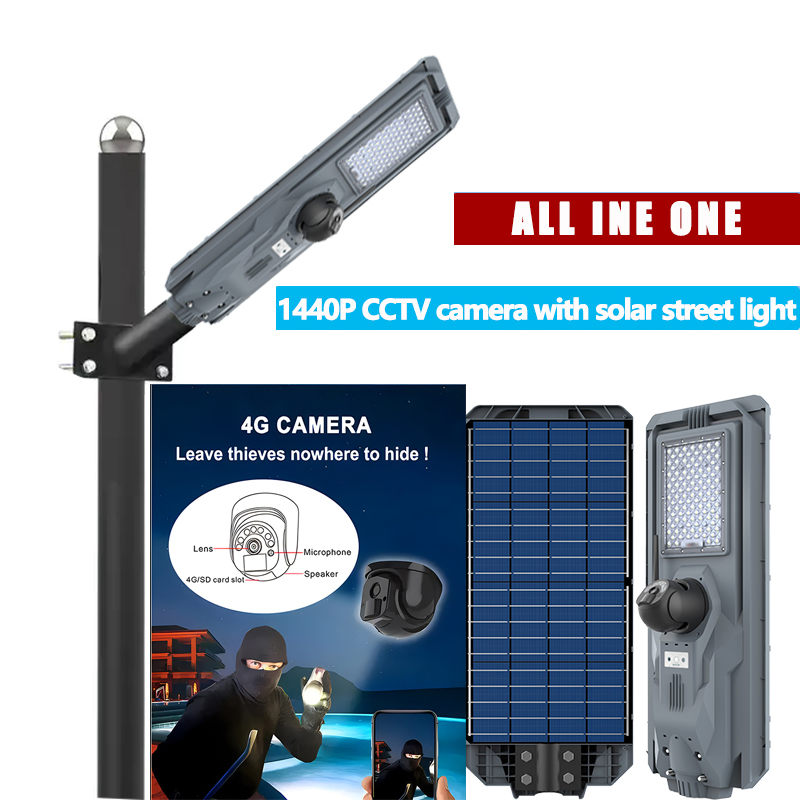

4MP 4G PTZ Camera with Humanoid Tracking
Two-way audio communication
Support cloud & TF card storage (Up to 256G)
Low power consumption 4G camera
Discharge time: 4-5 rainy & cloudy days
⚙Technical Specifications
| Camera Module |
| Sensor | 1/2.8″, 4.0 megapixel, progressive scan, CMOS |
| Day/Night Switch | ICR Infrared filter type |
| WDR / DNR | 120dB Digital WDR / 3D DNR |
| Pan & Tilt | Pan: 0°~263° (20°/s) | Tilt: 0°~90° (10°/s) |
| Video Compression | H.264 / H.265 |
| Solar & Lighting |
| Solar Panel | A-level monocrystalline silicon 4V/28W |
| Battery | LiFePO4 36Ah 5V |
| Lamp Size | 700 * 30 * 145mm |
| Installation Height | 4m (Pole size φ76mm) |
| Working Env. | -30°C ~ 60°C; Humidity ≤95% |

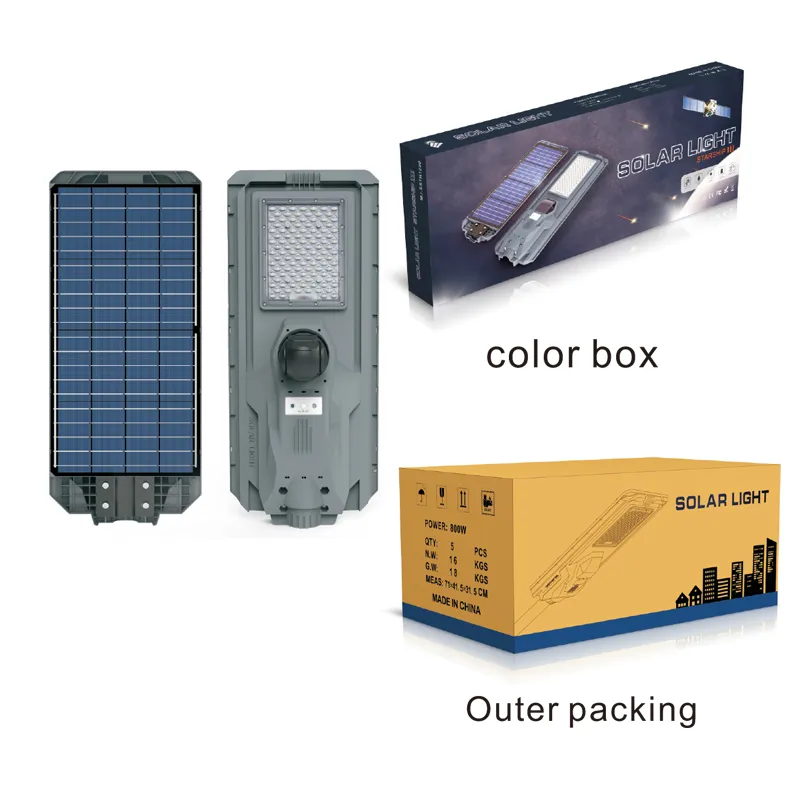

📦Packaging & Delivery
Carton Dimensions
720 × 200 × 340mm
Gross Weight
19kg - 25kg (Variable by config)
Protection
Environmentally friendly, efficient packaging
Frequently Asked Questions
1. How long does the solar street light operate during rainy days?
The system is equipped with a high-capacity LiFePO4 battery that supports 4-5 consecutive rainy or cloudy days of operation.
2. Can I monitor the camera remotely on my phone?
Yes, the 4G PTZ camera supports remote monitoring via the EseeCloud App, allowing you to view live footage and receive alerts anywhere.
3. What are the storage options for the security camera?
The camera supports both cloud storage and local TF card storage with a capacity of up to 256GB.
4. Is the light and camera system waterproof?

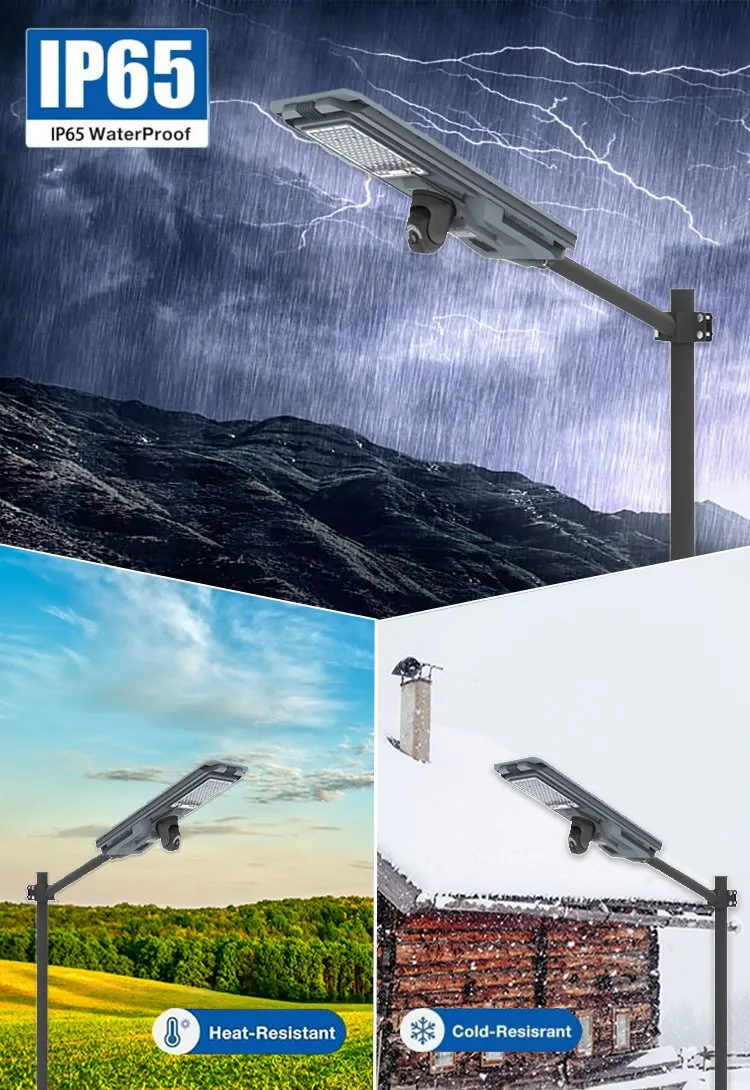

The entire unit is IP65 rated, making it fully protected against dust and low-pressure water jets from any direction, suitable for all-weather outdoor use.
5. Does the camera support night vision and motion tracking?
Yes, it features 1080P/4MP resolution with infrared night vision and advanced humanoid tracking to enhance security detection.
6. What is the typical installation height for this model?
The recommended installation height is approximately 4 meters using a φ76mm pole for optimal lighting coverage and camera field of view.
