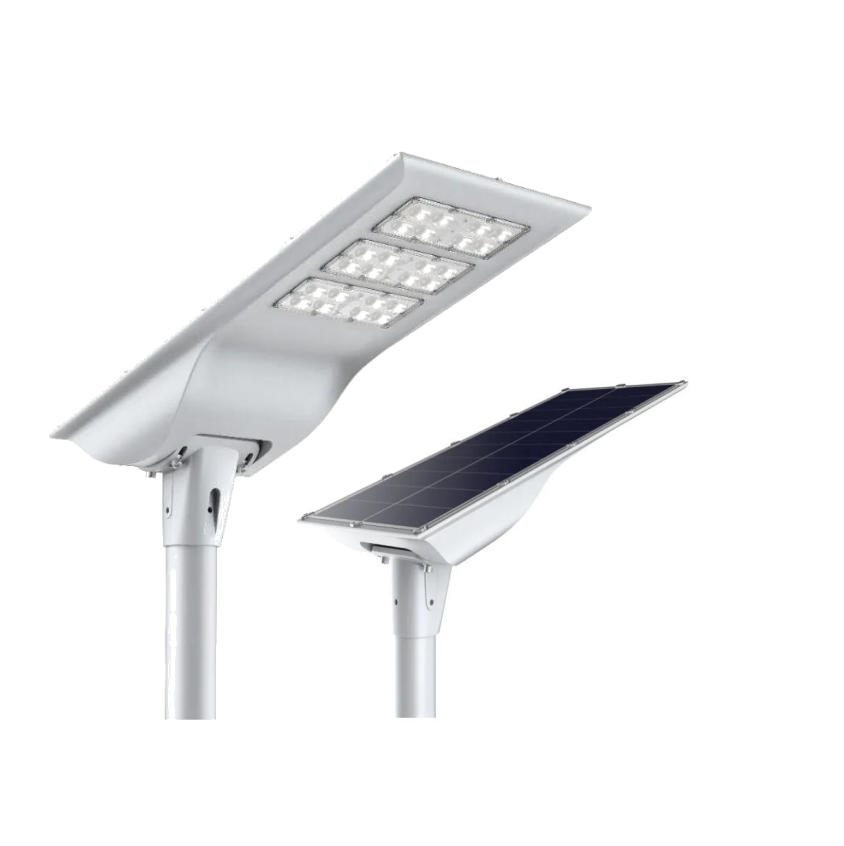

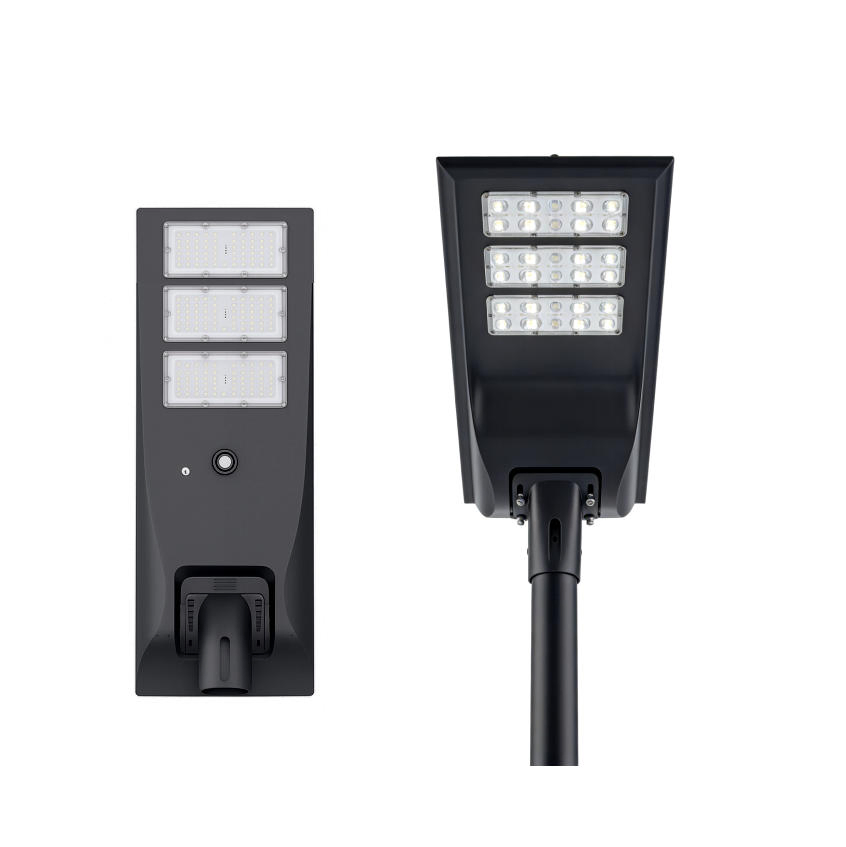

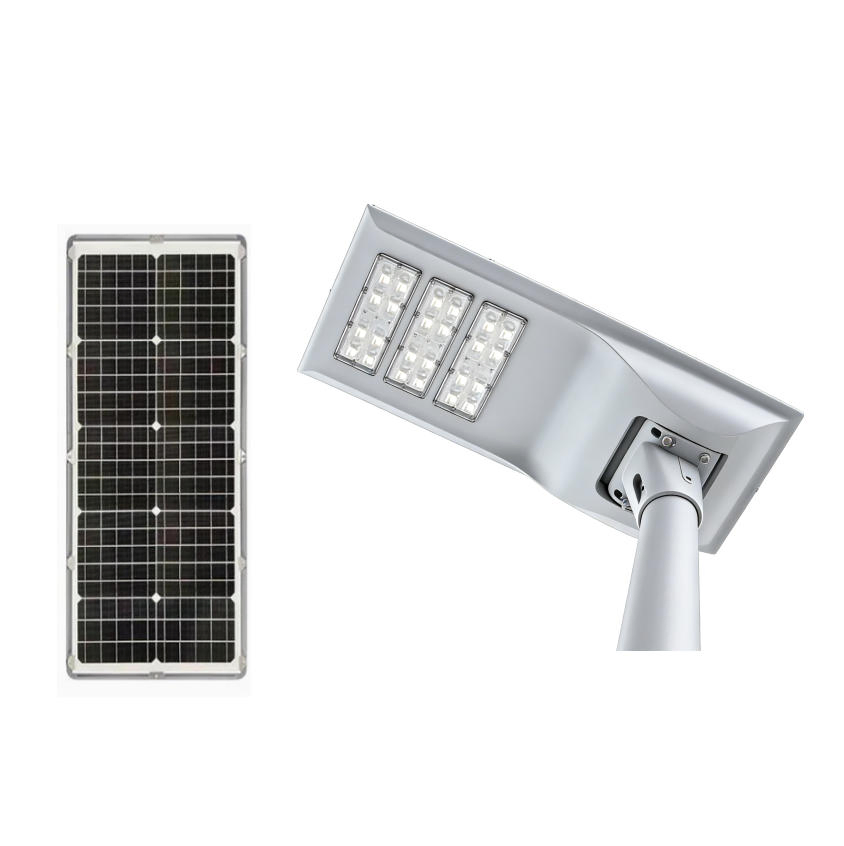

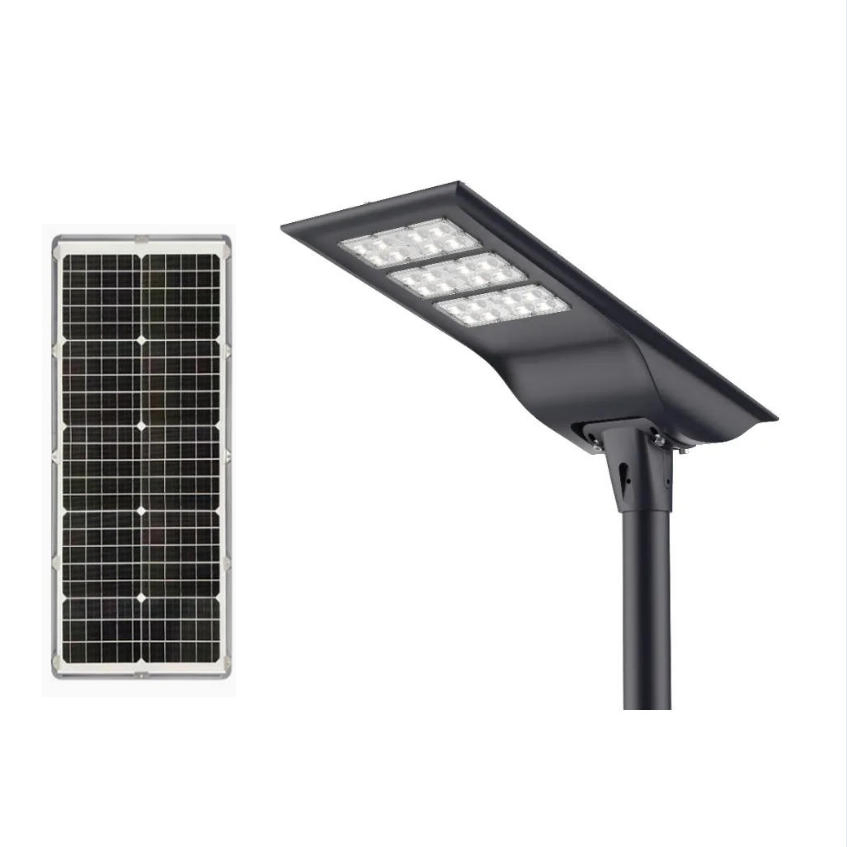

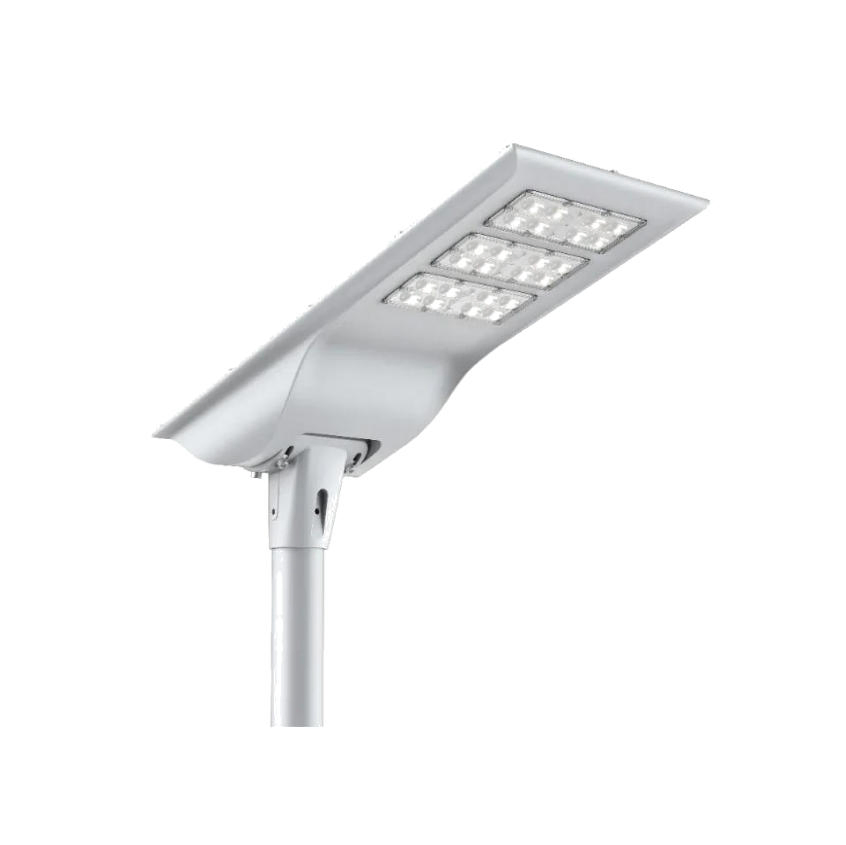

60W Commercial Lighting off-Grid LED Solar Street Light All in One Design for Road Lighting

Still deciding? Get samples of $ !
Order Sample

Product Description

📋
Basic Specifications
Model NO.
SSTL-027-60
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Power
60W
Color Temp
Cool/Warm/Pure White
Illumination Time
12h
Battery Type
LiFePO4 192wh
Charging Time
6-8 Hours
IP Rating
IP65 / IP66
Solar Panel
50W Mono
LED Source
SMD3030 × 150PCS
Install Height
6-7m
💡
Product Description
Solar Street Light
Commercial Lighting

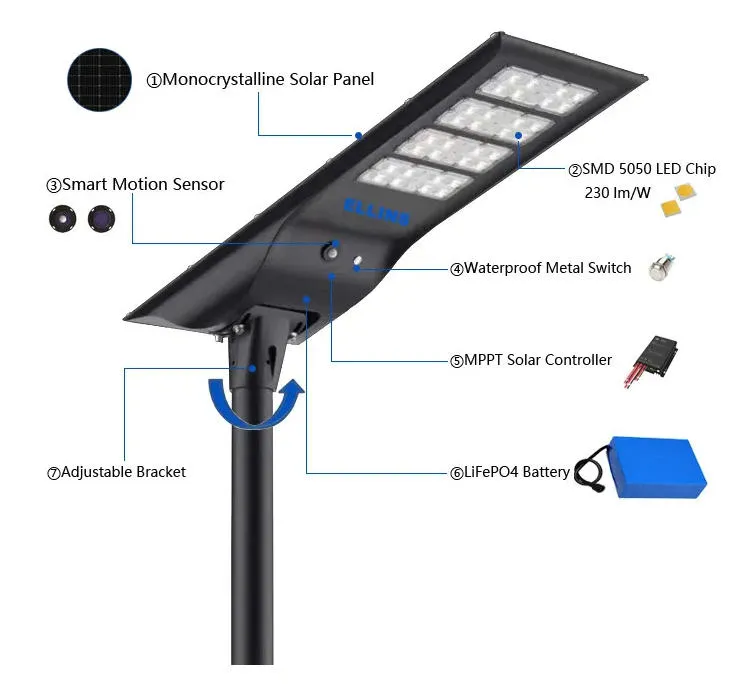

All in one design

All-in-one solar street light 027 series

The All in one solar street light combines modern design with advanced photovoltaic technology. It integrates the luminaire, monocrystalline solar panel, and A1-grade LiFePO4 battery into a single, cable-free housing that simplifies installation and enhances aesthetic appeal. Crafted from die-cast aluminum with a nano-coated finish, it provides superior corrosion resistance and dependable performance in harsh outdoor environments.

Delivering over 160 lm/W, its high-lumen LEDs project a precision bat-wing light distribution for uniform, comfortable illumination with minimal glare. The smart MPPT controller optimizes solar energy capture—even on cloudy days—while automatically adjusting brightness according to motion, ambient light, and time schedules.

🚀
Features & Advantages
  • Integrated Design: Streamlined housing ensures tool-free installation.
  • Durable Construction: 6063-T5 aluminum alloy for high strength.
  • IP66 Protection: Fully sealed against dust and high-pressure water.
  • Efficient Charging: High-performance monocrystalline solar panels.
  • Long-Life Battery: LiFePO4 battery ensures over 2000-3000 cycles.
  • Smart Control: Microwave radar induction and intelligent dimming.
  • Thermal Management: Die-cast body acts as a high-efficiency heatsink.
  • Quick Setup: Single-bolt mounting and plug-and-play design.

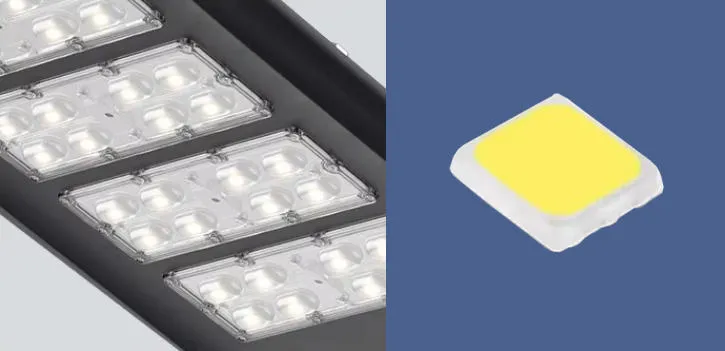

LED chips

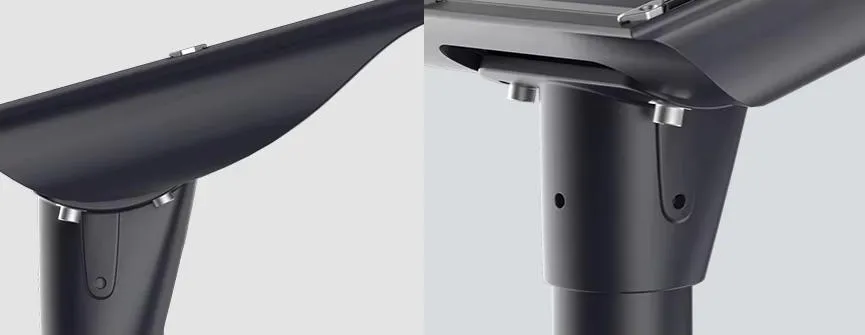

Robust housing

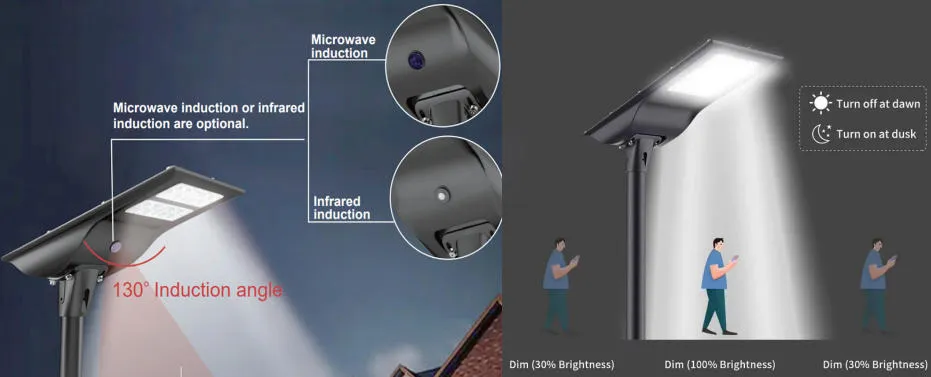

Lighting modes
📊
Technical Parameters
Model ZD-SSTL-027-040 ZD-SSTL-027-060 ZD-SSTL-027-080
Power40W60W80W
LED Quantity3030SMD×100PCS3030SMD×150PCS3030SMD×200PCS
Solar Panel40W Mono50W Mono65W Mono
Battery Capacity116WH 3.2V192WH 3.2V240WH 3.2V
Discharge TimeFull power: >14H | Induction mode: 48H
Product Size697×361×209mm846×361×209mm1096×361×209mm
Install Height5-6M6-7M7-8M
🏭
Manufacturing & Quality

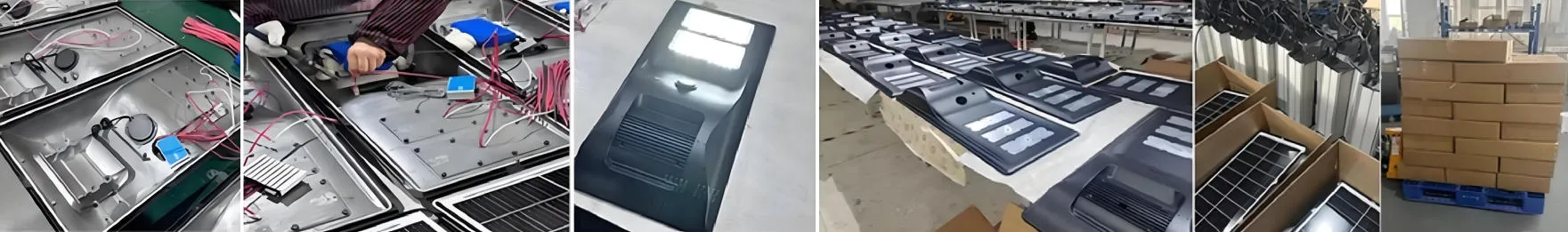

Manufacturing process

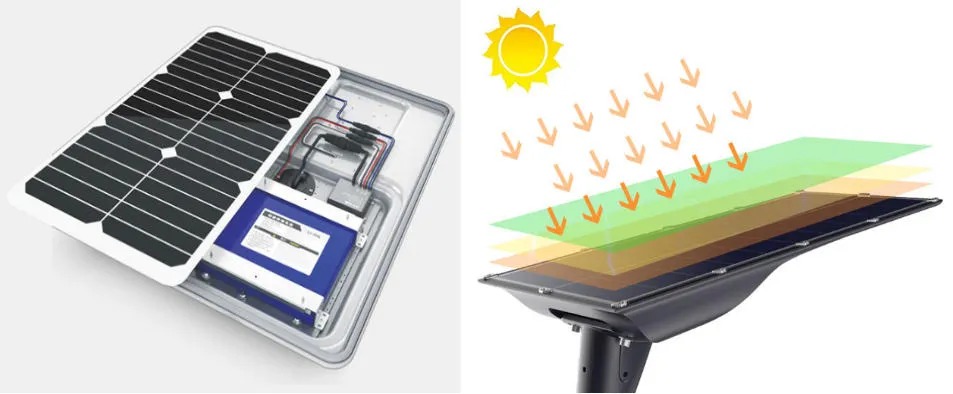

Solar panel

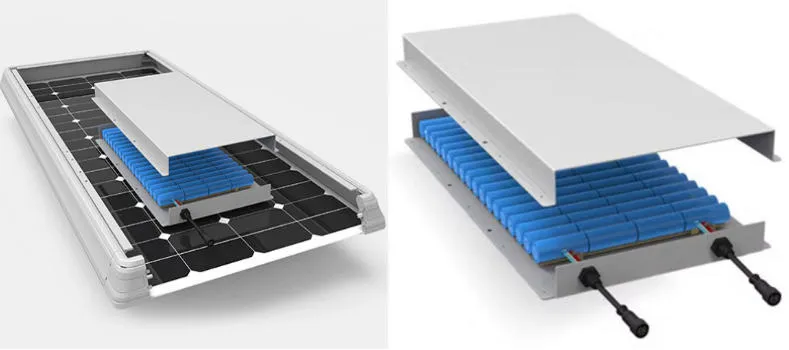

Battery
Frequently Asked Questions
What is an all in one solar street light?
It is an integrated lighting system that combines the solar panel, lithium battery, charge controller, and LED source into a single compact unit for easy installation.
How many hours can it work at night?
Depending on battery capacity and sunlight, it can provide 8–24 hours of continuous lighting after a full charge.
Can it work during rainy or cloudy days?
Yes. The built-in lithium battery is designed to support 2–5 consecutive rainy or cloudy days depending on the specific model configuration.
What installation height is recommended?
Recommended installation height usually ranges from 5 to 12 meters, depending on wattage and road width requirements.
Does it support motion sensors?
Yes, most models support PIR/Microwave motion sensors and intelligent dimming to maximize energy efficiency.
What materials are used for the housing?
The housing is typically made of high-grade die-cast aluminum with anti-corrosion coating, ideal for harsh outdoor environments.
