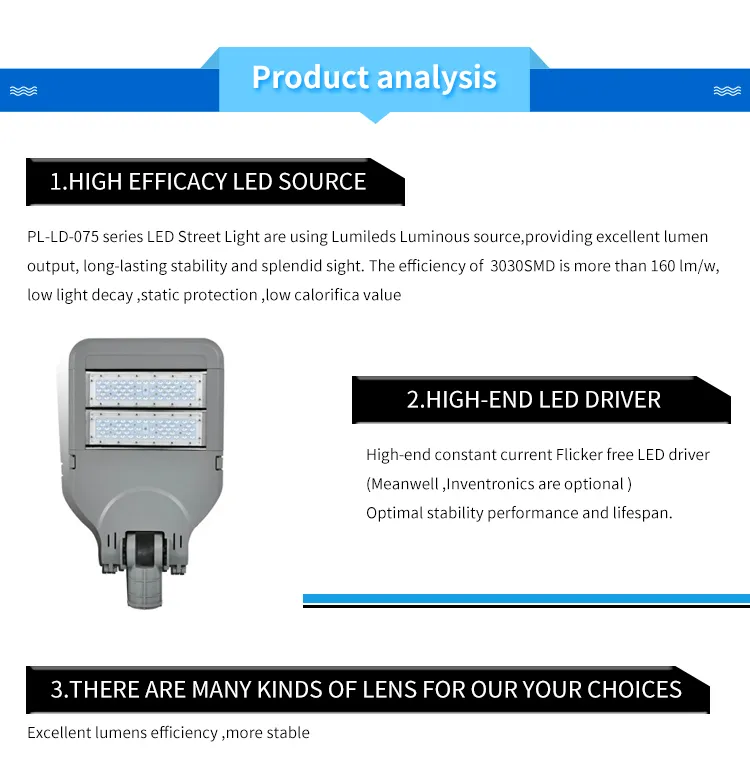

High Efficiency: Using Lumileds 3030SMD LED modules, luminous efficiency can reach more than 130LM/W.

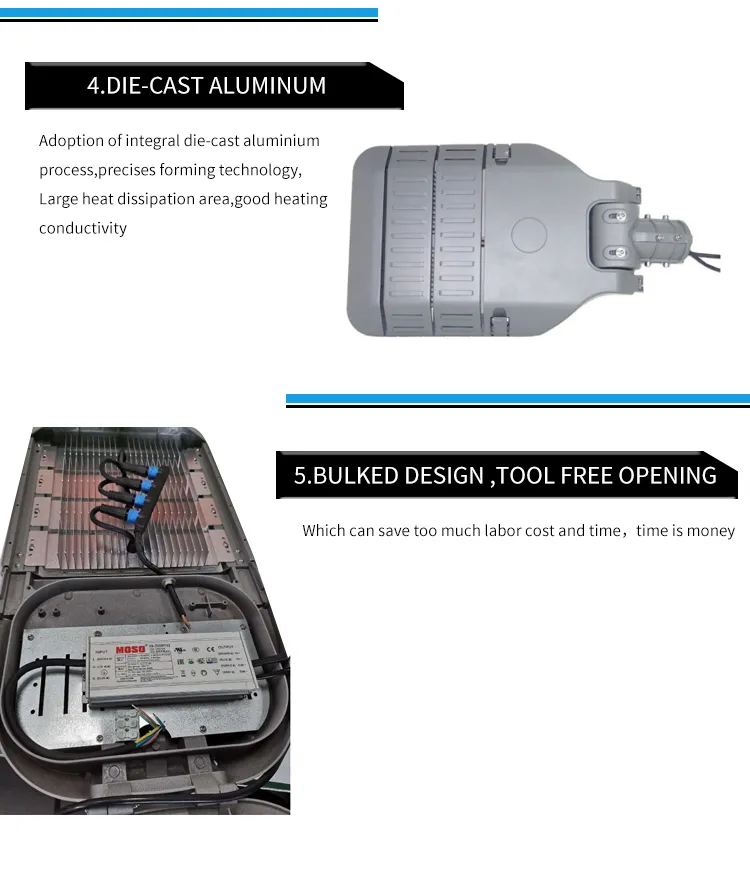

Easy Maintenance: Driver box can be opened without tools, ensuring simple on-site maintenance.
Standard Fit: Installation filling diameter is 60mm, compatible with standard mounting poles.
Durable Design: Beautiful appearance with unique IP66 waterproof and IK09 impact resistance.

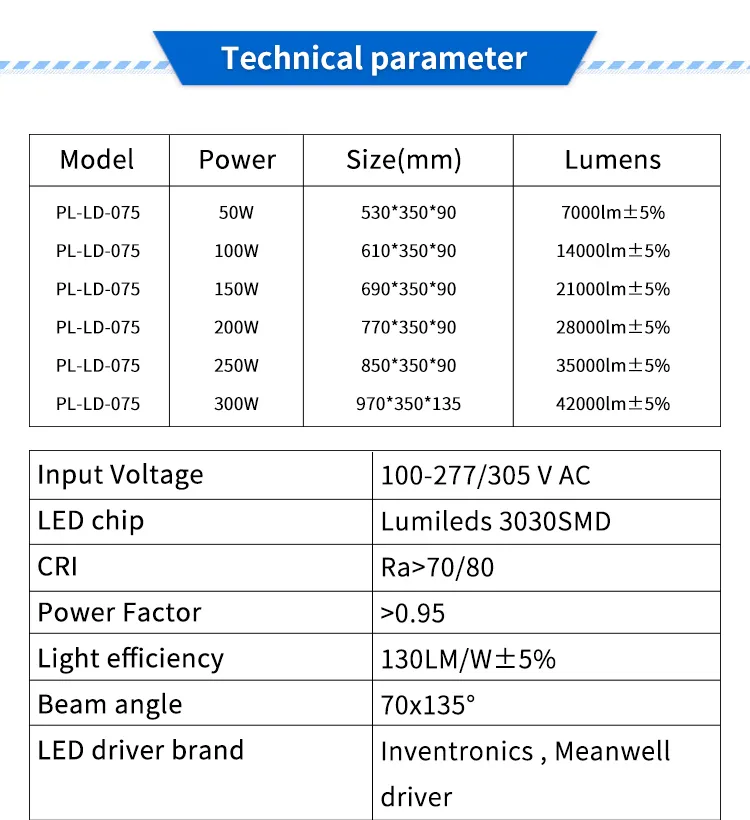

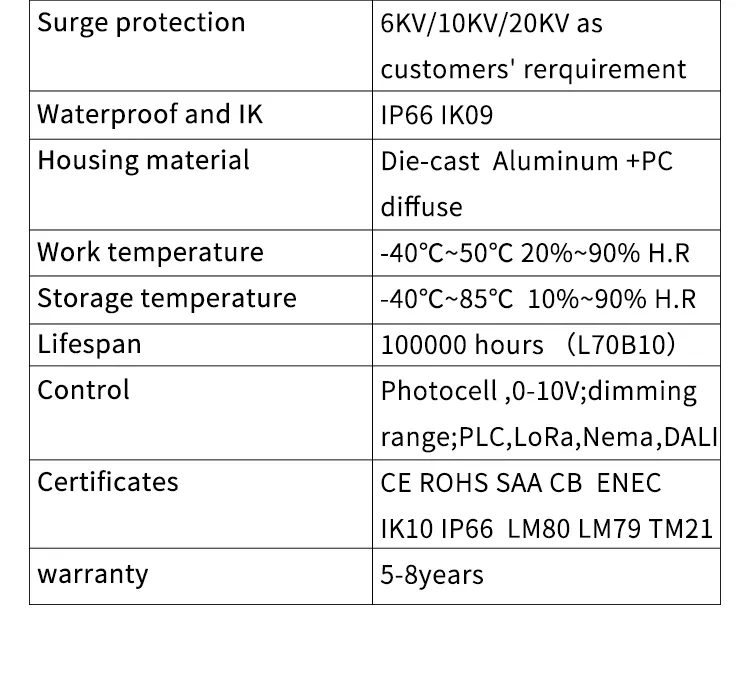

Technical Specifications
Specifications
50W
100W
150W
200W
250W
300W
Model
PL-LD-075 Series
Input Voltage
100-277V / 305V AC

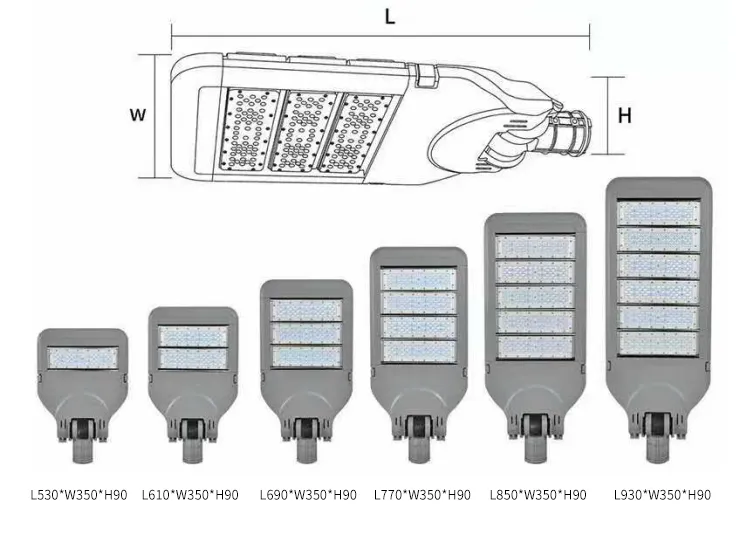

Size (mm)
530*350*90
610*350*90
690*350*90
770*350*90
850*350*90
970*350*135
Lumens (±5%)
7000lm
14000lm
21000lm
28000lm
35000lm
42000lm
LED Chip
Lumileds 3030SMD
CRI
Ra > 70/80
Light Efficiency
130 LM/W ±5%
Driver Brand
Inventronics / Meanwell Driver
Lifespan
50,000 Hours
Warranty
5-8 Years

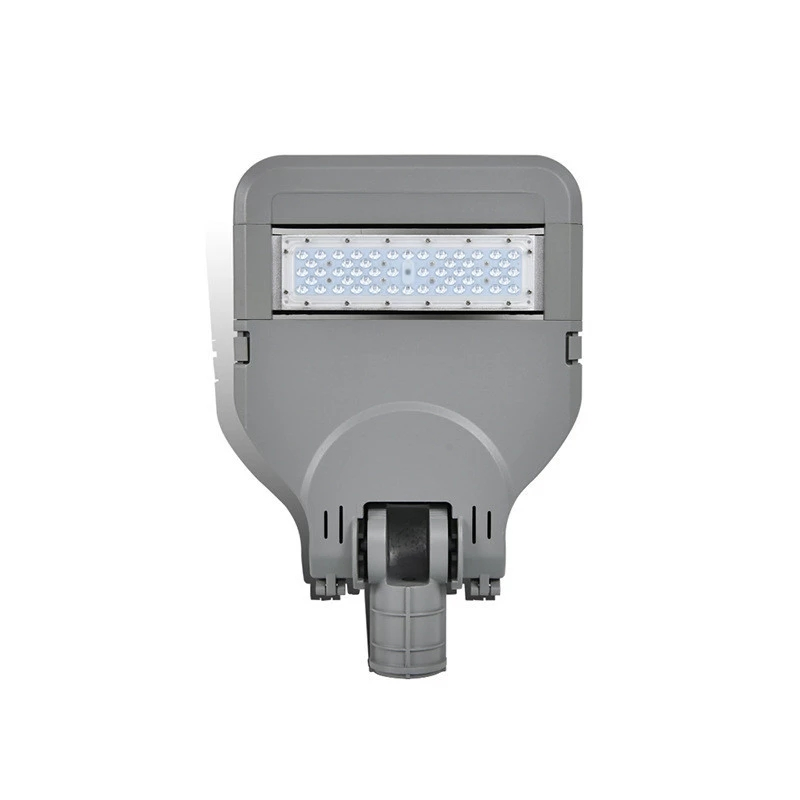

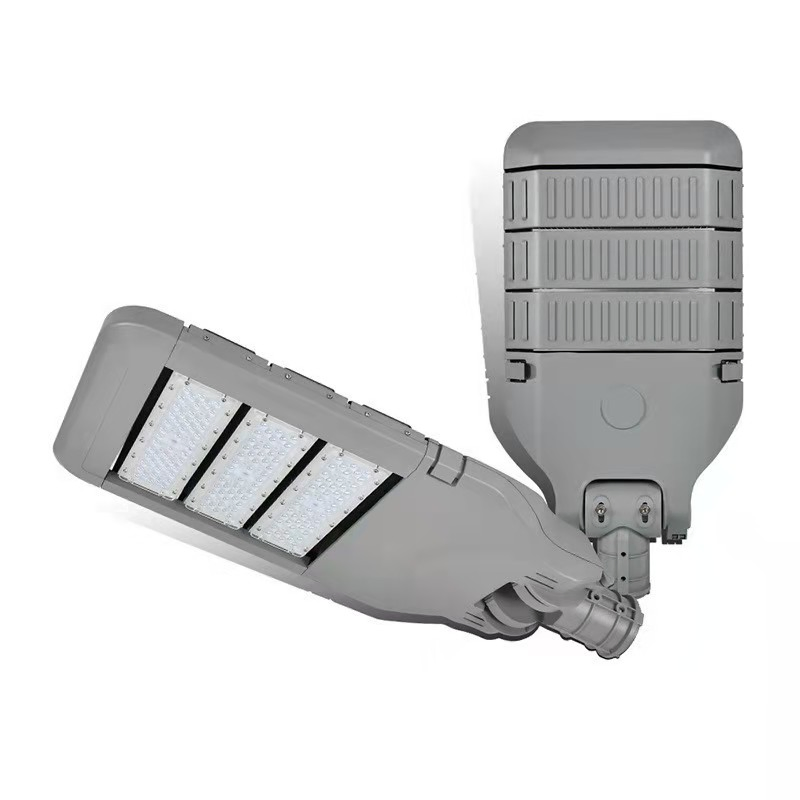

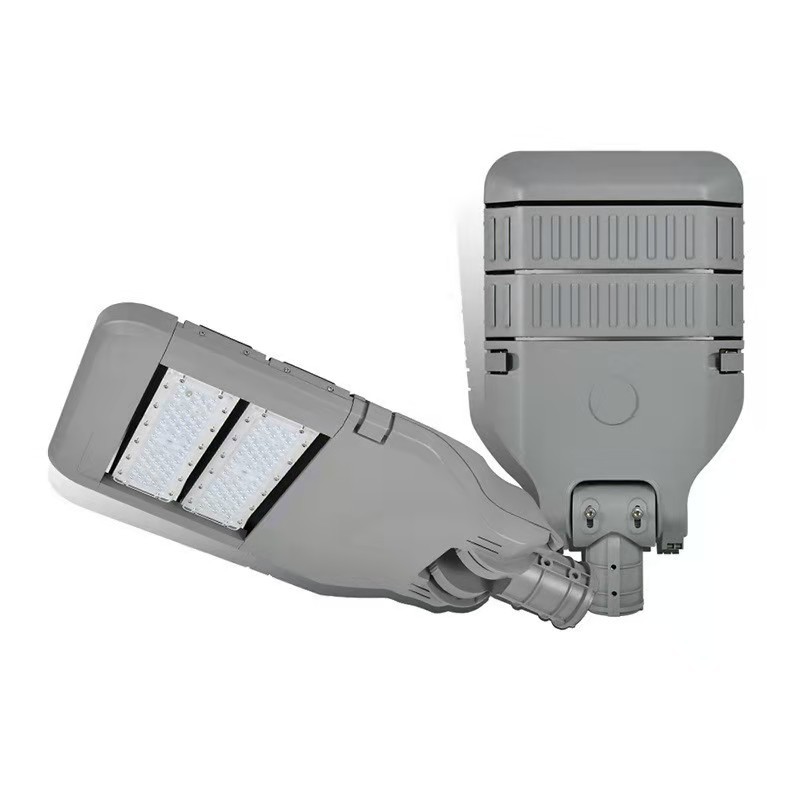

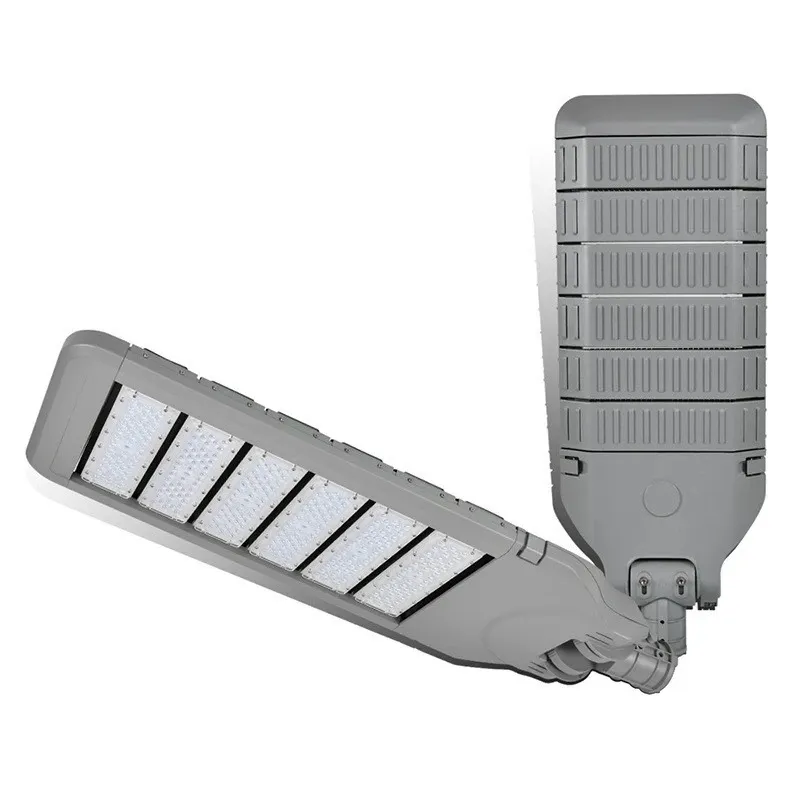

Product Display

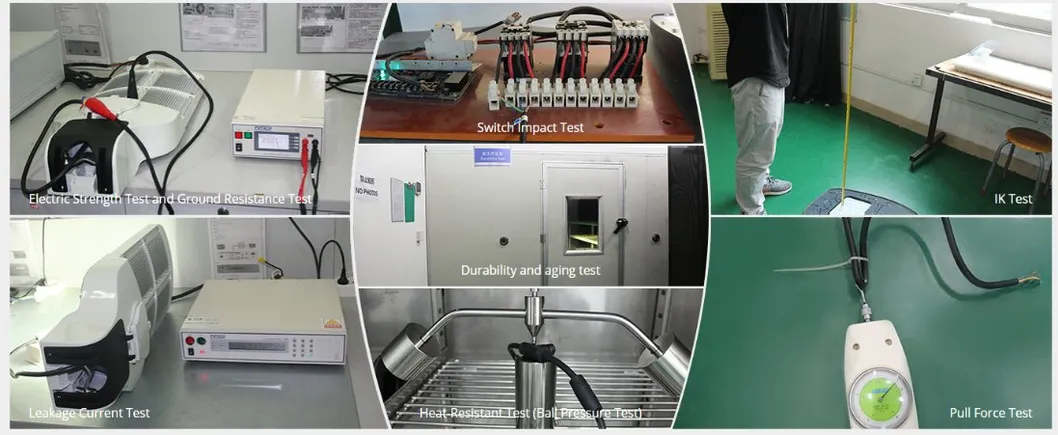

Workshop & Production
Frequently Asked Questions
Do these LED lights really have a 50,000-hour lifespan?
The 50,000-hour lifespan is a theoretical value from laboratory testing. In real-world environments, actual lifespan is typically around 30,000 hours, though it can reach 50,000 hours if high-quality materials are used and conditions are optimal.
Why do different suppliers have different brightness for the same power?
Brightness varies due to the chip quality, efficiency version, and the design of the lamp fixture. Even with the same chip, different brightness versions can result in varying luminous output.
What is Color Temperature (CCT)?
Color temperature is measured in Kelvin (K). Lower temperatures (e.g., 3000K) provide a warmer, relaxing light, while higher temperatures (e.g., 6000K) provide a cooler light that enhances concentration.
What is Color Rendering Index (CRI)?
CRI measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI provides more realistic color representation but usually comes at a higher cost.
What do PF and Efficiency mean for LED drivers?
Power Factor (PF) and efficiency reflect the electrical performance of the driver. High PF (above 0.95) and high efficiency indicate less power waste and better component quality.
Is the driver box easy to access for repairs?
Yes, the driver box is designed for tool-free opening, allowing for quick and easy maintenance or replacement of internal components on-site.
