Experience the brilliance of our Integrated All in One Solar Powered LED Street Lights

Available in 10W to 120W options | IP66 Waterproof | Energy Saving Performance

Basic Specifications

Model NO.:AIO01

Lamp Body:Aluminum Alloy

Color Temp:3000-6000K

Power Range:10W - 120W

Cell Type:LiFePO4 (Lithium Iron Phosphate)

Charging Time:6 Hours (Strong Sunlight)

Illumination:>10 Hrs (Full Power), 20 Hrs (Saving Mode)

IP Rating:IP66

Certification:CE, RoHS, Ik9

Voltage:12/24V

Working Temp:-40℃ to +60℃

Beam Angle:120°

Packaging & Delivery

Package Size:300.00cm * 300.00cm * 700.00cm

Gross Weight:100.000kg

Capacity:5000 set/Month

Product Description

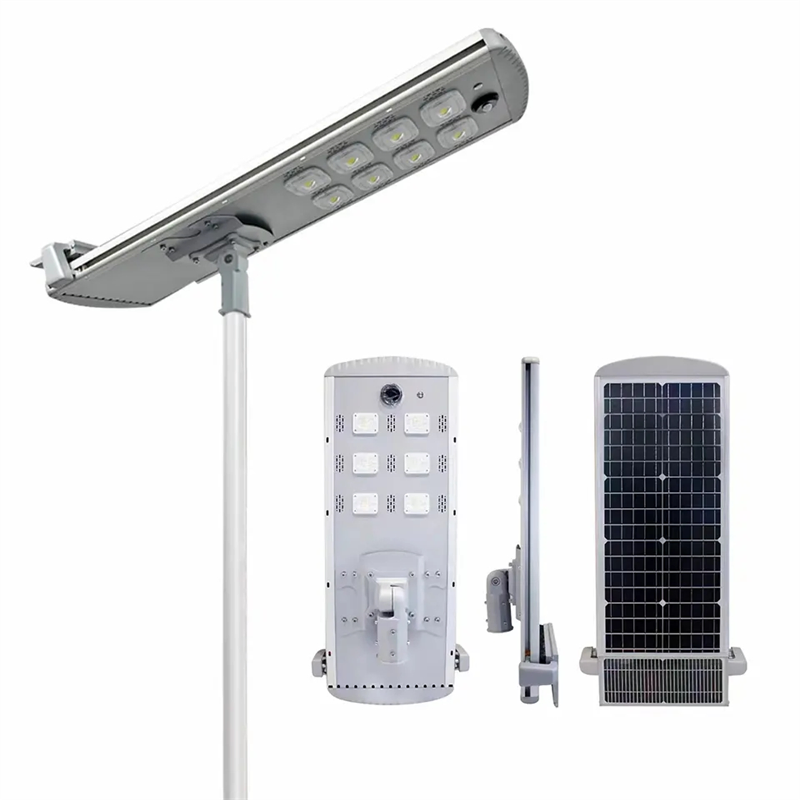

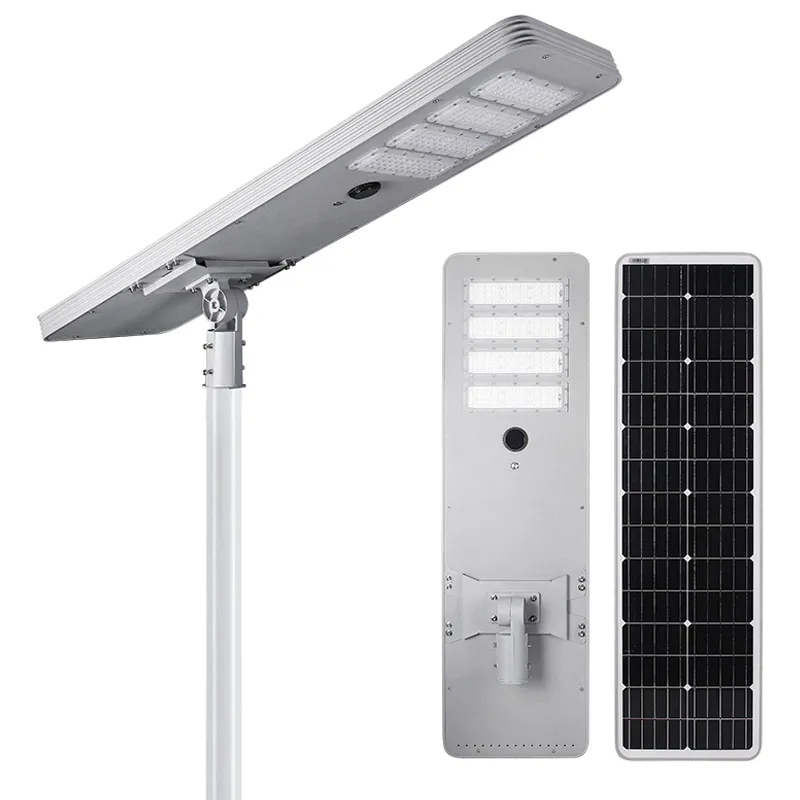

The integrated solar LED street light is a revolutionary solution for road lighting. It ingeniously combines a solar panel, LED lamp, controller, and battery into a single unit, ensuring hassle-free installation. Featuring an intelligent brightness sensor, it charges during daylight and automatically illuminates at night. Users can customize lighting with motion sensors or time control modes to optimize power consumption.

Reference Configuration

LED Power	30W	50W	80W	100W
LED Chips	International Brand model 3030 or 5050
Solar Panel	18V/60W	18V/80W	36V/100W	36V/120W
Lithium Battery	12.8V/30AH	12.8V/50AH	25.6V/40AH	25.6V/50AH
Control Mode	Light Control + PIR Radar Sensor (Adjustable)

Lighting Pole Features

Height	3-45m
Applications	Street, Road, Highway, Commercial Areas, Parking Lot, Stadium, Square, etc.
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, etc)
Surface Treatment	Hot dip galvanization (GB/T 13912-2002) or Powder Coated
Life Span	More than 25 years (Depending on environment)

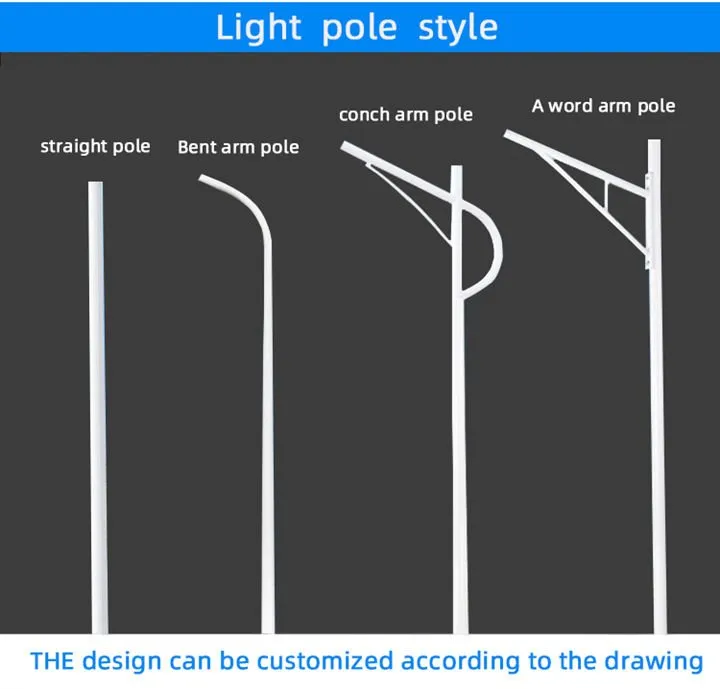

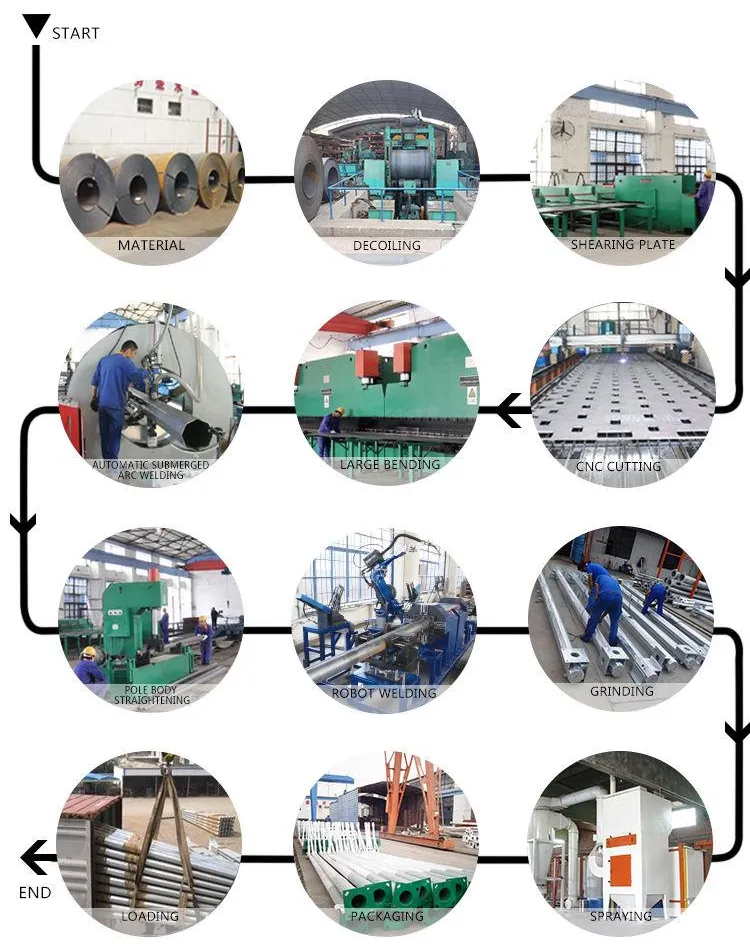

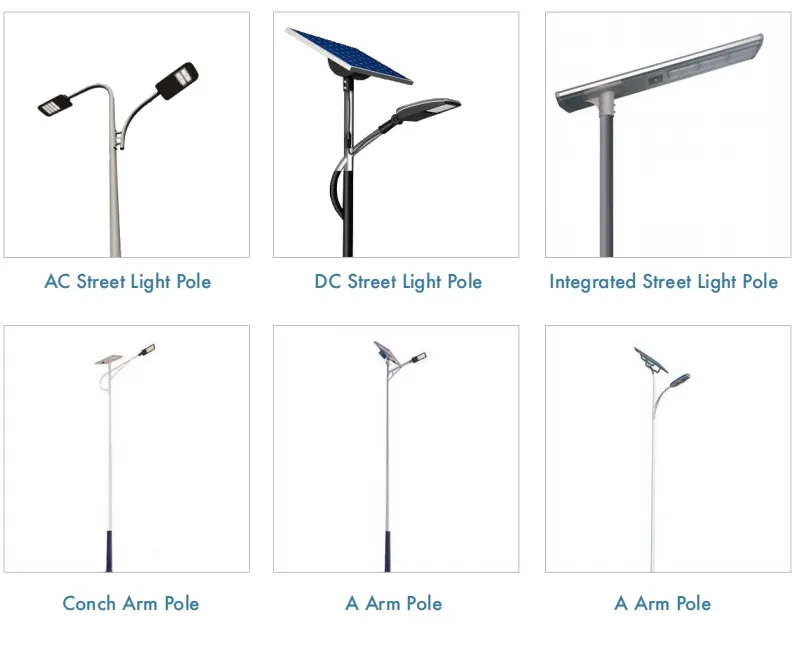

Lighting Pole Styles & Production

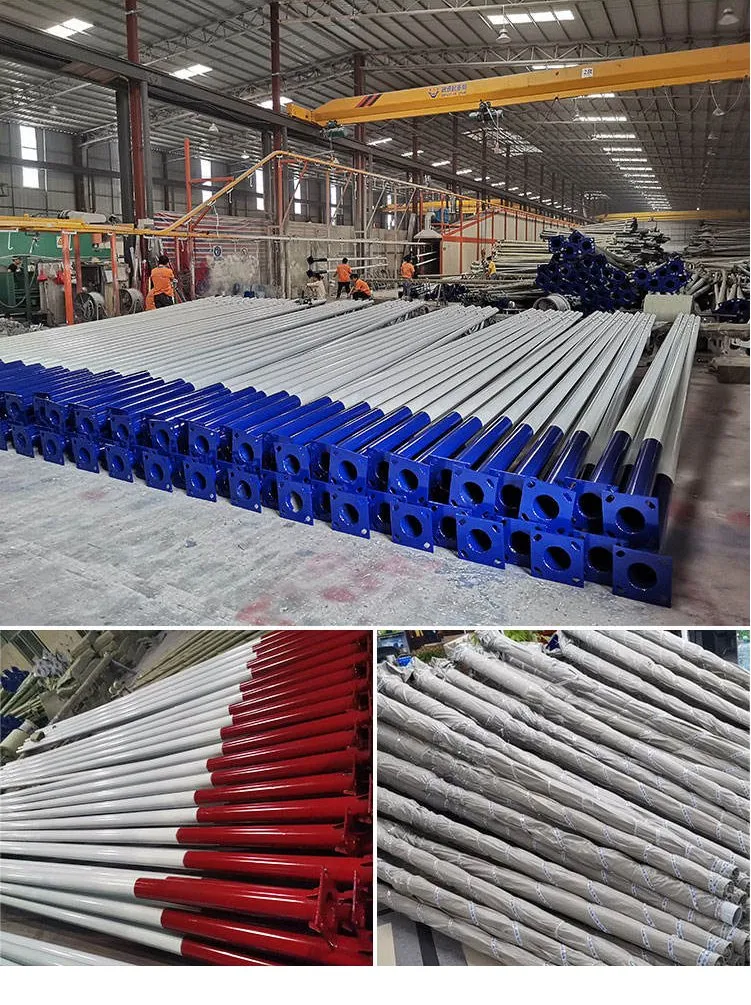

Quality Control & Stock

Frequently Asked Questions

Q1: What are the main advantages of an all-in-one solar street light? A: It integrates the solar panel, LED light, battery, and controller into a single unit, making installation extremely easy, reducing maintenance costs, and providing a waterproof, compact design.

Q2: How long does the battery last on a full charge? A: Under full power, it provides over 10 hours of illumination. In energy-saving mode, it can last up to 20-52 hours depending on the configuration.

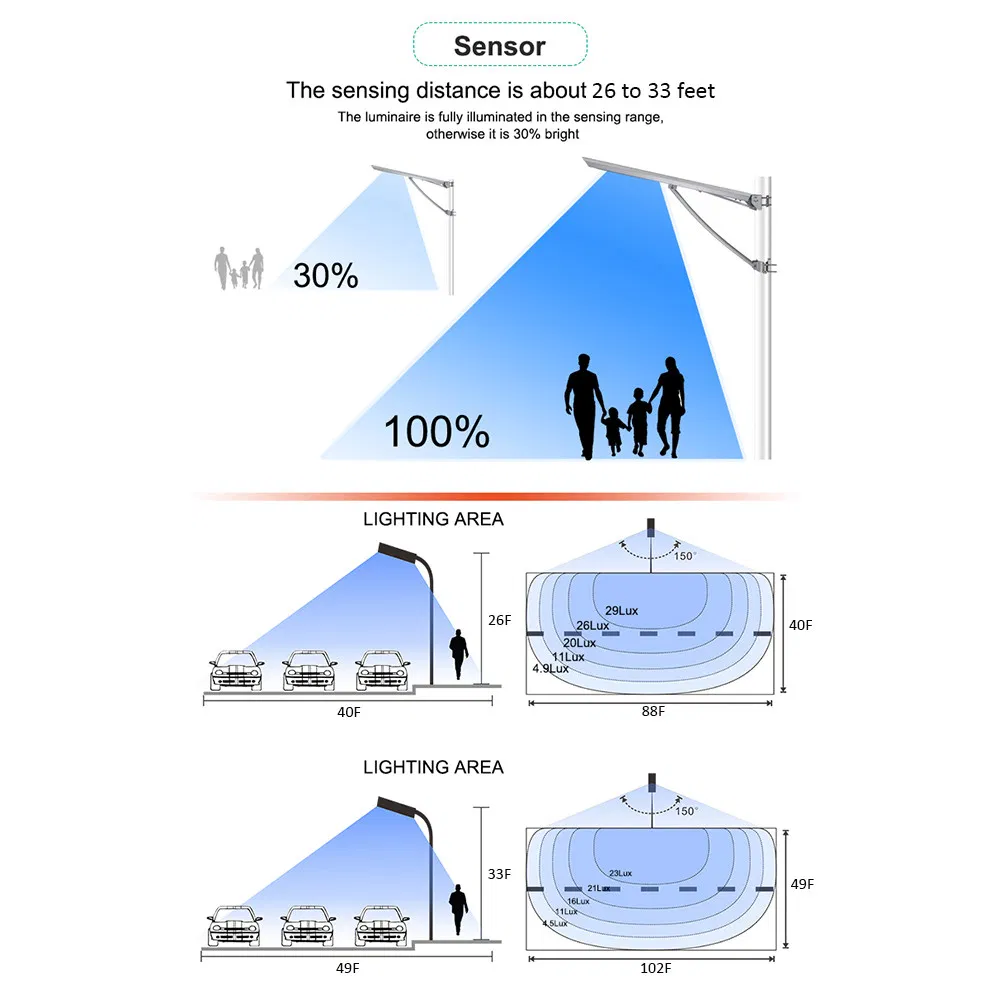

Q3: How does the radar sensor work at night? A: The light operates at a dimmed brightness (e.g., 50%) when no motion is detected. When the radar sensor detects movement, it automatically switches to 100% brightness.

Q4: Can these solar lights withstand extreme weather? A: Yes, with an IP66 rating and a working temperature range from -40°C to +60°C, these lights are designed to withstand heavy rain, dust, and extreme temperature fluctuations.

Q5: What is the lifespan of the lighting poles? A: Due to the hot-dip galvanization surface treatment, the poles have a lifespan of more than 25 years, protecting them against corrosion and rust.

Q6: Is the battery replaceable? A: Yes, the unit uses high-quality LiFePO4 lithium batteries which are designed for long cycles and can be replaced if needed after their service life.
