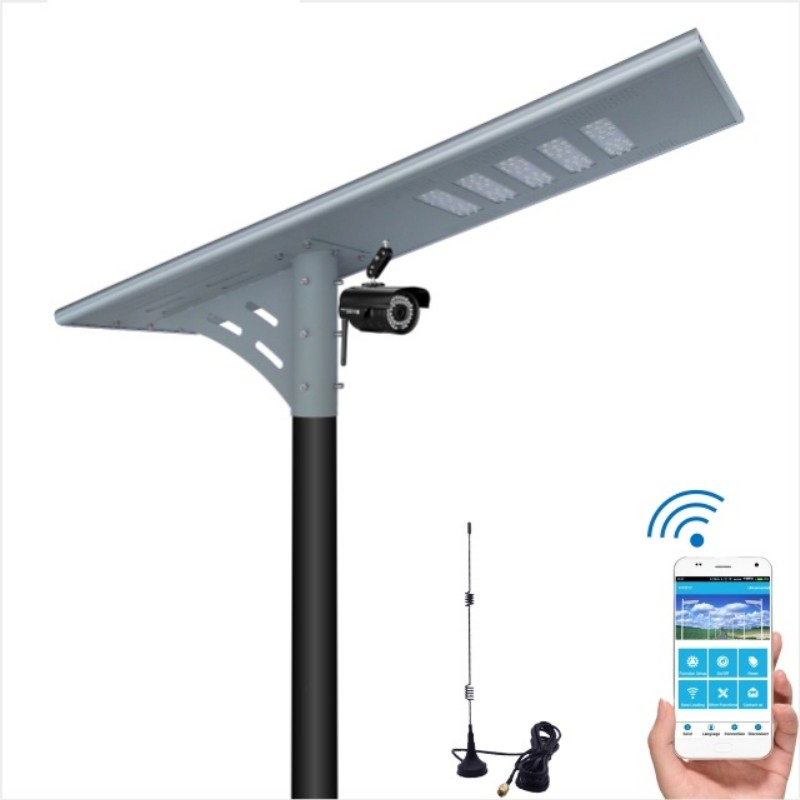

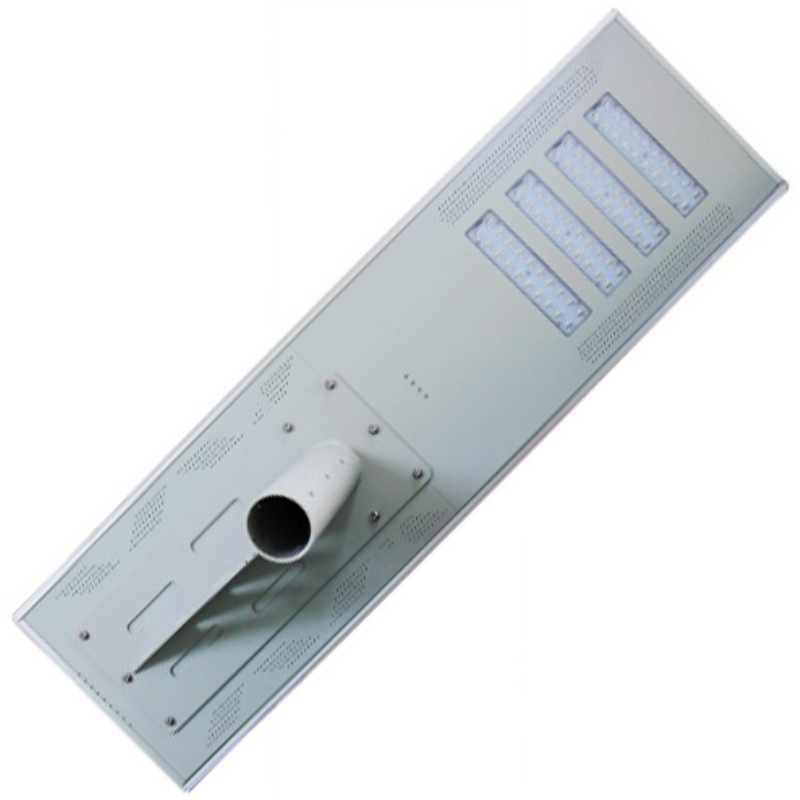

Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
1 / 5
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light
Area Security Lighting 20W 30W Integrated LED Solar Street Light

Area Security Lighting 20W 30W Integrated LED Solar Street Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
SMLN-20W
Light Type
Solar
Power
20W
Color Temp
Cool White
Illumination Time
12h
Cell Type
LiFePO4 Lithium
IP Rating
IP65
Warranty
10 Years
LED Chip
USA Bridgelux 210lm/W
Luminous Efficiency
180lm/W

Key Features

1

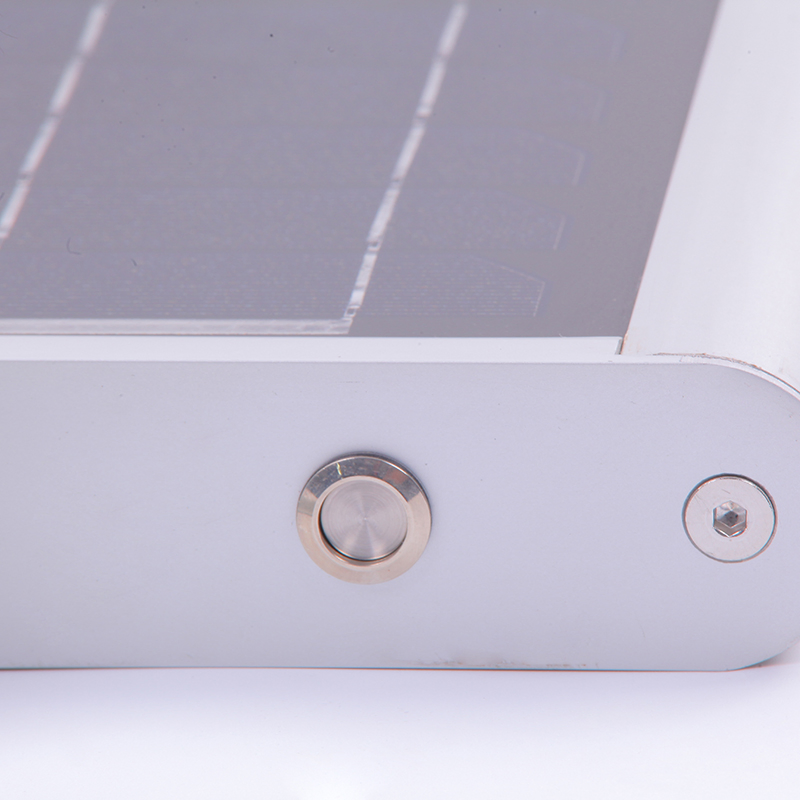

Durable Material Heat-emission aluminum lamp body makes the lamp more durable.
2

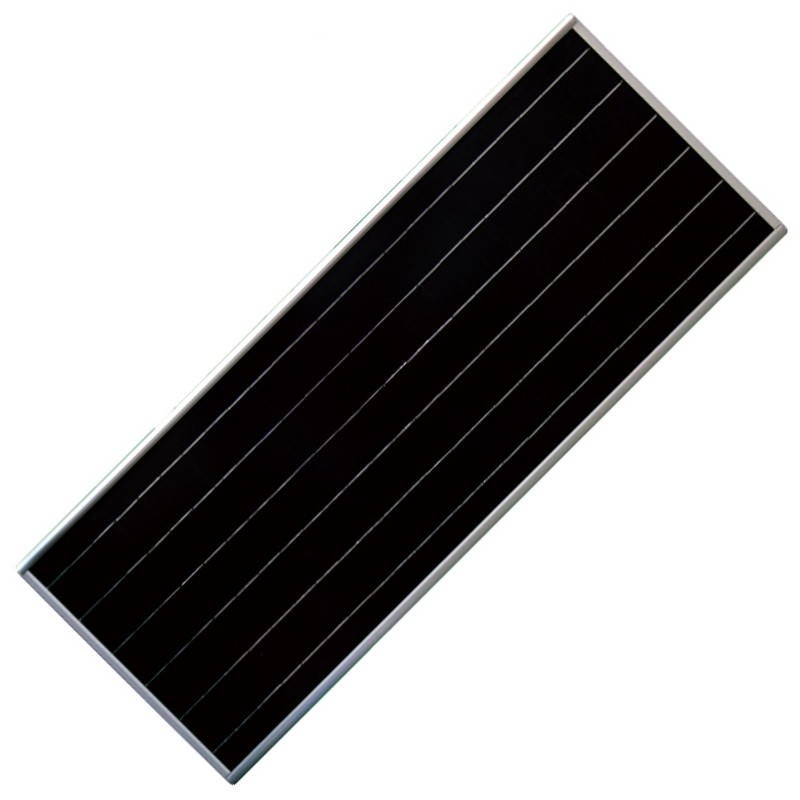

High Efficiency Solar Panels A grade module produce more energy for the lamp in limited space.
3
Advanced Battery LiFePO4 environmentally friendly material for longer lifespan.
4
Premium LED Light BRIDGELUX 210lm/watt LED chip, give brighter illumination.
5
MPPT Controller MPPT type 15%-20% higher efficiency than normal PWM controller.
6
Extended Lighting Time 6 to 14 hours per day and 3 to 5 days backup.
7
Motion Sensor Infrared Motion Sensor for intelligent lighting and energy saving.
8
Easy Installation Only needs 60 seconds and totally free maintenance.
Solar Street Light Overview
Model NO. SMLN-20W Battery Type: LiFePO4 18Ah/12.8V
Power: 20W Charging Time: 6-10 hours
Color Temperature: 6000-6500K Discharging Time: 10-12 hours
Lamp Efficiency: 170 lm/w Material: Aluminum Alloy
Solar Panel: 18V 50W Mono Warranty: 3 years

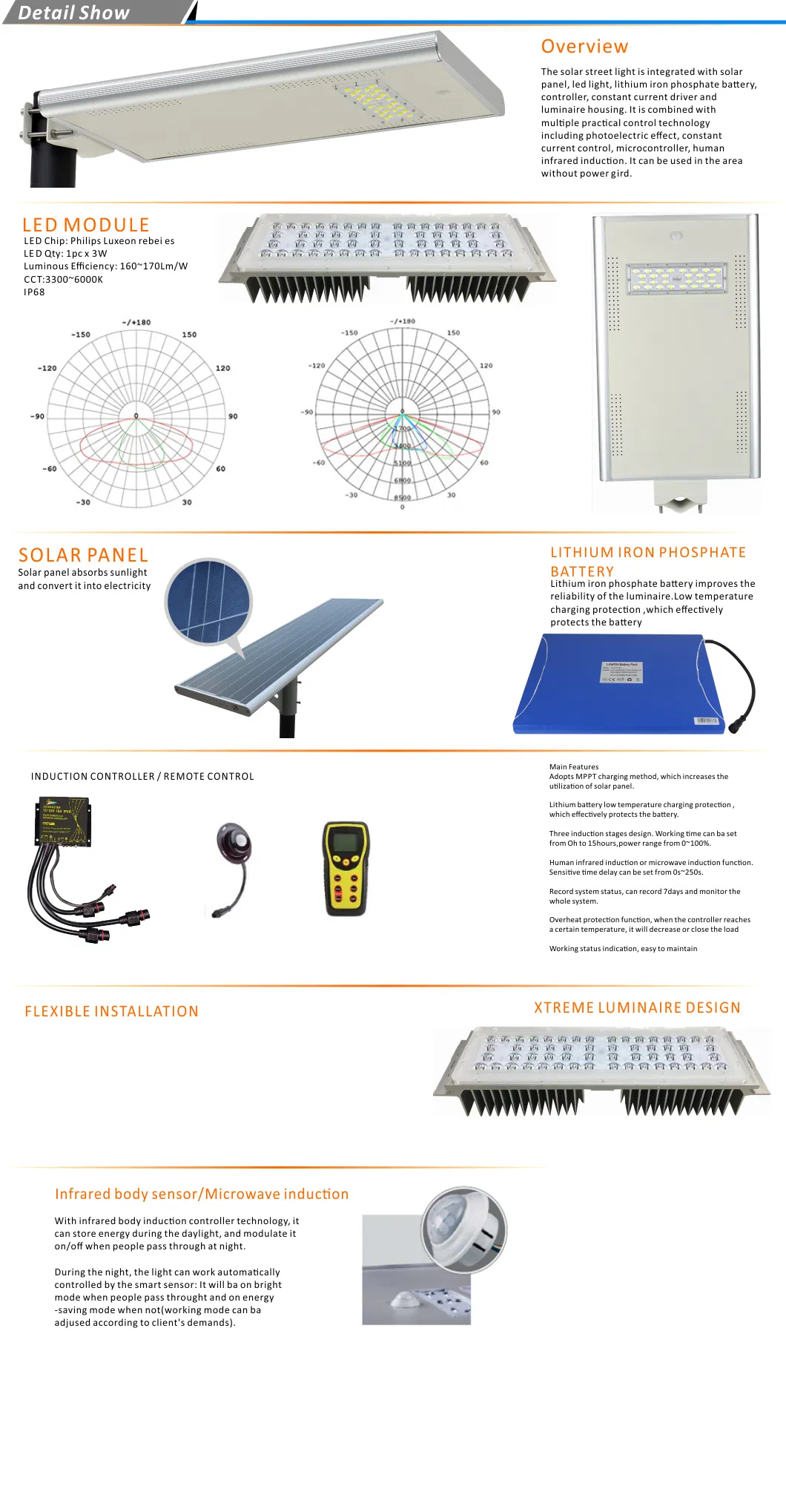

Integrated LED Solar Detail

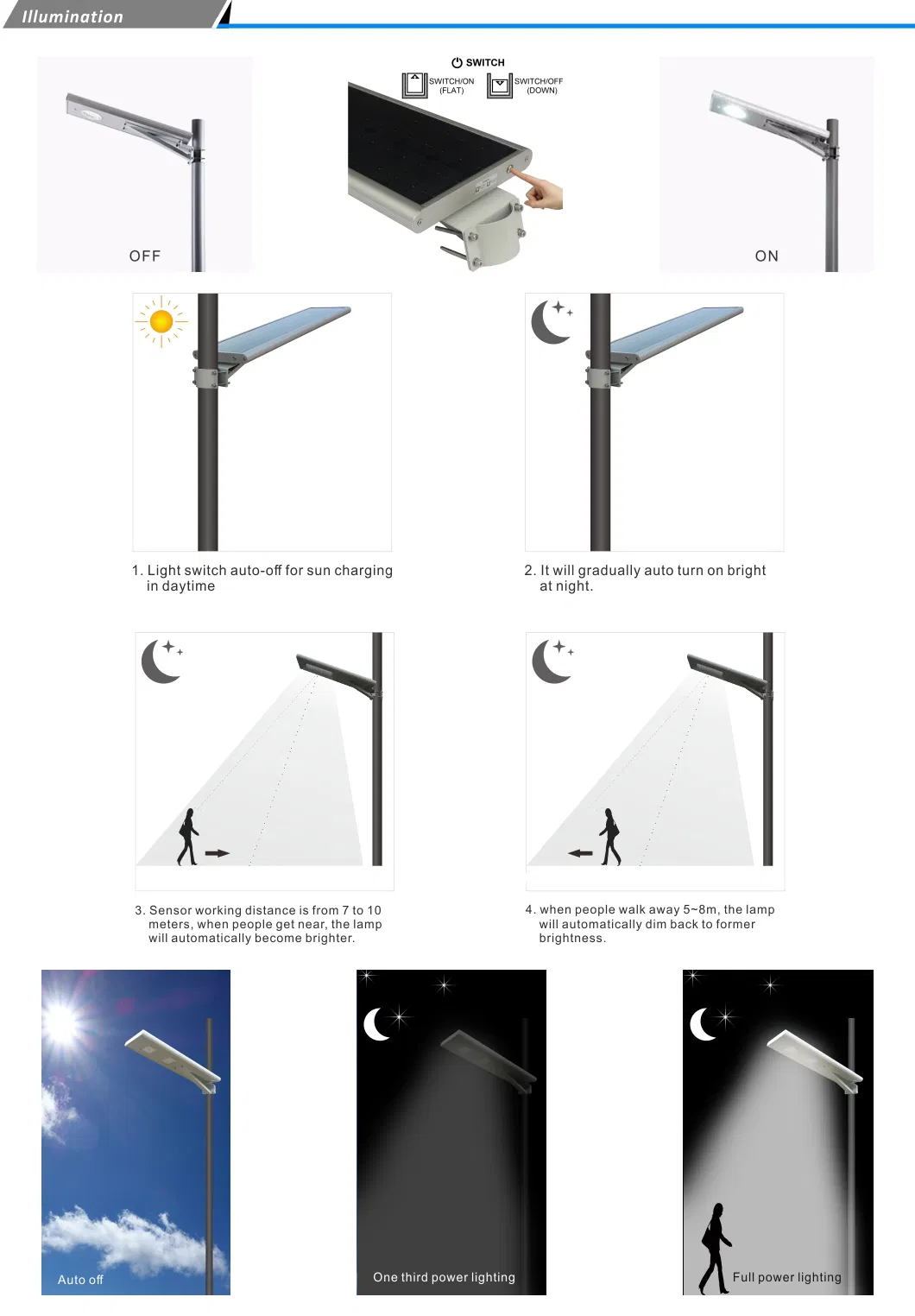

Solar Street Light Specs

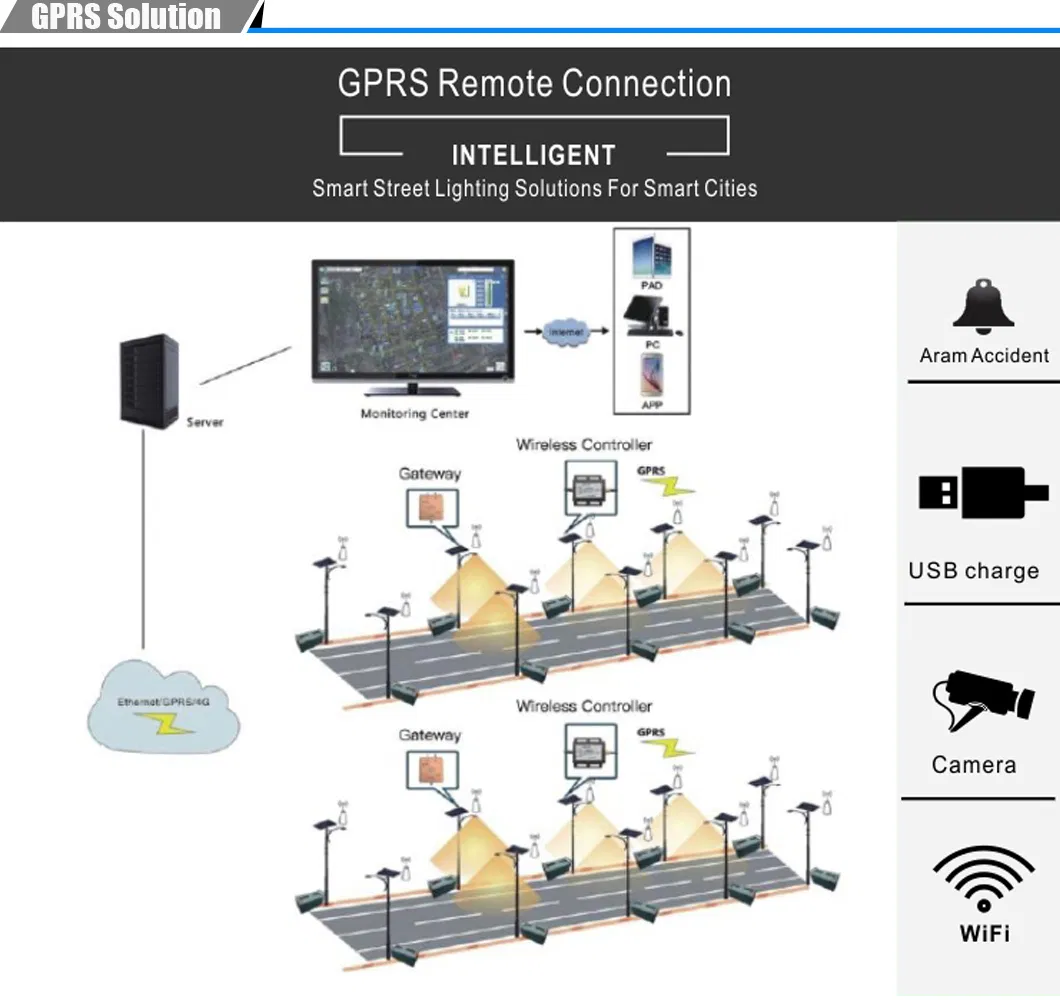

Installation Guide

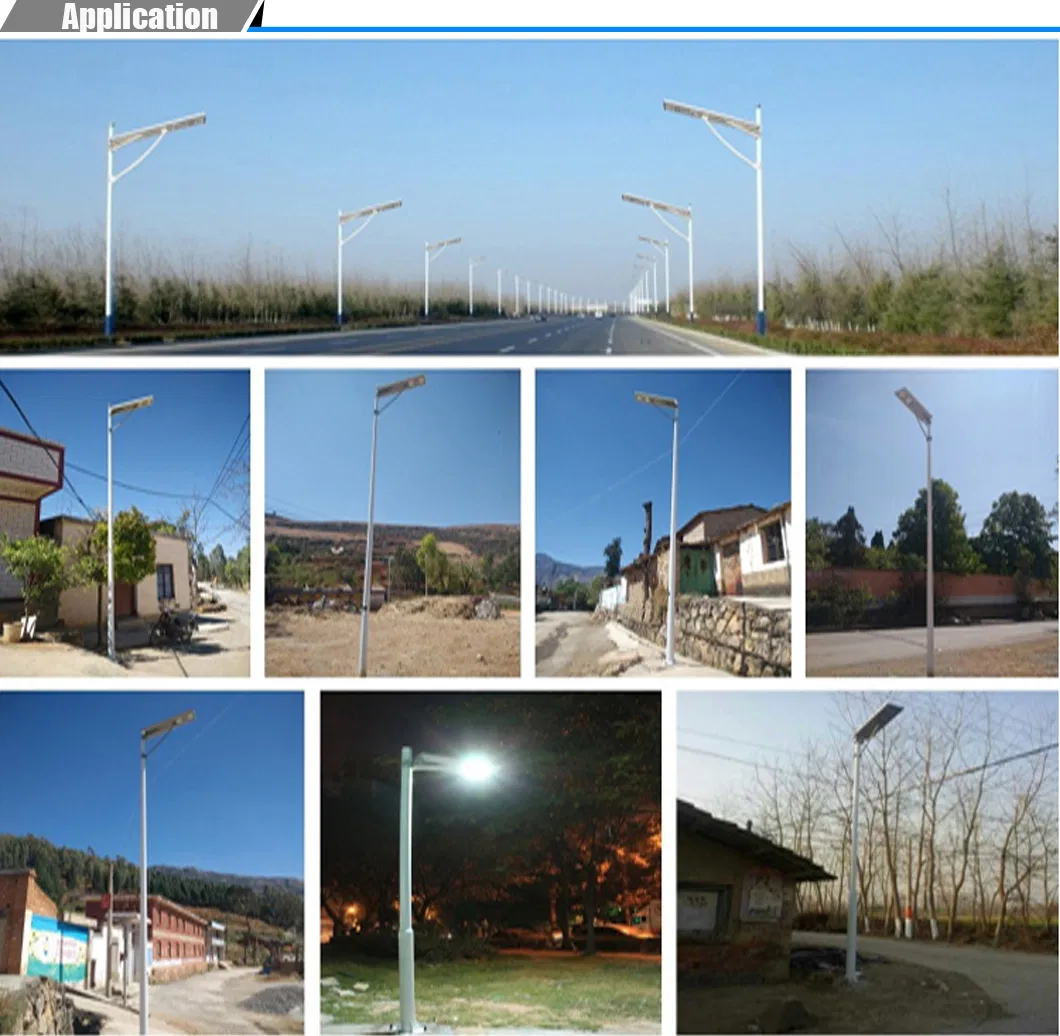

Application Scenario
Full Product Dimensions

Frequently Asked Questions

How long does the battery last on a full charge?
The 20W solar street light provides approximately 10-12 hours of illumination after a full charge, with up to 3-5 days of backup during rainy days.
Is the light completely waterproof for outdoor use?
Yes, the unit is rated IP65, which means it is fully protected against dust and can withstand low-pressure water jets from any direction.
What is the advantage of the MPPT controller?
The MPPT controller is 15%-20% more efficient than standard PWM controllers, ensuring faster charging and better power management even in low-light conditions.
What kind of maintenance is required?
This model is designed for free maintenance for up to 10 years. We recommend occasionally cleaning the solar panel surface to ensure maximum charging efficiency.
Can it be installed by non-professionals?
Yes, the integrated design allows for a very simple installation process that typically takes about 60 seconds once the pole is ready.
What is the working temperature range?
The light is engineered to function reliably in extreme climates, with a working temperature range from -40℃ to +60℃.
