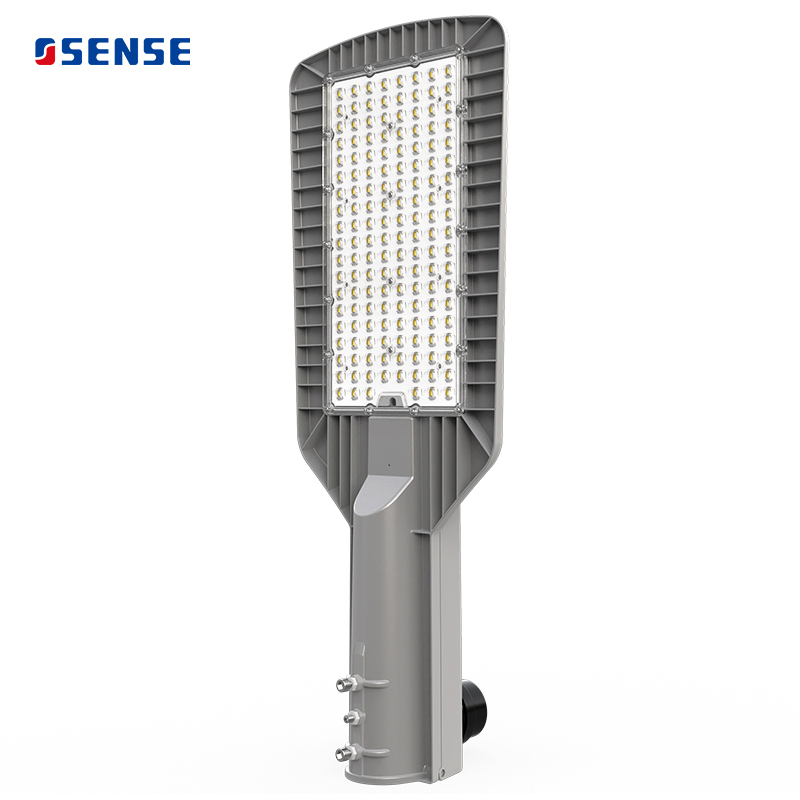

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
SWL-BY200W
Lamp Body Material
Aluminum
Power
60W
IP Rating
IP66
Input Voltage
100-277V
LED Chips
CREE/OSRAM/Nichia/Lumileds
Operating Temp
-30℃ to +45℃
Driver Brand
Moso/Sosen/Meanwell/Inventronics
CRI
>70 / >80
Warranty
3/5/7/10 Years
Application
Square, Highway, Garden, Urban Street, Bridge
Certification
CB, CCC, CE, EMC, Energy Star, RoHS, SAA

Key Features

  • Patented private mold with integrated Die-casting for superior durability.
  • High-efficiency coating passing 500 hours salt spray test.
  • Tool-free power cavity opening for easy installation and maintenance.
  • Fast turn-off power protector ensuring maximum safety during servicing.
  • Ultra-high efficiency up to 170lm/w for rapid ROI.
  • Supports DALI, 0-10V, and 1-10V smart control systems.
  • Long lifespan exceeding 50,000 hours (L70).

Technical Parameters

GENERAL INFORMATION ELECTRICAL INFORMATION
Mounting Module Post top / Side entry (42-60φ / 76-80φ) Electrical Class Class I
Tilt Angles 0, ±5, ±10, ±15 Nominal Voltage 100V-277Vac 50/60Hz
Housing ADC 12 die-casting Power Factor ≥0.95 @ 230Vac
Impact Resistance IK08 (IK09/IK10 optional) Surge Protection 10kV / 20kV (optional)

Product Configuration Scheme

Model No. Power LED Brand Luminous Efficiency Product Dimension N.W(kg)
SWL-BY30W30WCREE135-150lm/w440*195*169mm2.9
SWL-BY60W60WCREE135-150lm/w440*195*169mm2.9
SWL-BY100W100WCREE135-150lm/w550*245*172mm4.2
SWL-BY150W150WCREE135-150lm/w650*280*173mm5.3
SWL-BY200W200WCREE135-150lm/w780*320*174mm6.6
SWL-BY240W240WCREE135-150lm/w780*320*174mm6.6

Product Details Display

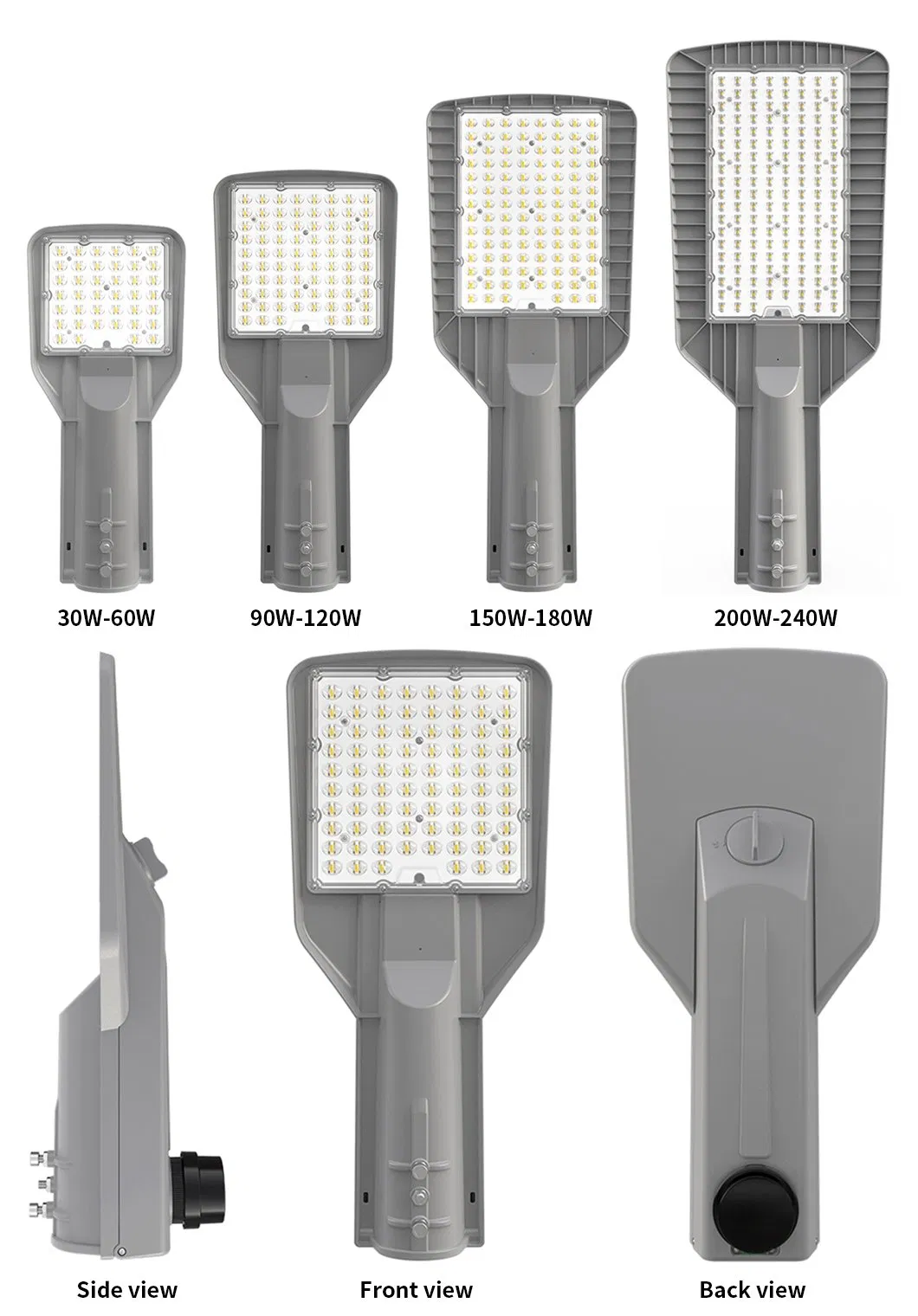

LED Street Light Detail 1

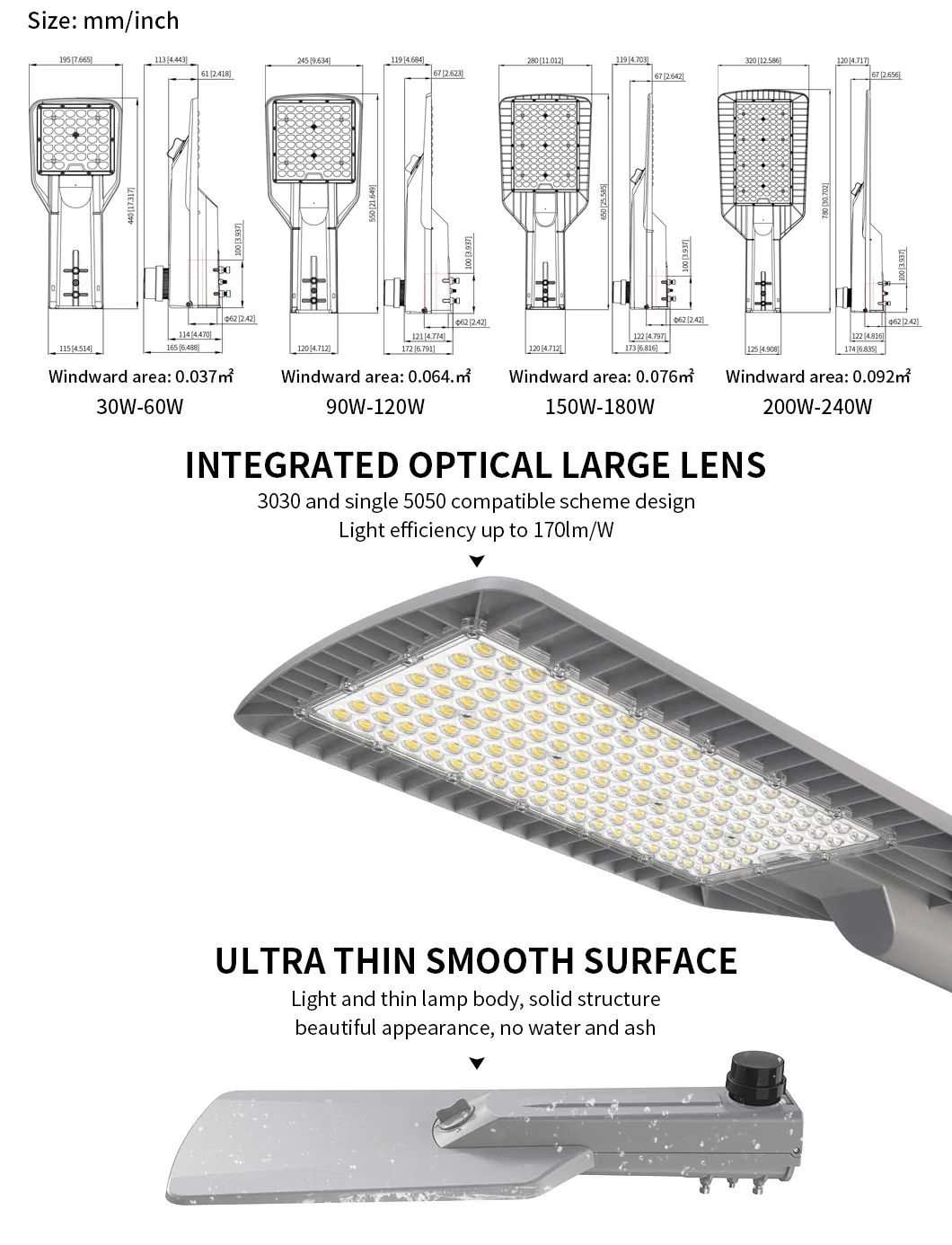

LED Street Light Detail 2

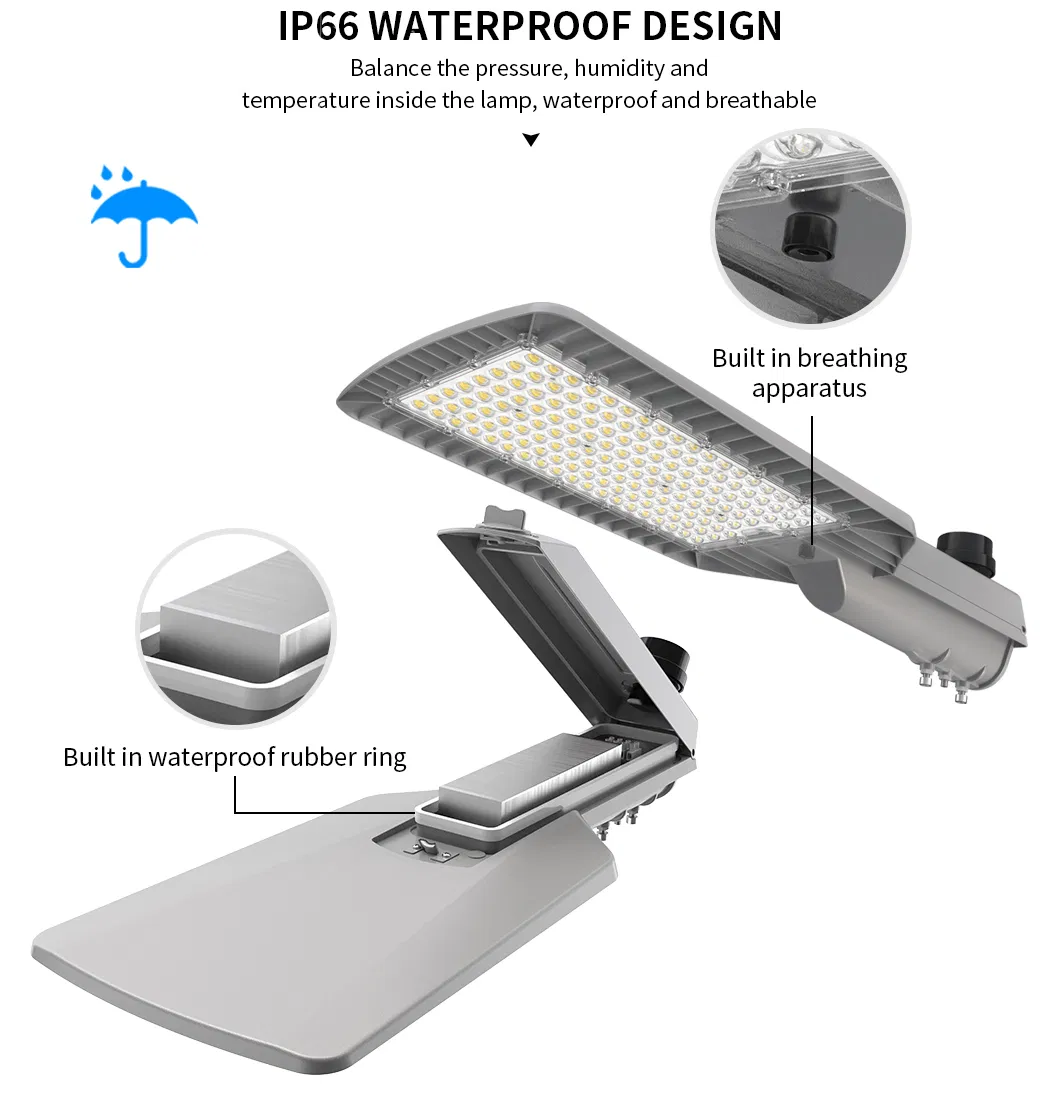

LED Street Light Detail 3

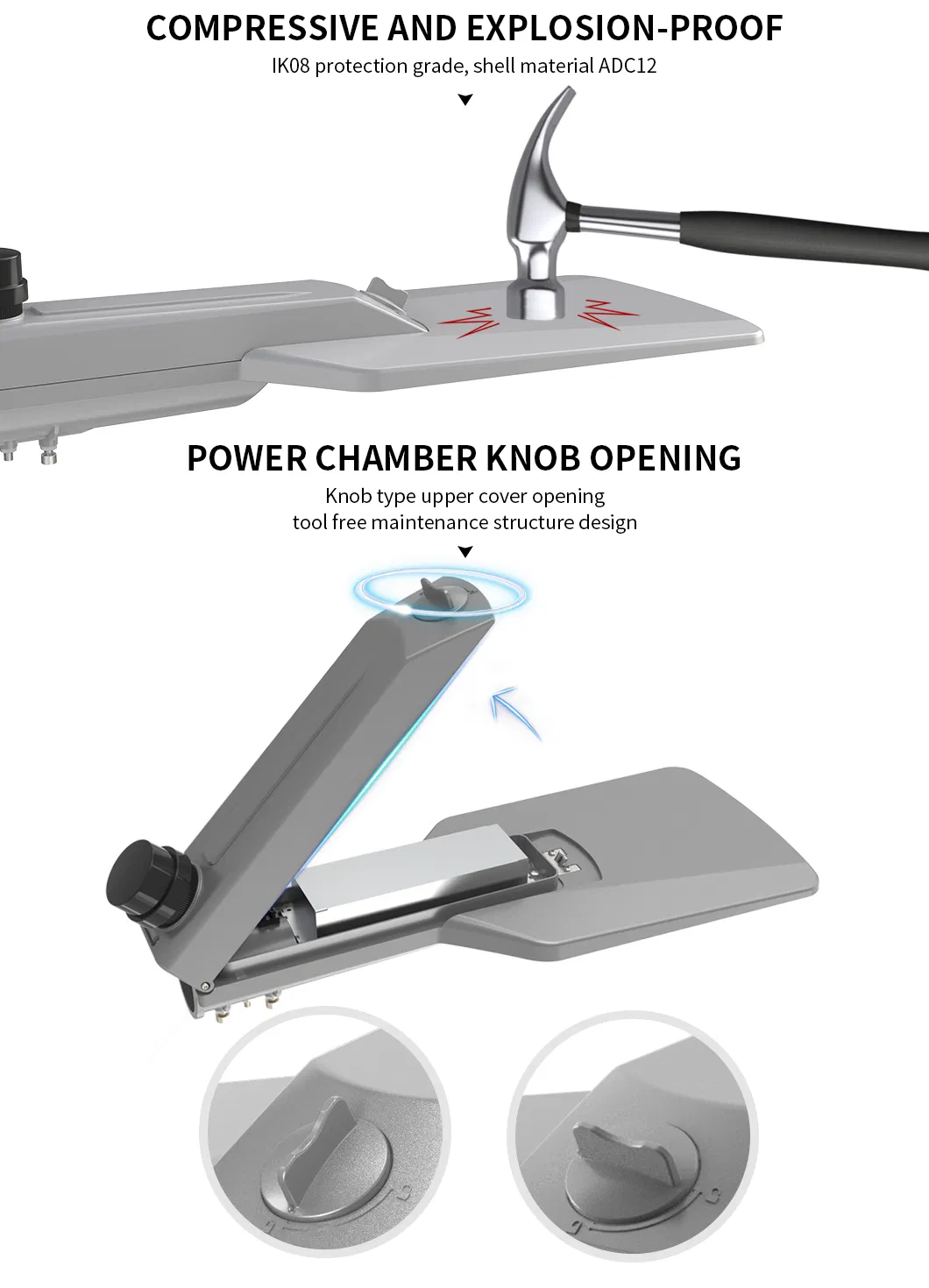

LED Street Light Detail 4

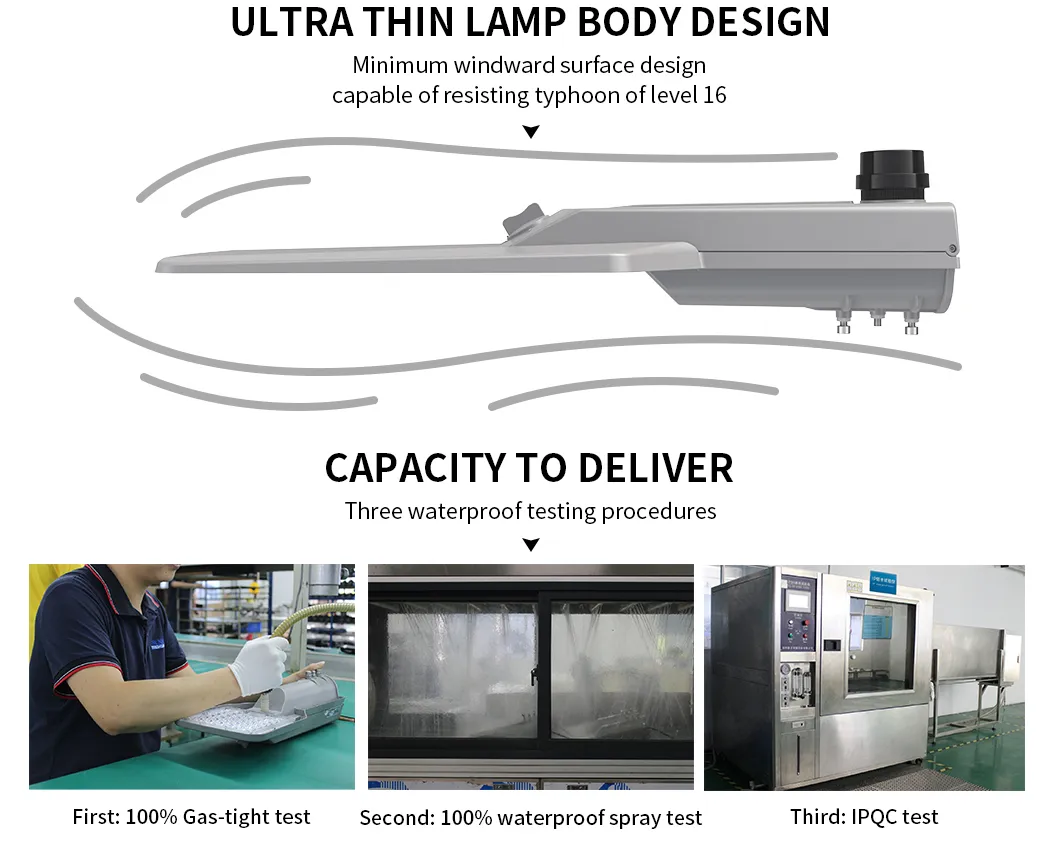

LED Street Light Detail 5

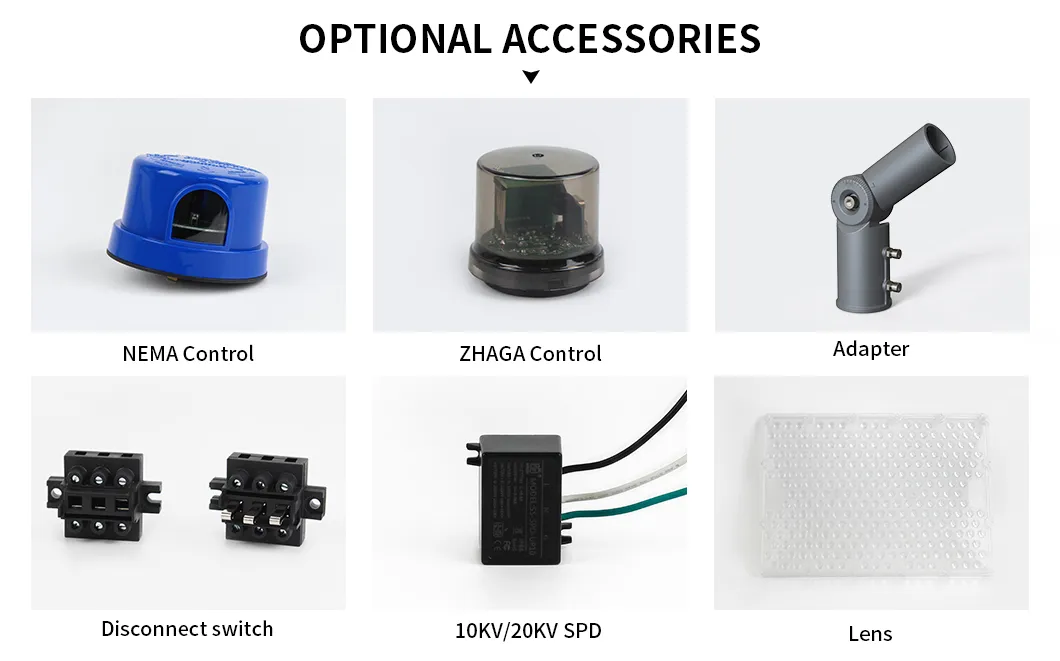

LED Street Light Detail 6

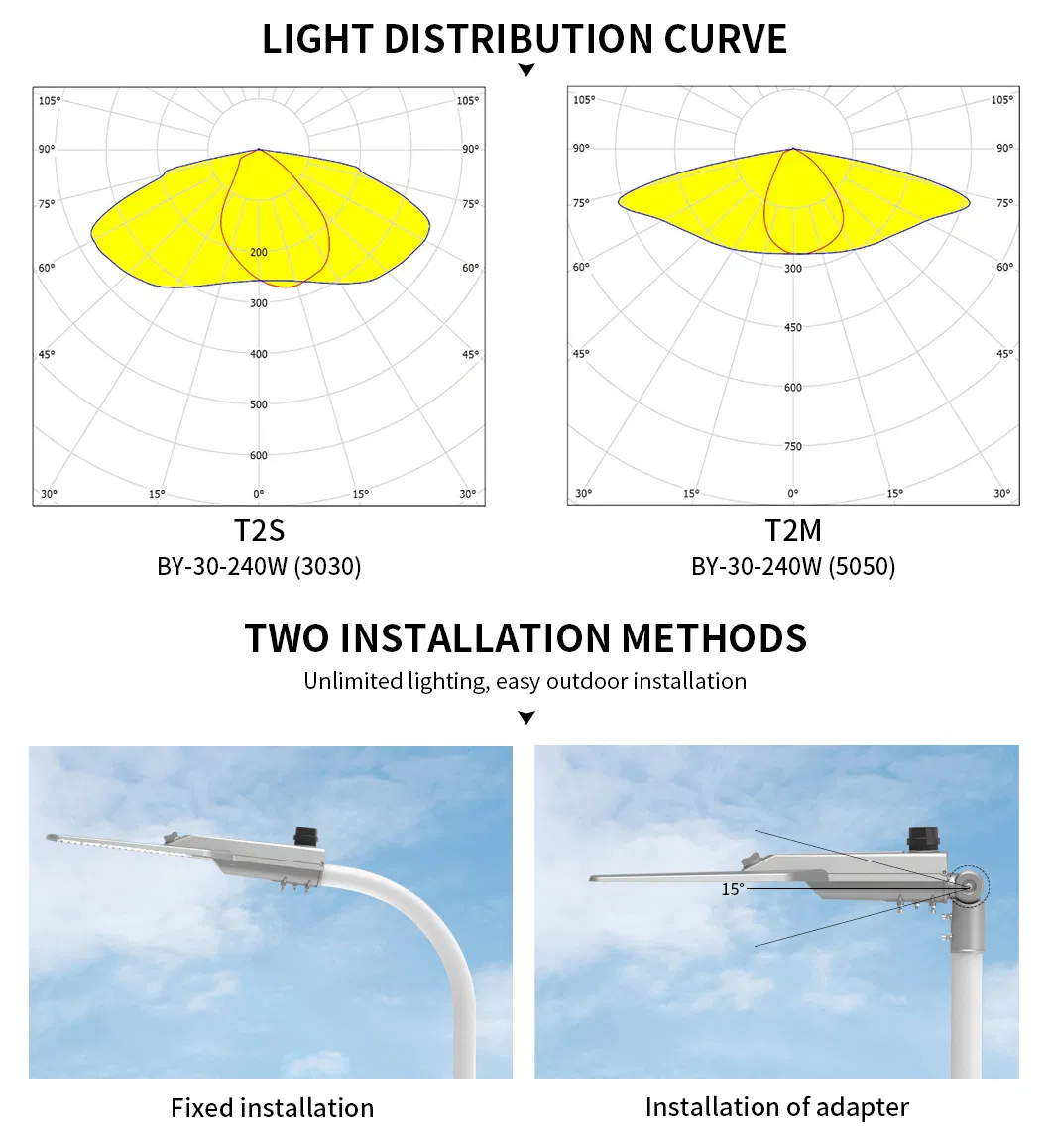

LED Street Light Detail 7

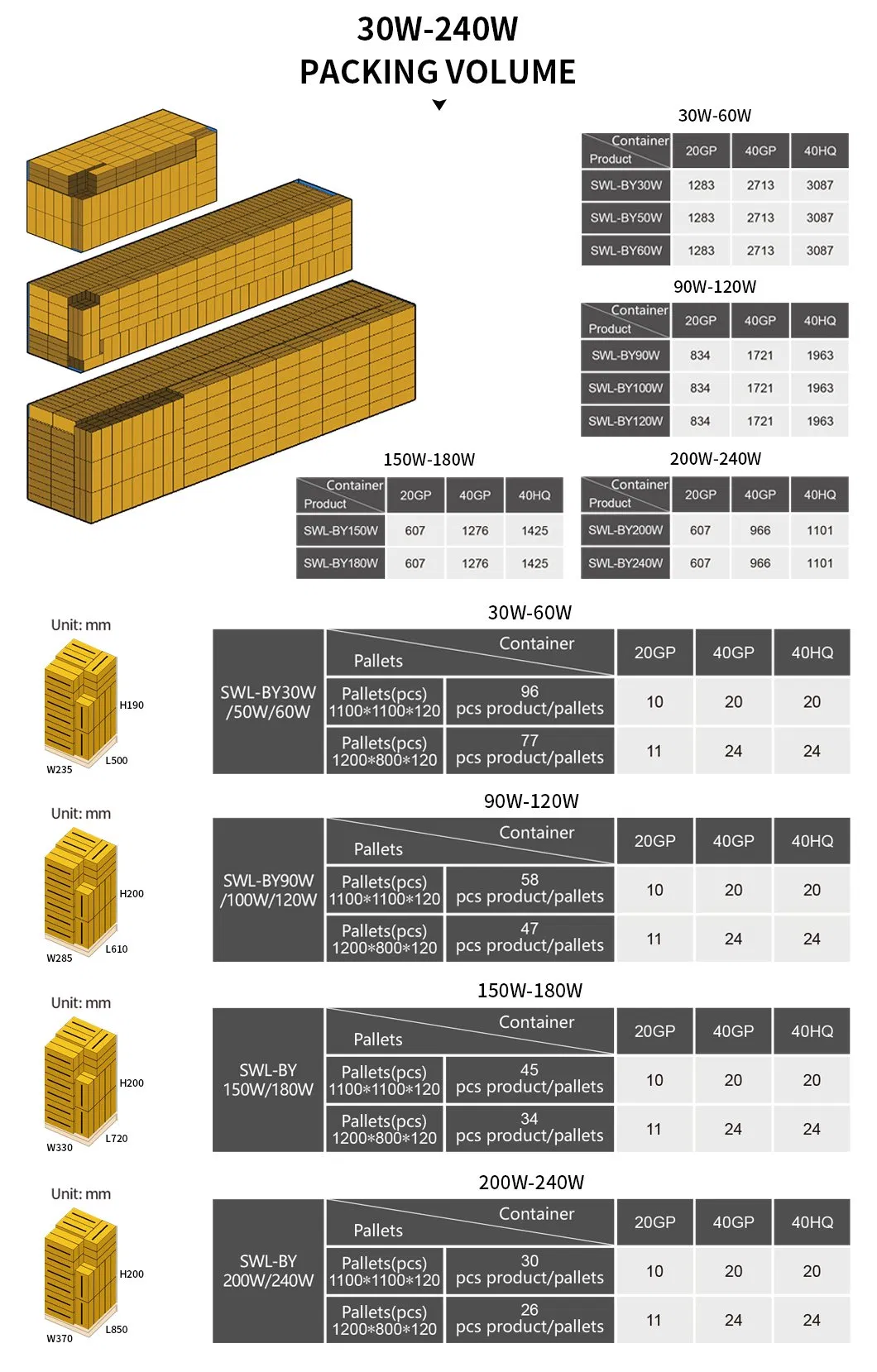

LED Street Light Detail 8

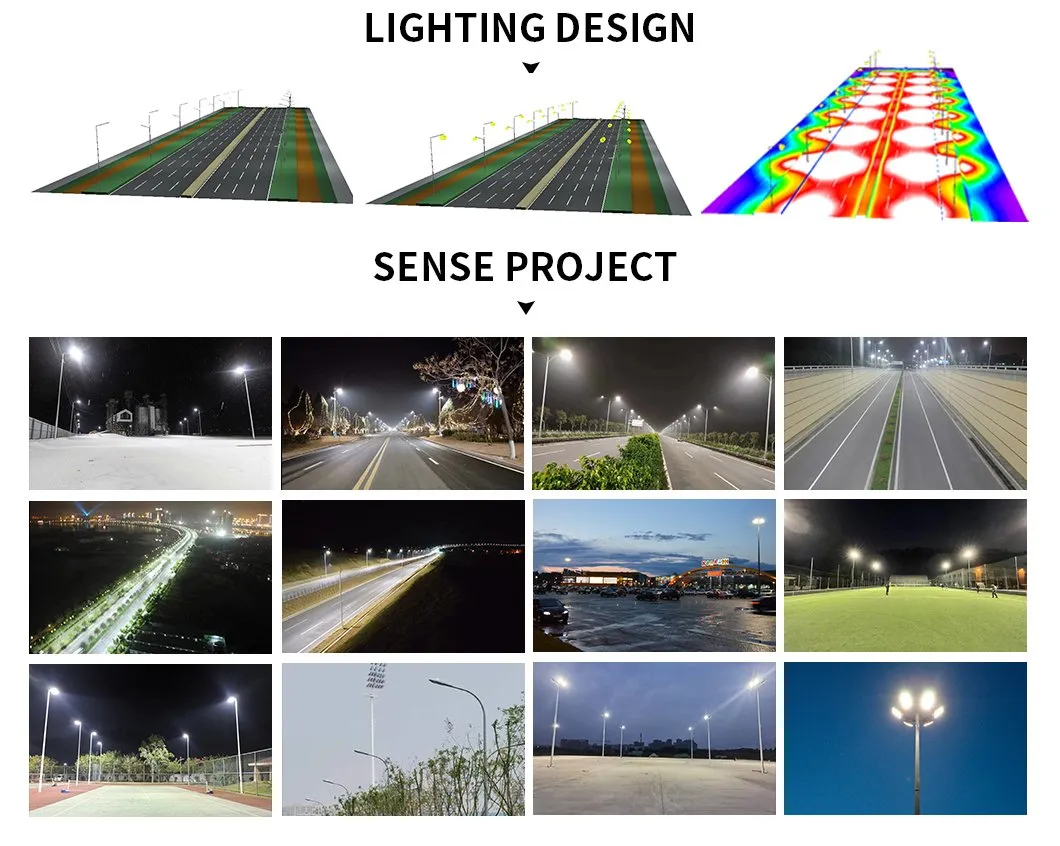

LED Street Light Detail 9
LED Street Light Detail 10
LED Street Light Detail 11

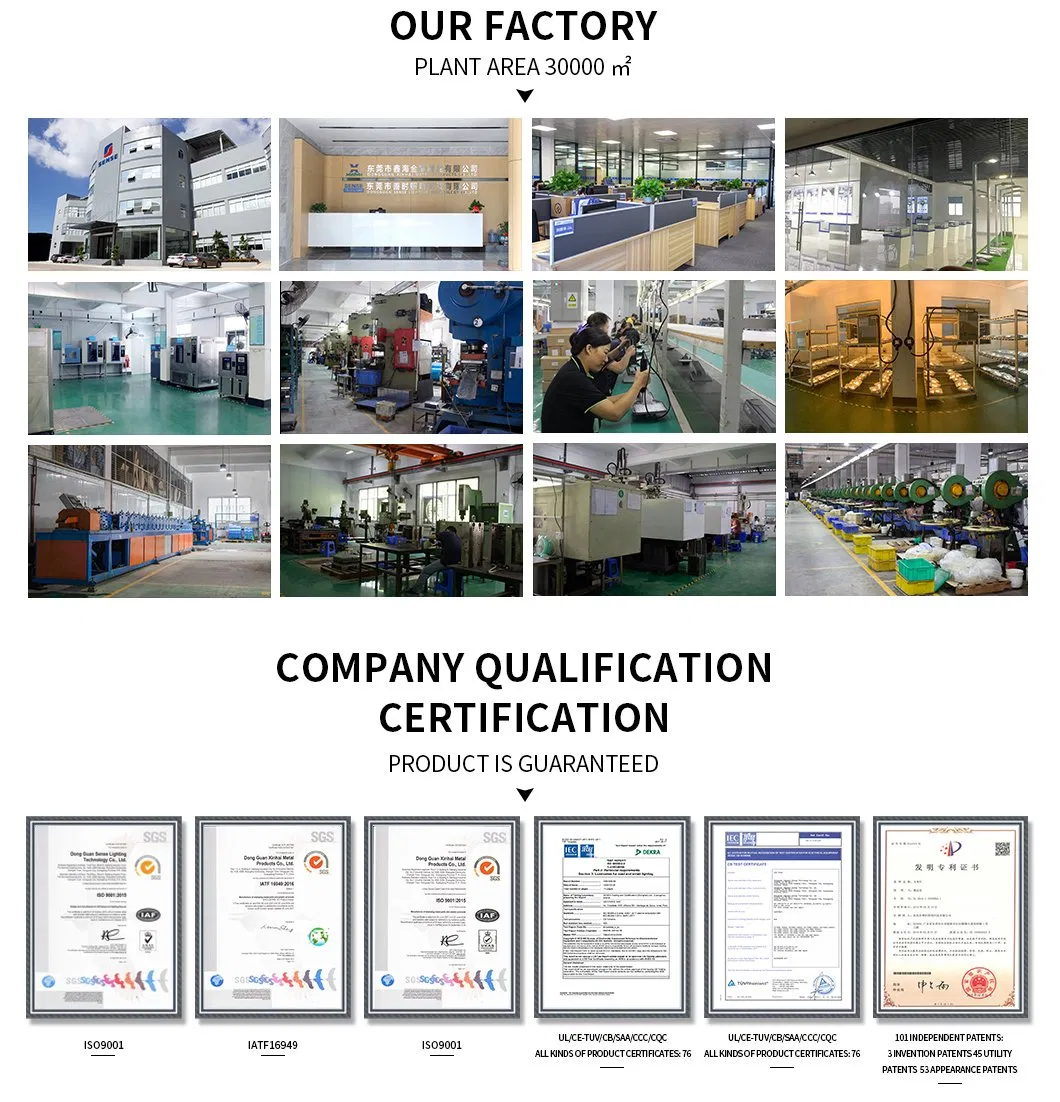

LED Street Light Detail 12

Frequently Asked Questions

Are you a professional manufacturer for street lighting?
Yes, we operate a dedicated factory with over 20 years of R&D and manufacturing experience, adhering to ISO quality management systems since 2003.
What certifications do your LED street lights hold?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. We also provide reports for IP66, IK10, LM79, LM80, and IES.
Do you offer OEM/ODM services for specific projects?
Absolutely. We provide full OEM/ODM support, including custom logos on products and packages to meet different application requirements.
What is the standard warranty period for these lights?
We offer a 5 to 7-year warranty as standard, which can be adjusted up to 10 years based on specific customer requests.
What is the typical lead time for an order?
Samples are usually ready within 3-7 days, while mass production orders typically take 10-20 days depending on the quantity.
How do you handle quality control and faulty products?
Our defective rate is less than 0.1%. For any faults within the warranty period, we provide replacements or repairs depending on the specific situation.
