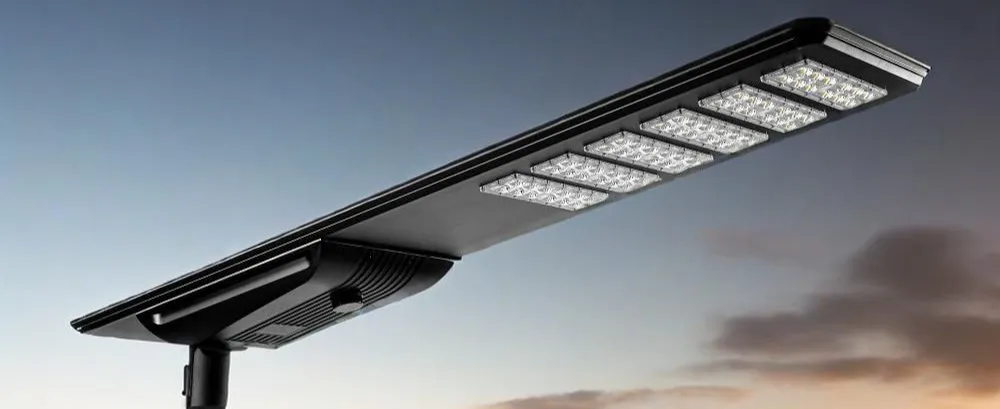

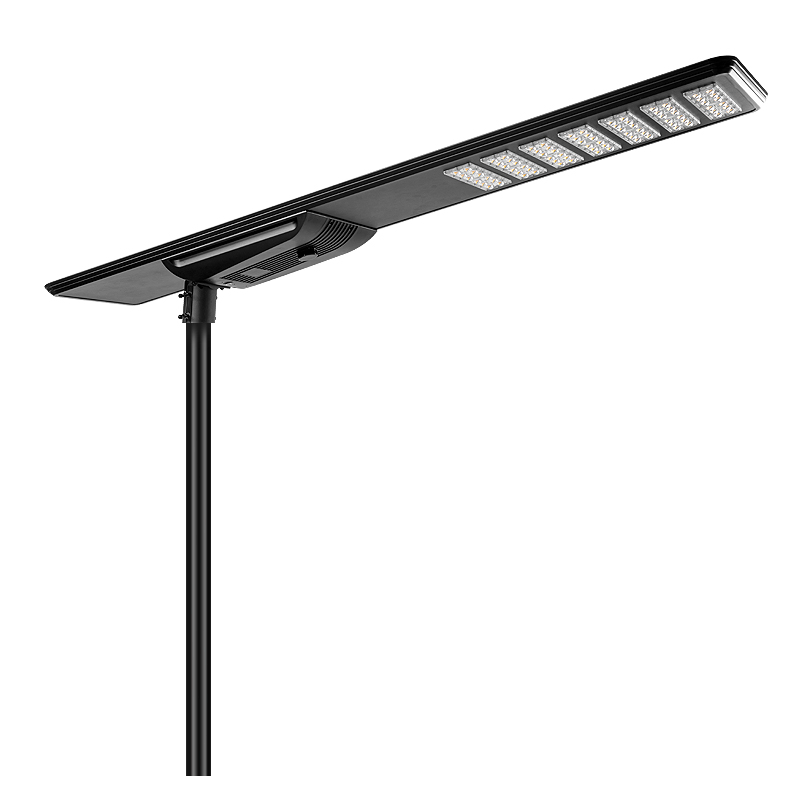

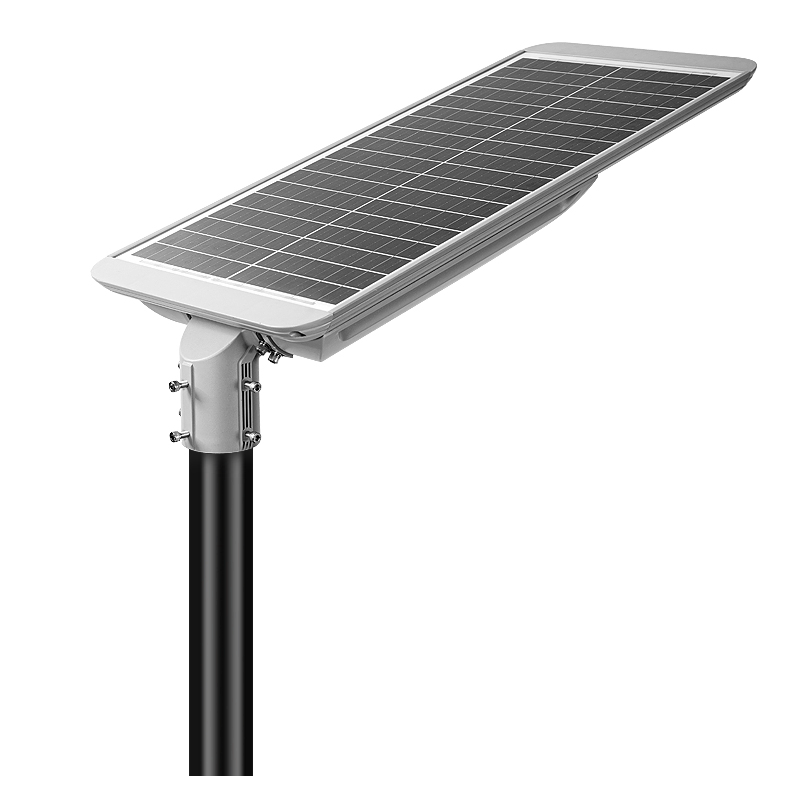

This model solar street light features high brightness, energy saving, environmental protection, and easy installation. With a waterproof rating of IP66 and CE certification, it is ideally suited for urban and suburban lighting, roads, parks, roadsides, factories, and squares. It offers a flexible warranty period of 3 to 5 years with various styles available to meet specific project needs.

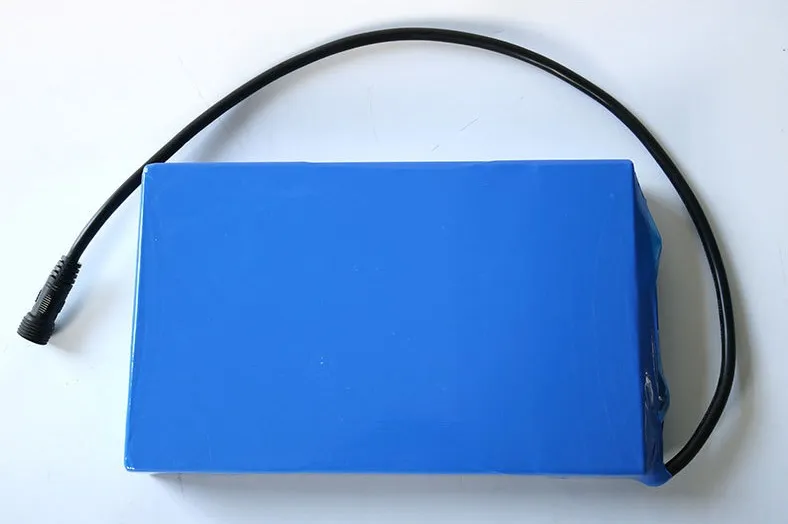

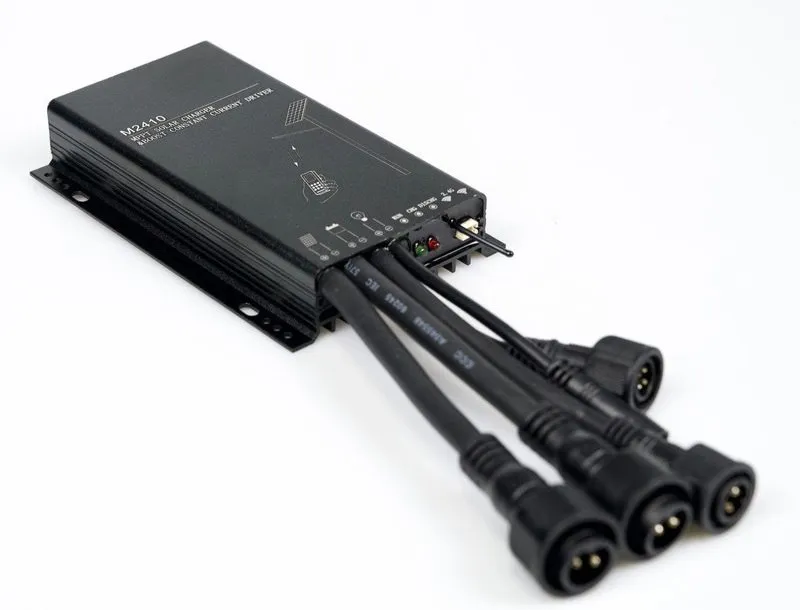

Features Maximum Power Point Tracking (MPPT) technology with over 99% tracking efficiency and 97% charging conversion efficiency. It ensures optimal power utilization from panels up to 520W/24V. Compatible with both Lead-acid and Lithium-ion batteries, it includes infrared/microwave sensing and intelligent temperature compensation.

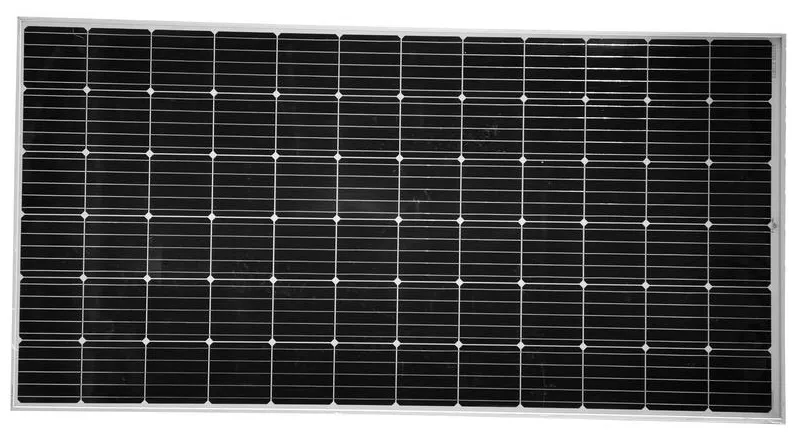

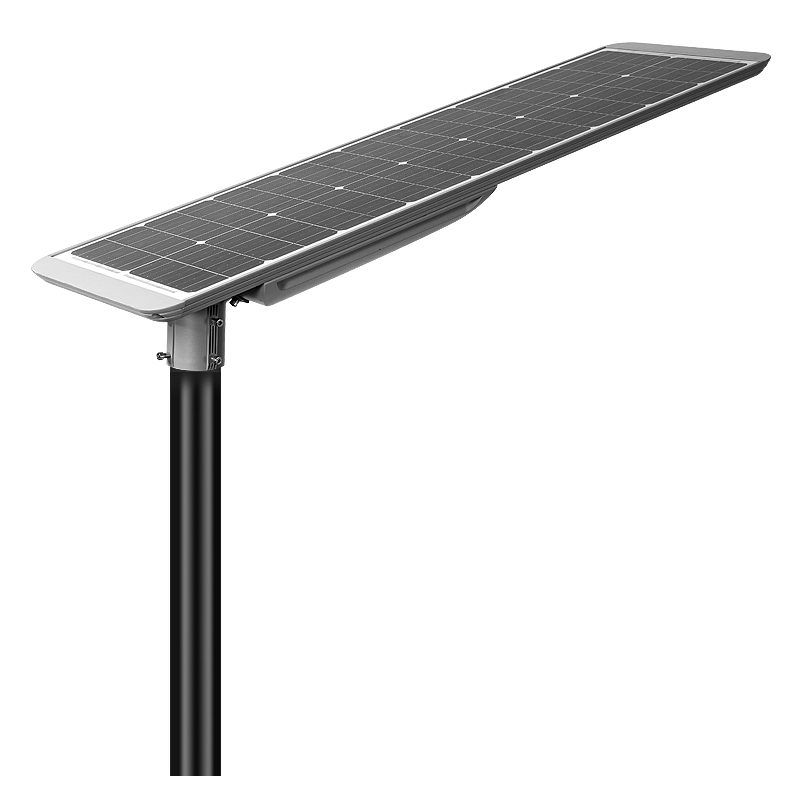

Utilizes Monocrystalline PV panels reaching 25% conversion efficiency. Featuring half-cell 182mm technology for higher power output. Designed for extreme durability with a working life exceeding 25 years and operational temperature range from -40℃ to 85℃.

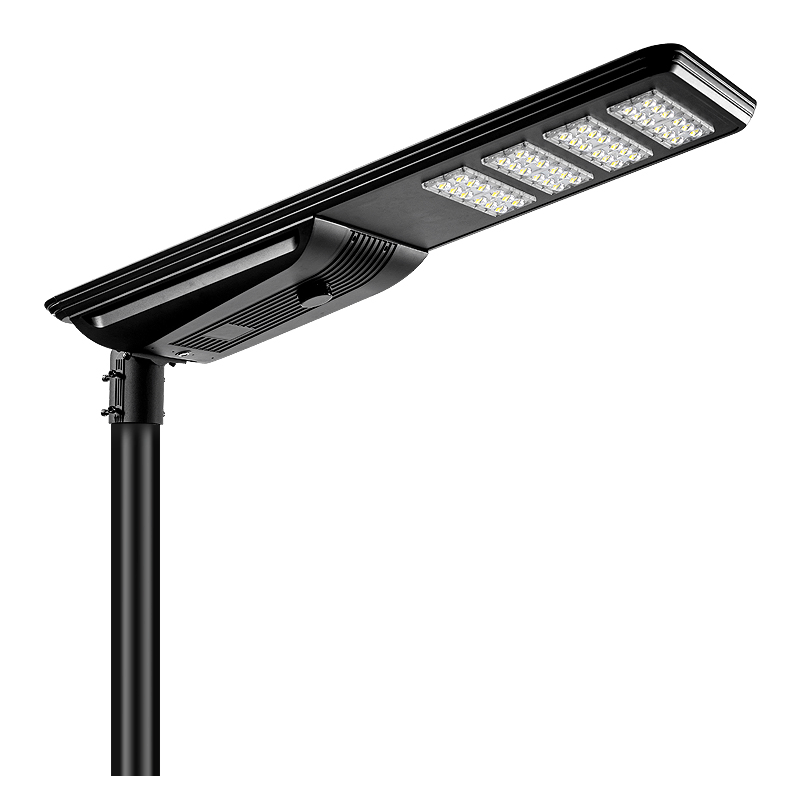

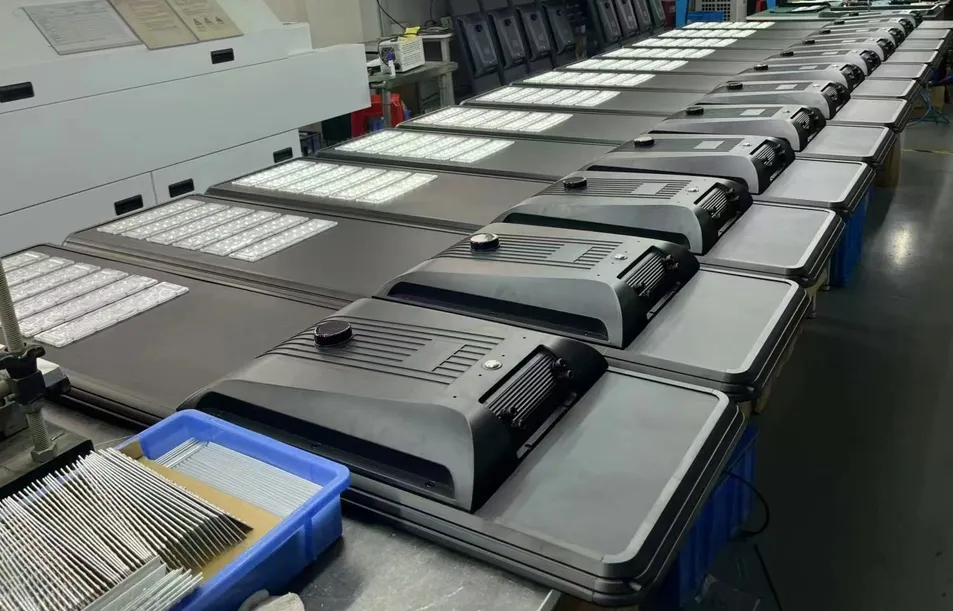

BLACK COLOR RAL 9004

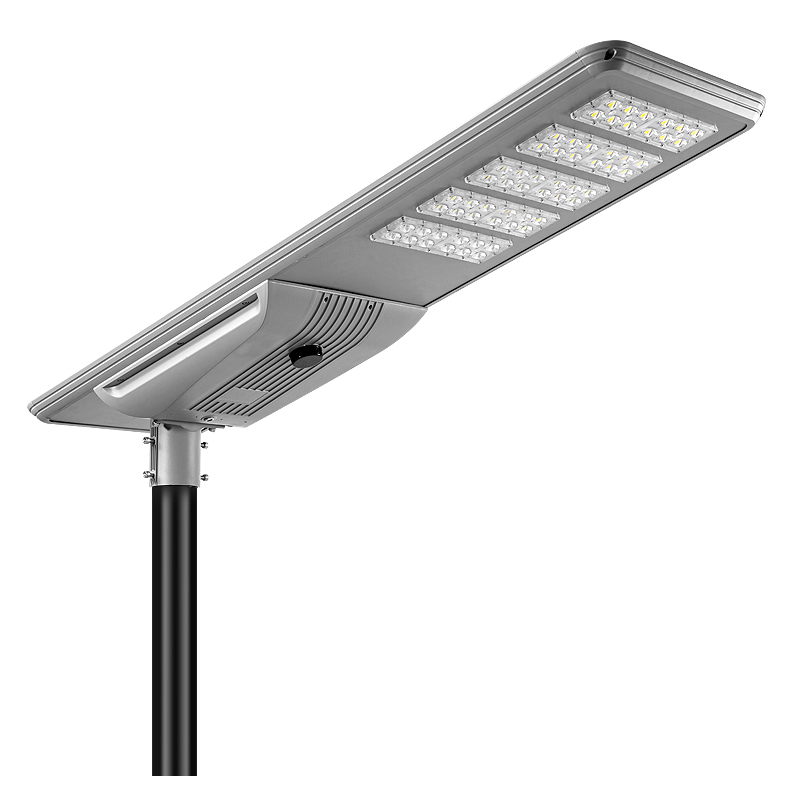

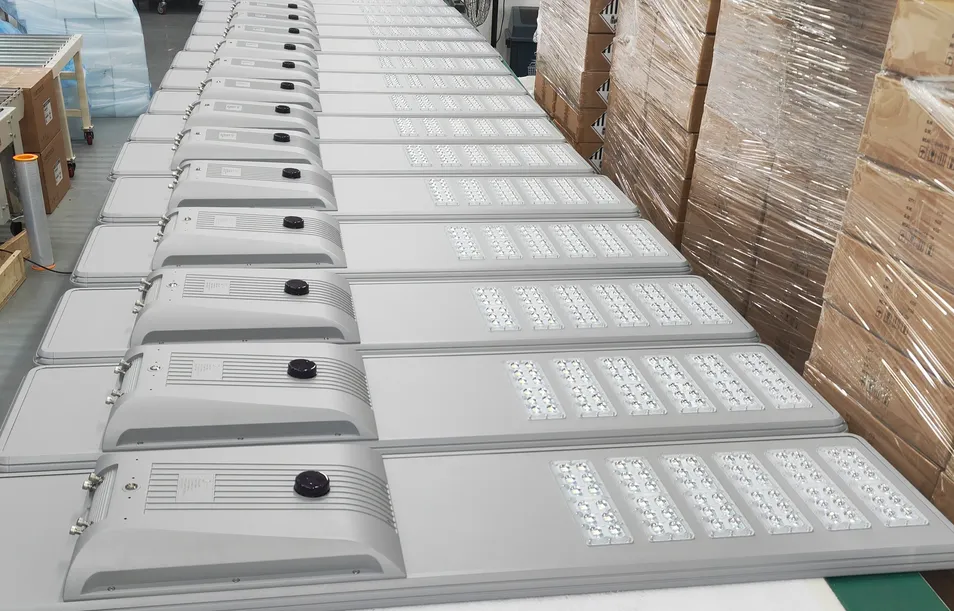

GREY COLOR RAL 9022

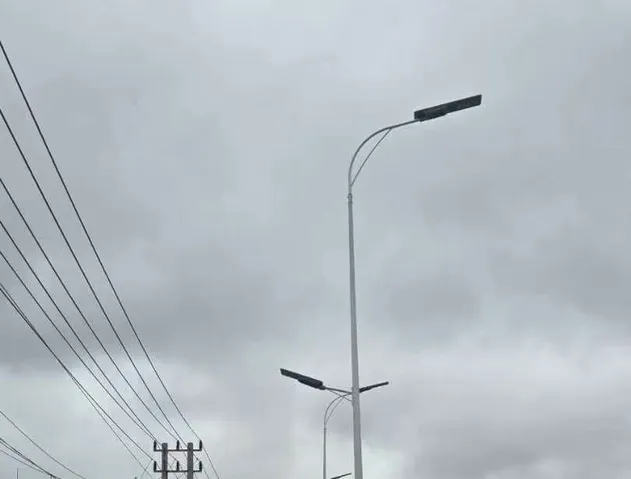

Asia Projects

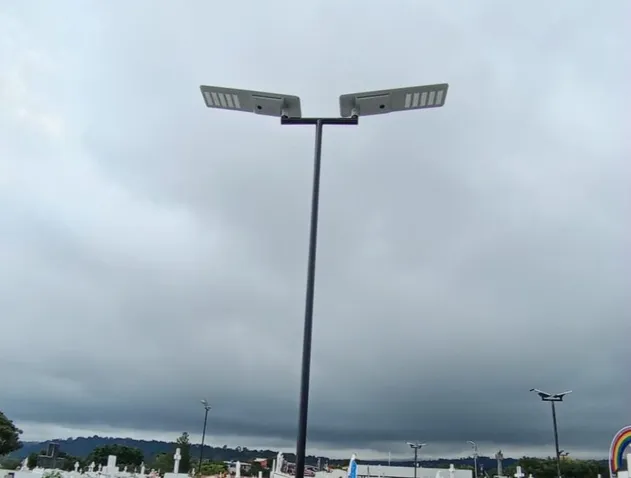

Central America

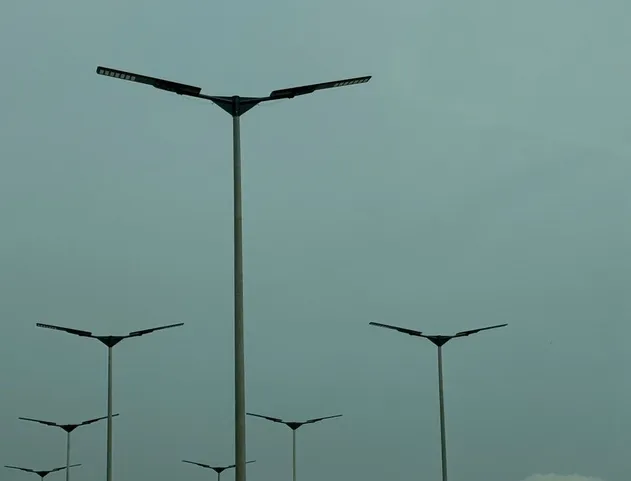

Africa Projects
| MODEL | M25-30-AIO | M25-60-AIO | M25-80-AIO | M25-100-AIO | M25-120-AIO |
| POWER | 30W | 60W | 80W | 100W | 120W |
| LUMINOUS FLUX | 5400LM | 10800LM | 14400LM | 18000LM | 21600LM |
| PV PANEL | 60WP/MONO | 90WP/MONO | 110WP/MONO | 140WP/MONO | 160WP MONO |
| LFP BATTERY | 320WH 3.2V | 384WH 12.8V | 576WH 12.8V | 768WH 12.8V | 960WH 12.8V |
| CONTROLLER | MPPT | MPPT | MPPT | MPPT | MPPT |
| CHARGE TIME | 5 HRS | 5 HRS | 5 HRS | 6 HRS | 6 HRS |
| DISCHARGE TIME | 12 HRS | 12 HRS | 12 HRS | 12 HRS | 12 HRS |
