0.5W LED Sunlight sensor plug-in lawn lamp specification
Key Features
✓
Durable Construction: Made of black ABS engineering plastic shell, anti-UV corrosion resistance, with IP65 protection grade.
✓

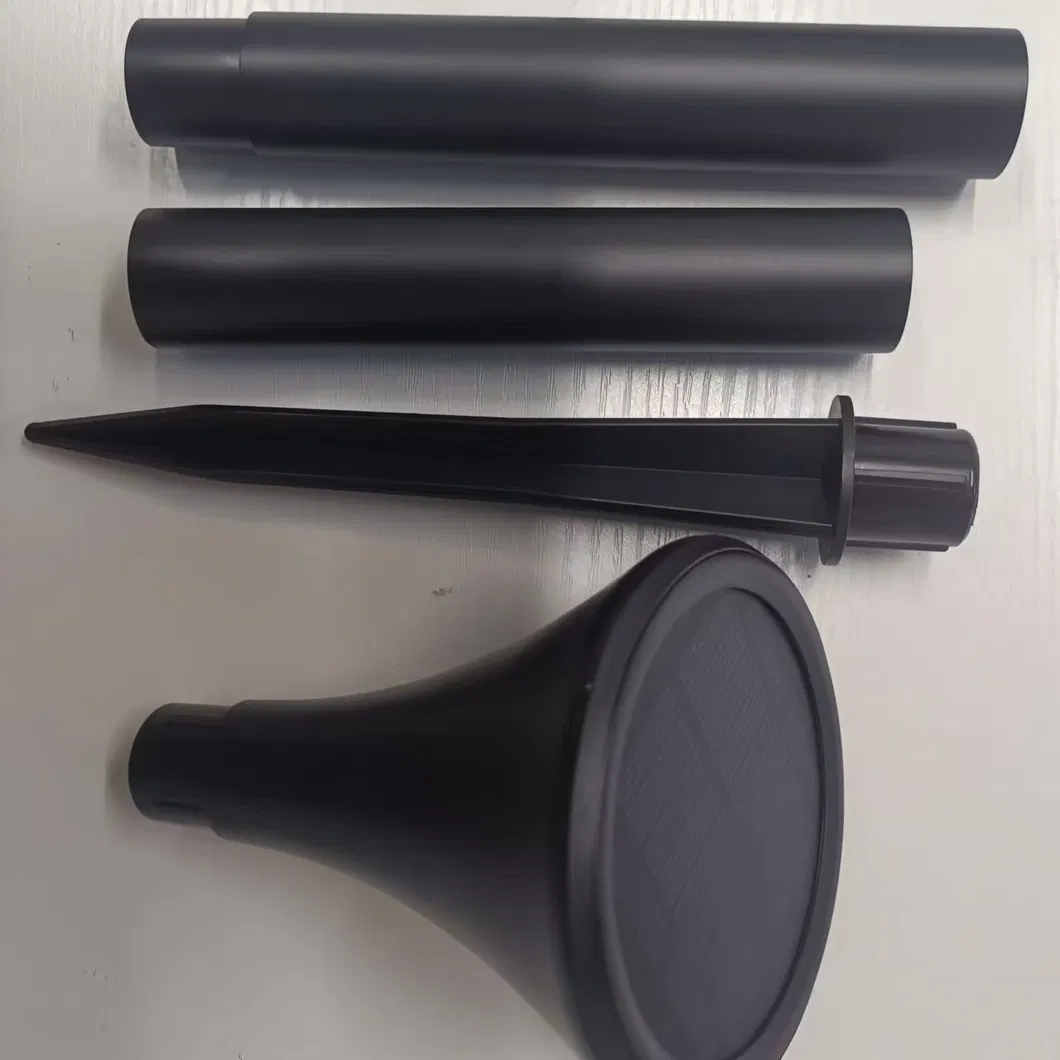

Ergonomic Design: Three-stage pole design for flexible installation height and a scientifically designed handle for a comfortable grip.
✓
High Efficiency Source: Employs "Taiwan Jingyuan" high luminous efficiency beads (≥0.80 index) with no blue light hazard and excellent heat dissipation.
✓
Intelligent Control: Light control induction + human body infrared induction mode. High-light mode triggers when someone passes, converting to dim mode after 22 seconds of inactivity.
✓
Optimized Optics: 120° sensing and concentrating illumination effectively improves light efficiency and visual clarity while protecting eyes.
Technical Parameters
Product Name
LED solar plug-in lawn light
Lithium Battery
18650 / 3.7V / 1500mAh
Model Number
HZ-CP2005-001
Sensing Angle
120°
LED Source
5730 1PCS / 0.5W
Sensing Distance
3-5 meters
Lumen Output
65lm
Delay Time
30 seconds
Color Temp
6000K / 3000K
Working Time
10-12h (Bright) / 100-110h (Weak)
Solar Panel
6V / 0.7W
Material
ABS Wise Black + PC

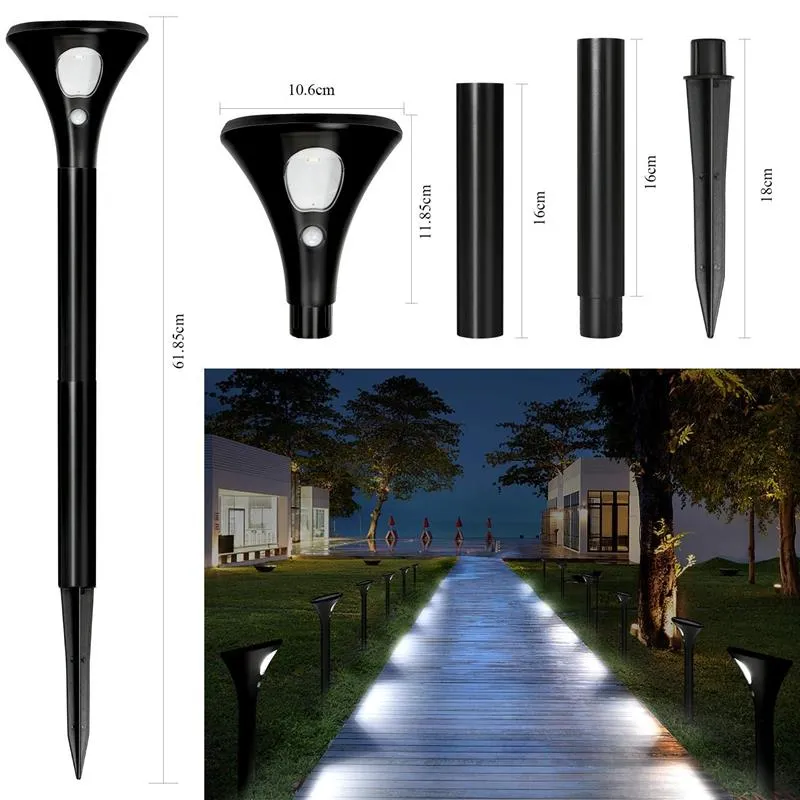

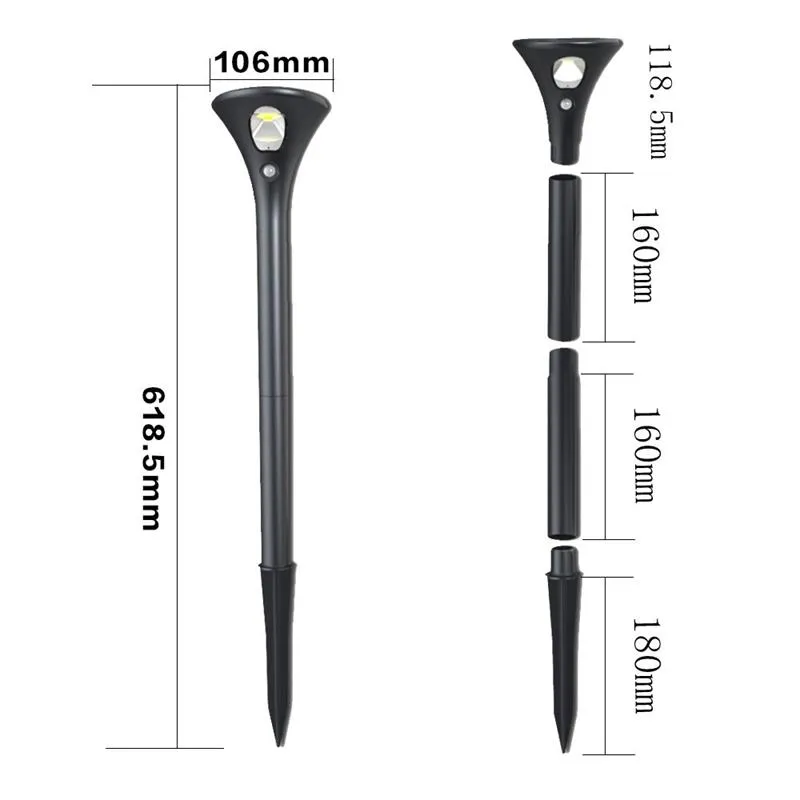

Product Size
106 * 618.5mm
Charging Time
6-8 Hours under normal sunlight
Important Precautions
Battery is not fully charged at the factory; please charge fully before first use.
Red indicator means charging; green indicator means fully charged.
If unused for long periods, charge every 3 months to maintain performance.
Use only the provided USB cable for charging. Avoid heat sources and corrosive environments.
Recommended operating temperature: -40°C to +60°C.
Frequently Asked Questions
What is the main application for this solar lawn lamp?
It is ideal for home garden landscapes, lawn greening, villa gardens, courtyards, street borders, and outdoor park decorations.
How does the intelligent induction mode work?
The lamp features light control and PIR infrared sensing. It charges during the day and automatically activates at night. It triggers a highlight mode when movement is detected within 3-5 meters.
What is the protection level for outdoor weather?
The lamp has an IP65 rating and is made of anti-UV ABS plastic, making it highly resistant to water and corrosion in temperatures from -40°C to +60°C.
How long does the battery last on a full charge?
Under full power, it can operate for 10-12 hours in bright mode and up to 100-110 hours in weak/dim mode.
Is the installation height adjustable?
Yes, the product uses a three-stage pole design, allowing for flexible installation heights to suit different landscape needs.
What is the sensing range of the motion detector?
The ergonomic second light distribution allows for a wide 120° sensing angle with a detection distance of 3 to 5 meters.
