Basic Specifications
Model NO.
ISSL-BRZ-20W-0506JY
Color Temp.
Cool White 6000~6500K
Product Overview

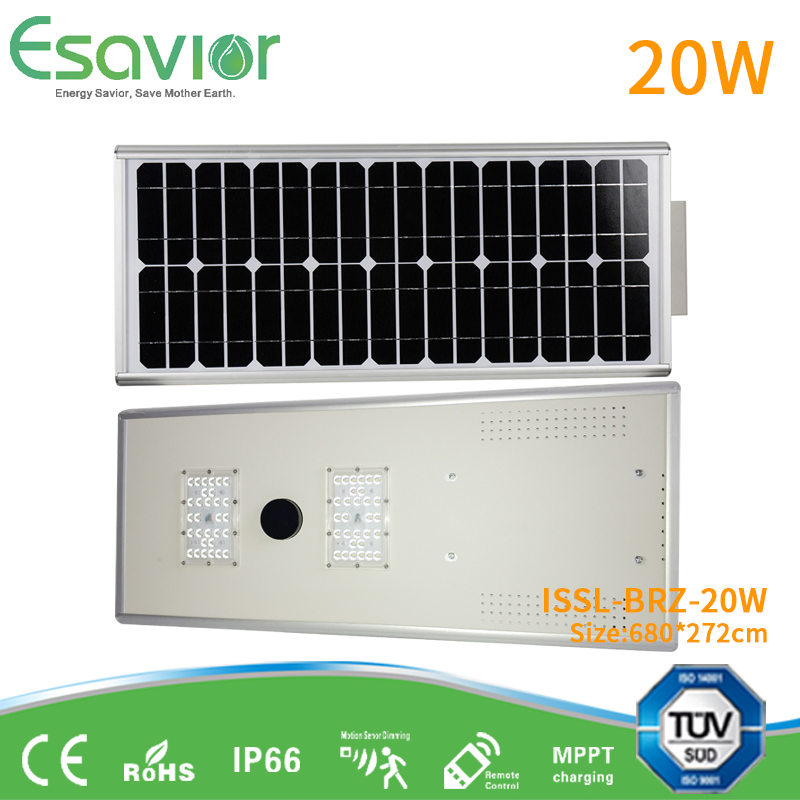

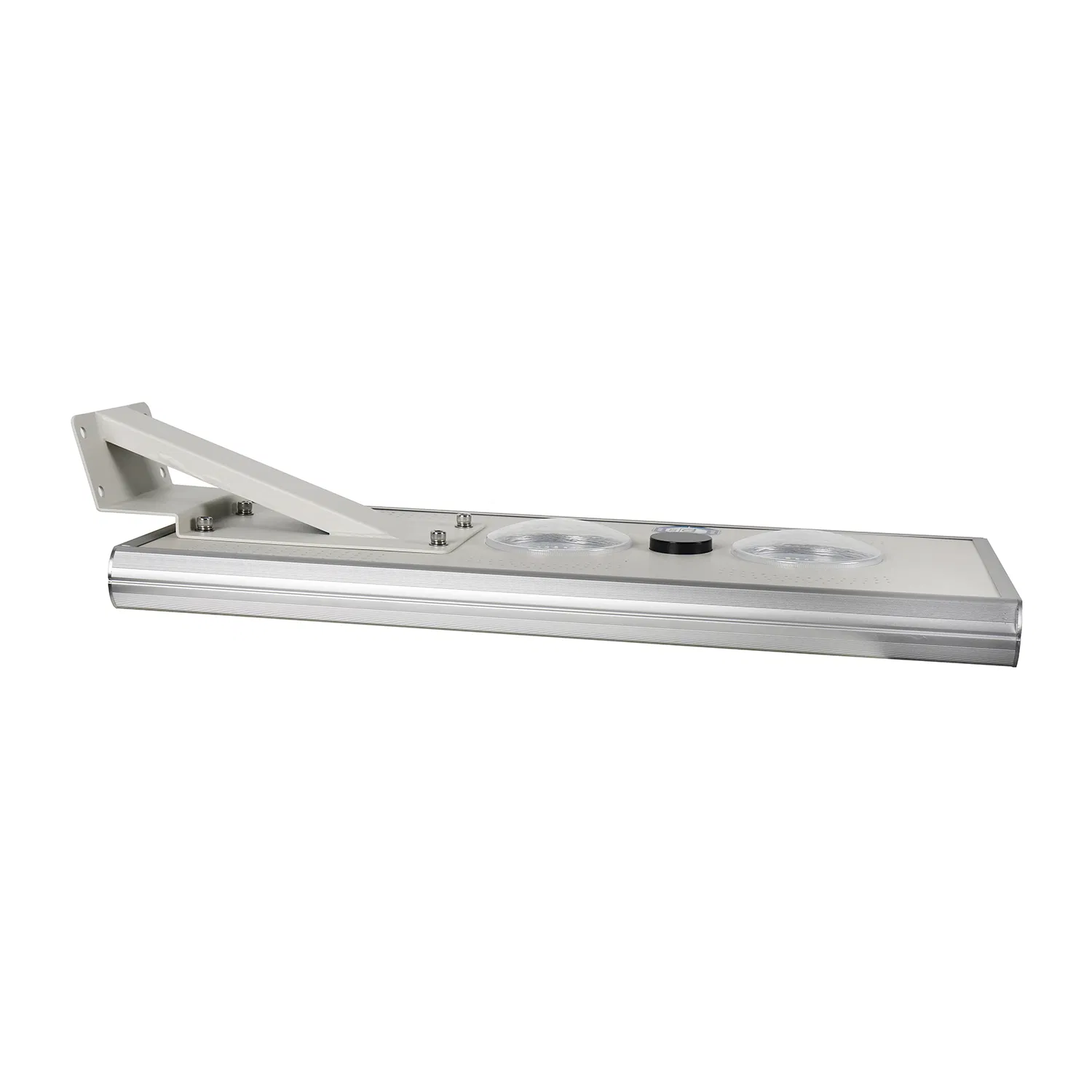

This TUV Ce ISO Certificated 20W Solar LED Street Light is an energy-saving, IP66 waterproof solution designed for mounted path lighting, gardens, and highways. It integrates high-efficiency solar technology with a modern aesthetic.
Technical Parameters
| SUPERIOR Series |
Model: ISSL-BRZ-20W |

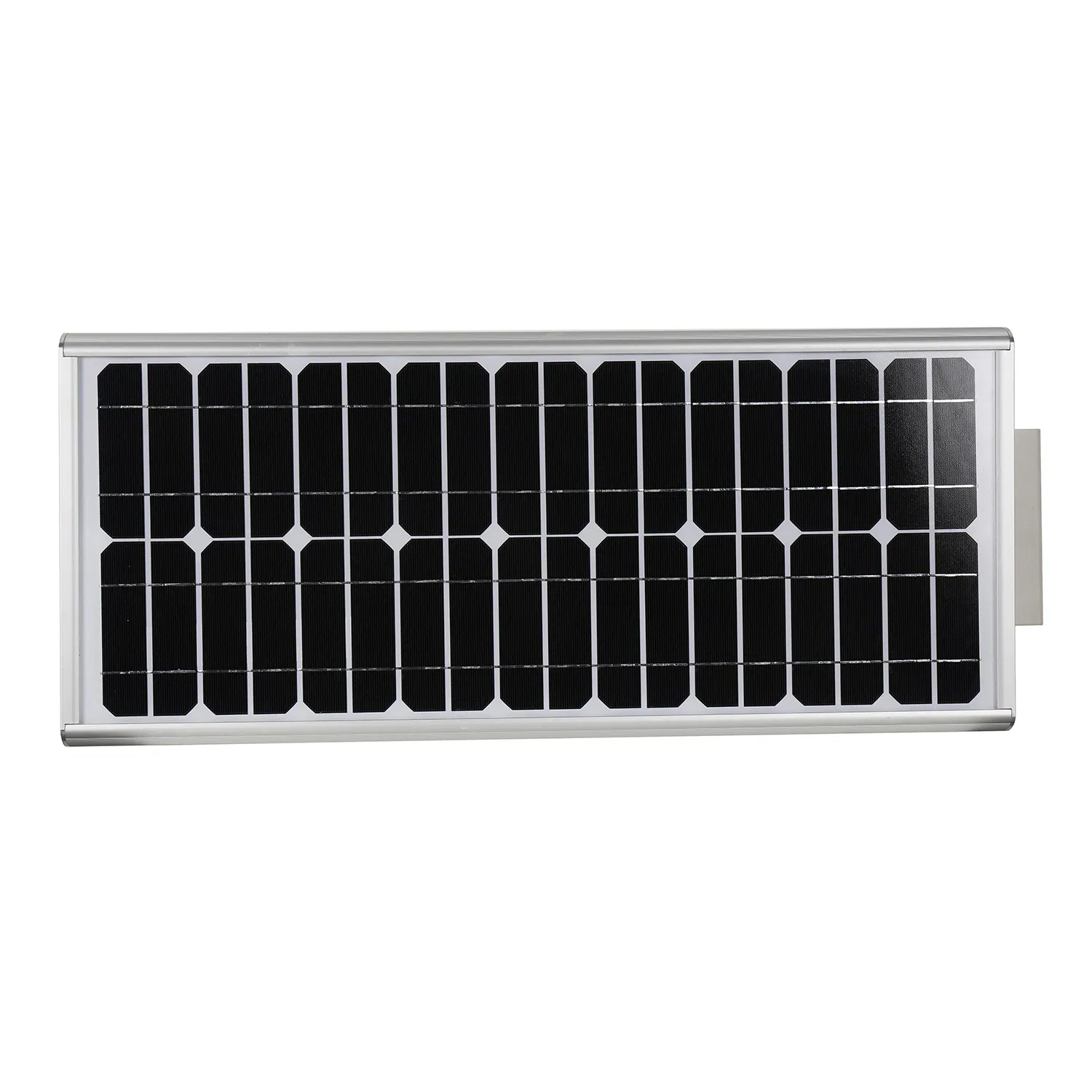

| Solar Panel |
Power |
18V/30Wp (High Efficiency Monocrystalline PV) |
| Life-span |
25 Years |
| Battery |
Capacity/Type |
12.8V/12AH (153.60WH) / LiFePO4 Lithium |
| Life-span |
8+ Years (2,000 Cycles) |
| LED Source |
Lumen |
1800-2000lm (195lm/W Efficiency) |
| Controller |
Type |
MPPT / Waterproof Class: IP68 |
| Sensor |
Method |
Microwave Radar (PIR & Timing Optional) |
| Charging |
Solar Time |
8 Hours |
Product Advantages
- Wireless Application: Integrated solar panel, LED, lithium battery, and micro-controller into one stylish system.
- Micro-Computer Controlled: Perfectly combines light and time control systems for maximum energy efficiency.
- Easy Installation: No cables or power required; can be installed in just 5 minutes.
- Superior Heat Dissipation: Aluminum shell with scientific cooling holes and built-in aluminum block.
- Extreme Light Efficiency: Reaches 195 lm/w, providing a brighter and more uniform lighting area.
- LiFePO4 Battery: Longer 8-year lifespan compared to traditional MnNiCo lithium batteries.
- Modular Design: Standardized production allows for easy component replacement.

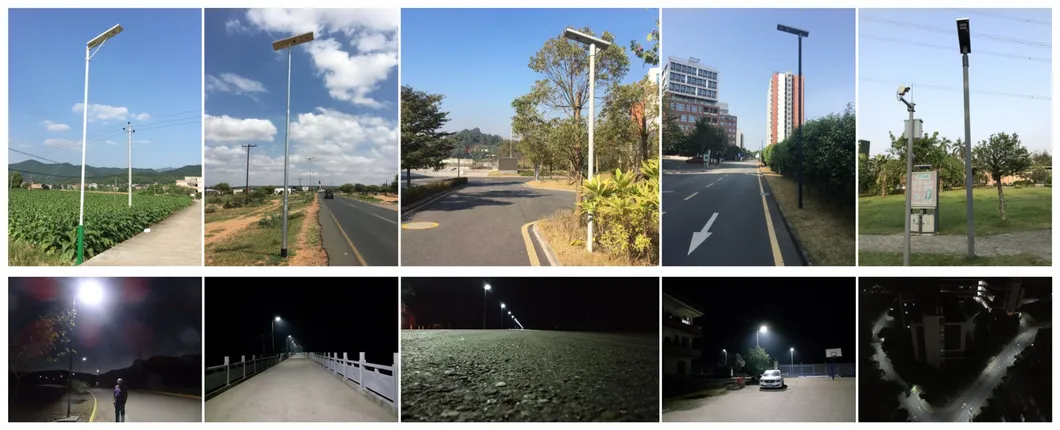

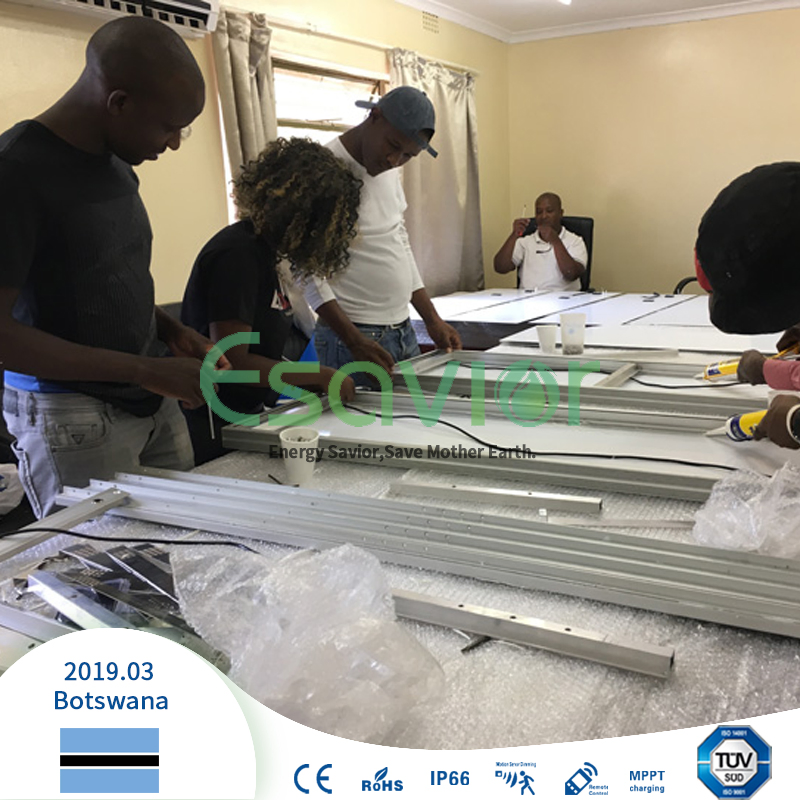

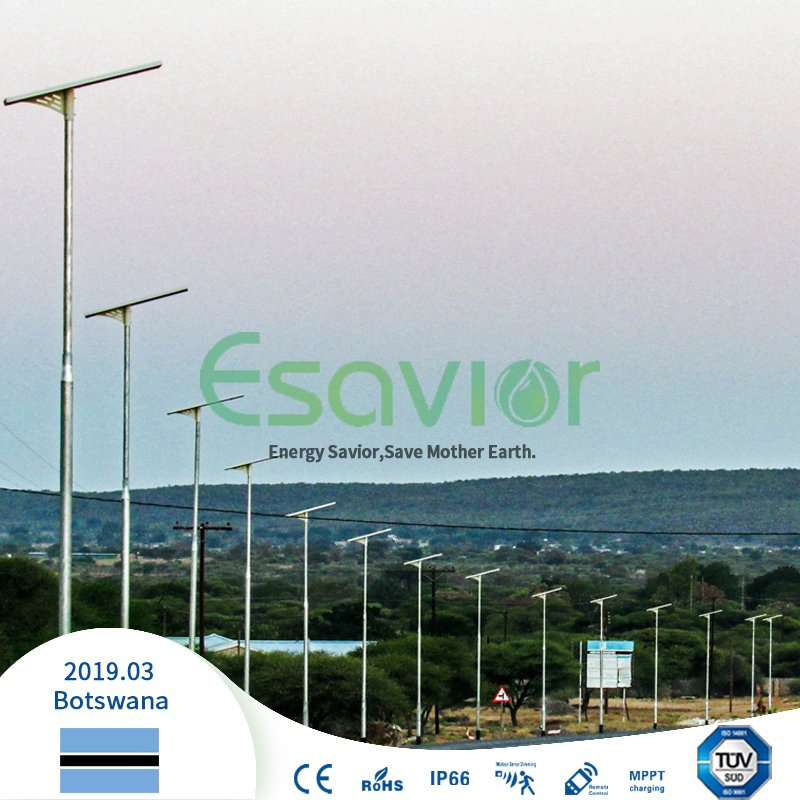

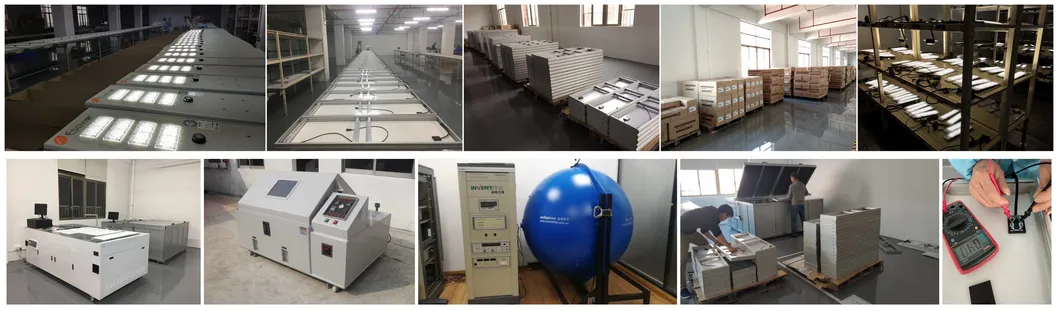

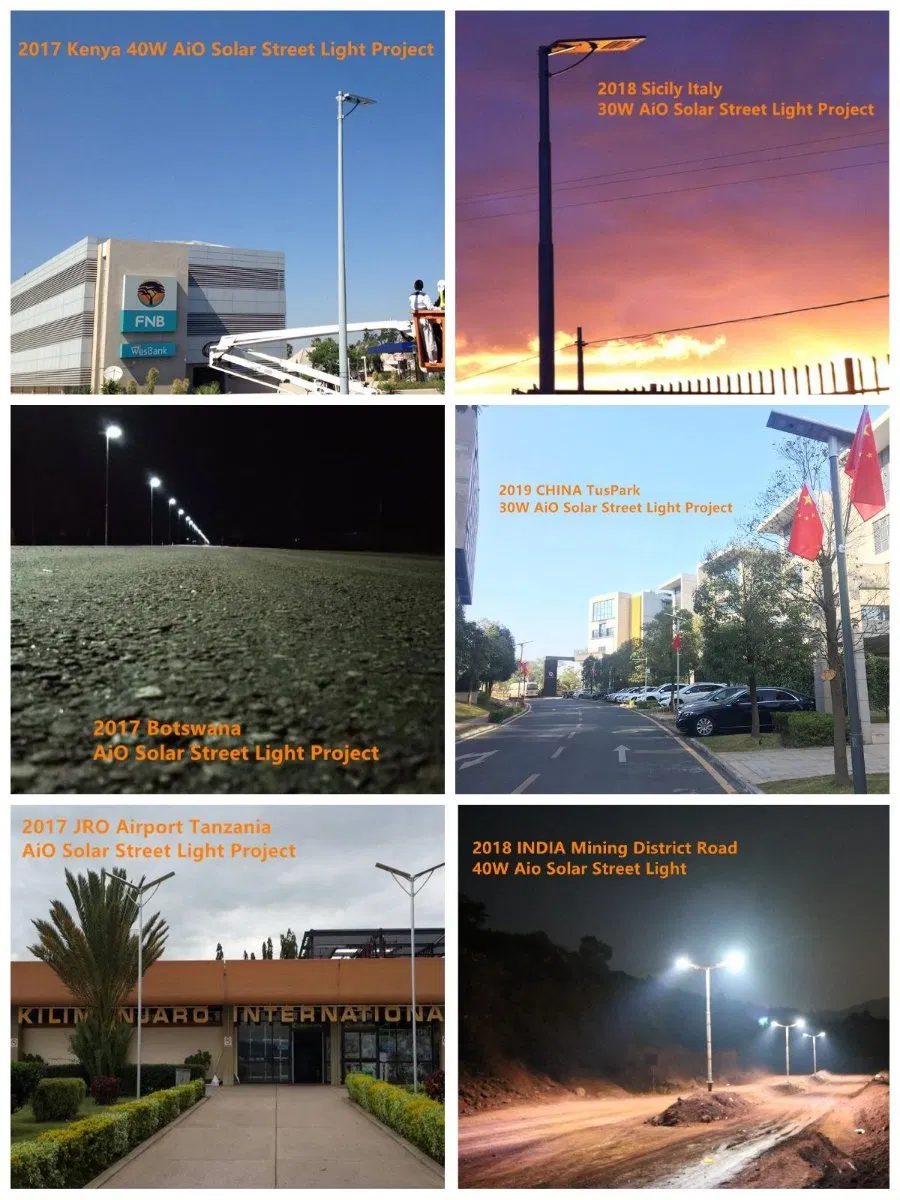

Project & Manufacturing Showcase
Frequently Asked Questions
Does the lamp turn on automatically?
Yes, the system is designed to light on automatically at darkness in all modes except when manually set to "OFF".
What is the expected lead time for orders?
Samples typically take 3 workdays, while batch orders (over 100pcs) take between 7-15 workdays.
Can this light withstand strong wind environments?
Yes. The light uses a solid Aluminum-alloy holder that is Zinc plated for anti-rust corrosion, ensuring stability in high winds.
What is the difference between Motion (Radar) and PIR sensors?
Motion/Radar sensors use high-frequency waves to detect movement up to 10 meters with high sensitivity. PIR sensors detect temperature changes and usually have a 3-5 meter range.
What kind of warranty is provided?
We offer a standard 3 to 5-year warranty on our solar street lighting products.
Is the battery replaceable?
Yes, the modular design ensures that the LiFePO4 battery pack can be easily replaced if needed after its 8+ year lifespan.
